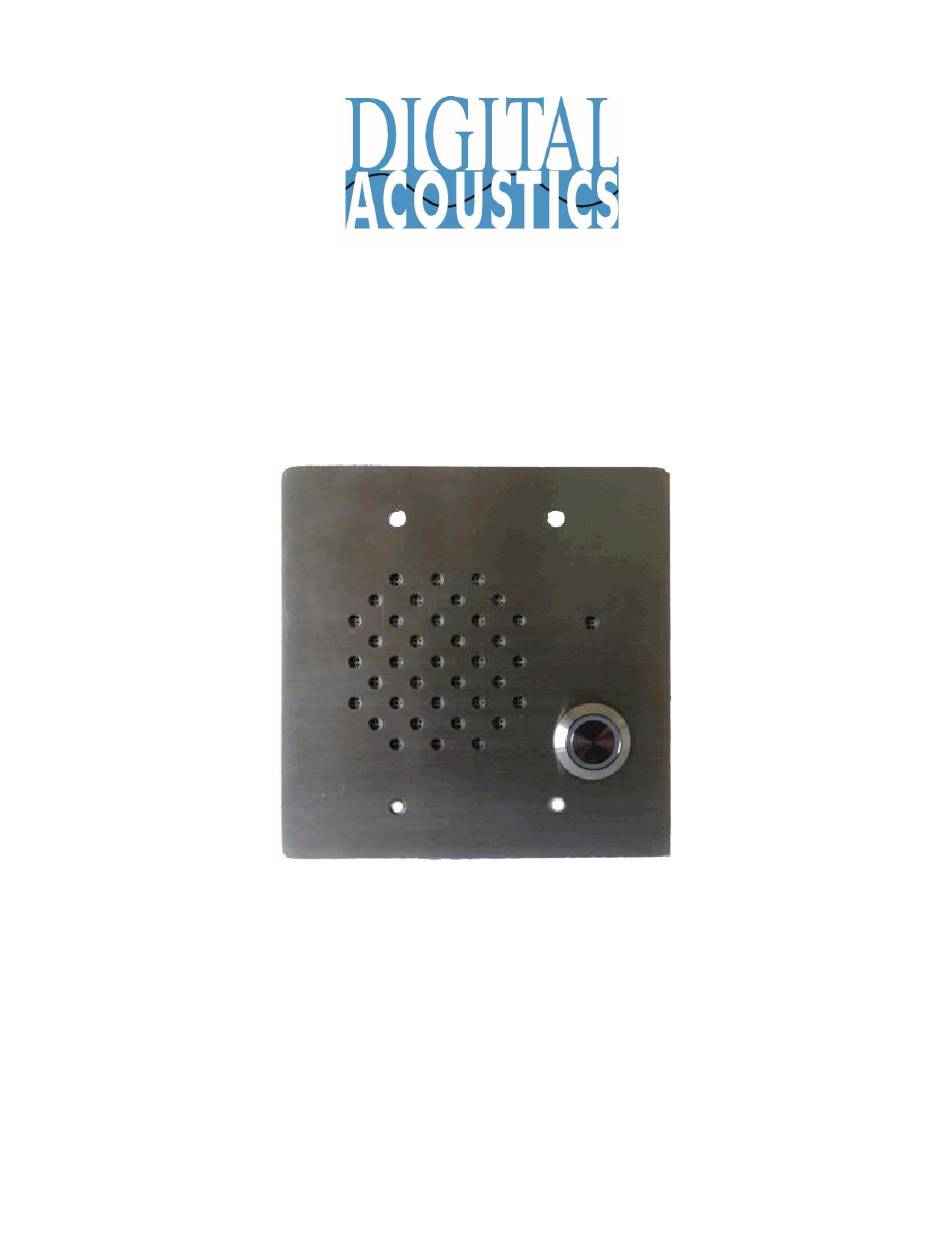

- Page 1 PNL-CIS4-DA PNL-CIS4-M-DA PNL-CIS4-M-L-DA Getting Started Guide Page 1 of 3...
- Page 2 Introduction The PNL-CIS4-DA, PNL-CIS4-M-DA and PNL-CIS4-M-L-DA are vandal resistant analog call station that incorporate the following options: Model Speaker Call Button Microphone LED Call Button PNL-CIS4-DA PNL-CIS4-M-DA PNL-CIS4-M-L-DA Specifications • 12 Gauge stainless steel Call Panel • Integrated 8 Ohm Speaker – waterproof cone •...
- Page 3 J3-5 SNSR/3.3V 3.3V Current Limited - Polarity Independent LED Wire J3-6 GND IP7 and Digital Acoustics® are trademarks of Digital Acoustics LLC. Other trademarks are the property of their respective owners. PNL-CIS4-x - 2021-02-08 - All Rights Reserved ©2018 www.digitalacoustics.com/support...
