Introduction

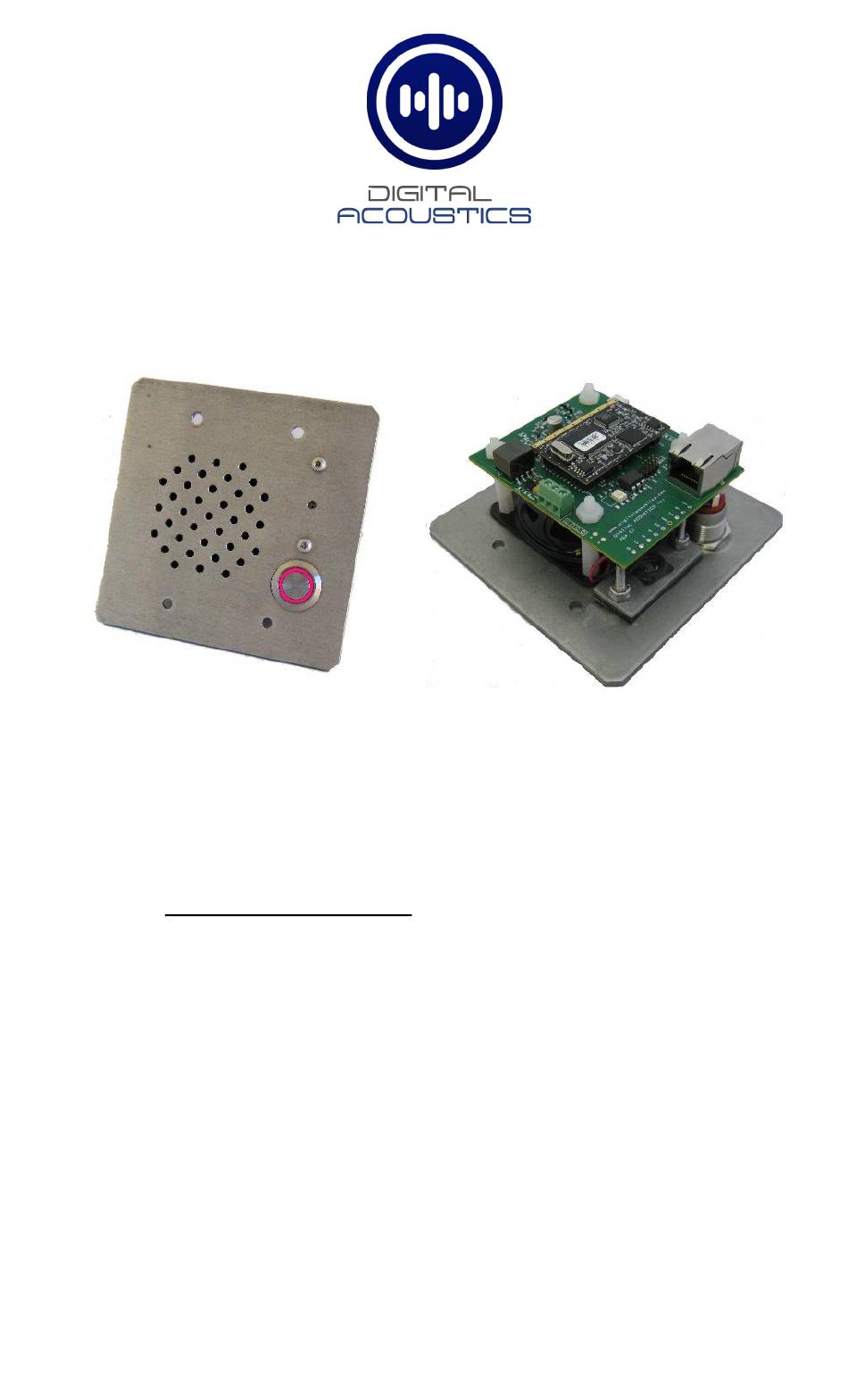

The INT-IP-2GANG is a PoE powered IP Intercom Call Station that fits in a
standard 2-gang box with a minimum depth of 2". Suitable for installation
indoors or outdoors in damp locations.
The INT-IP-2GANG must be configured using the TalkMaster Admin
Console. This Getting Started Guide covers basic hardware installation and
software configuration of the INT-IP-2GANG.
Specifications
•
12 Gauge Stainless Steel Call Station panel
•
Integrated Microphone - water resistant
•
Integrated Speaker – waterproof cone
•
Security screens protect Microphone and Speaker
•
Integrated vandal resistant Call button with LED
•
Integrated Relay for door/gate activation
•
PoE (802.3af)
•
Includes four stainless steel security screws (T10)
•
User selectable Full or Half duplex operation
INT-IP-2GANG
Getting Started Guide
