Introduction

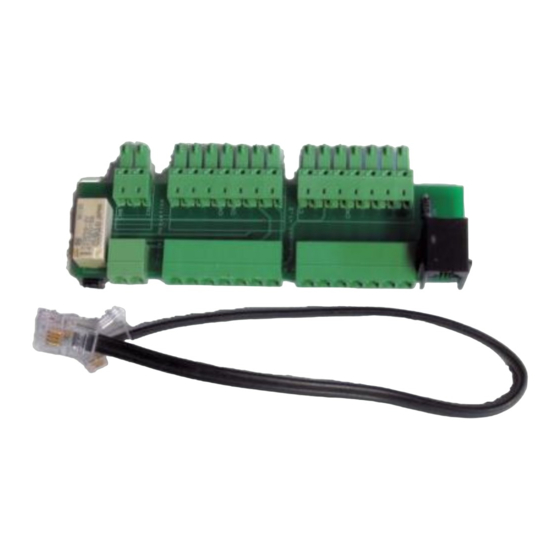

The IP7-MSR-BRD is an analog add-on board for the IP7-SE8 IP Intercom
that allows an 8 Ohm speaker to be used as both a Microphone and
Speaker. The IP7's onboard relay is used to do the switching and is not
available.
The IP7-SE8 will be configured so that its internal Relay is activated
whenever the Microphone is engaged. This will switch the Speaker outputs
to the Microphone inputs so that the external Speaker can act as a
microphone.
