Digital Acoustics EDB-110 User Manual

Ed/es series ii3 ip intercom

Advertisement

ii3 IP Intercom
Users' Guide
Model ED series
Model ES series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDB-110 and is the answer not in the manual?

Questions and answers

Summary of Contents for Digital Acoustics EDB-110

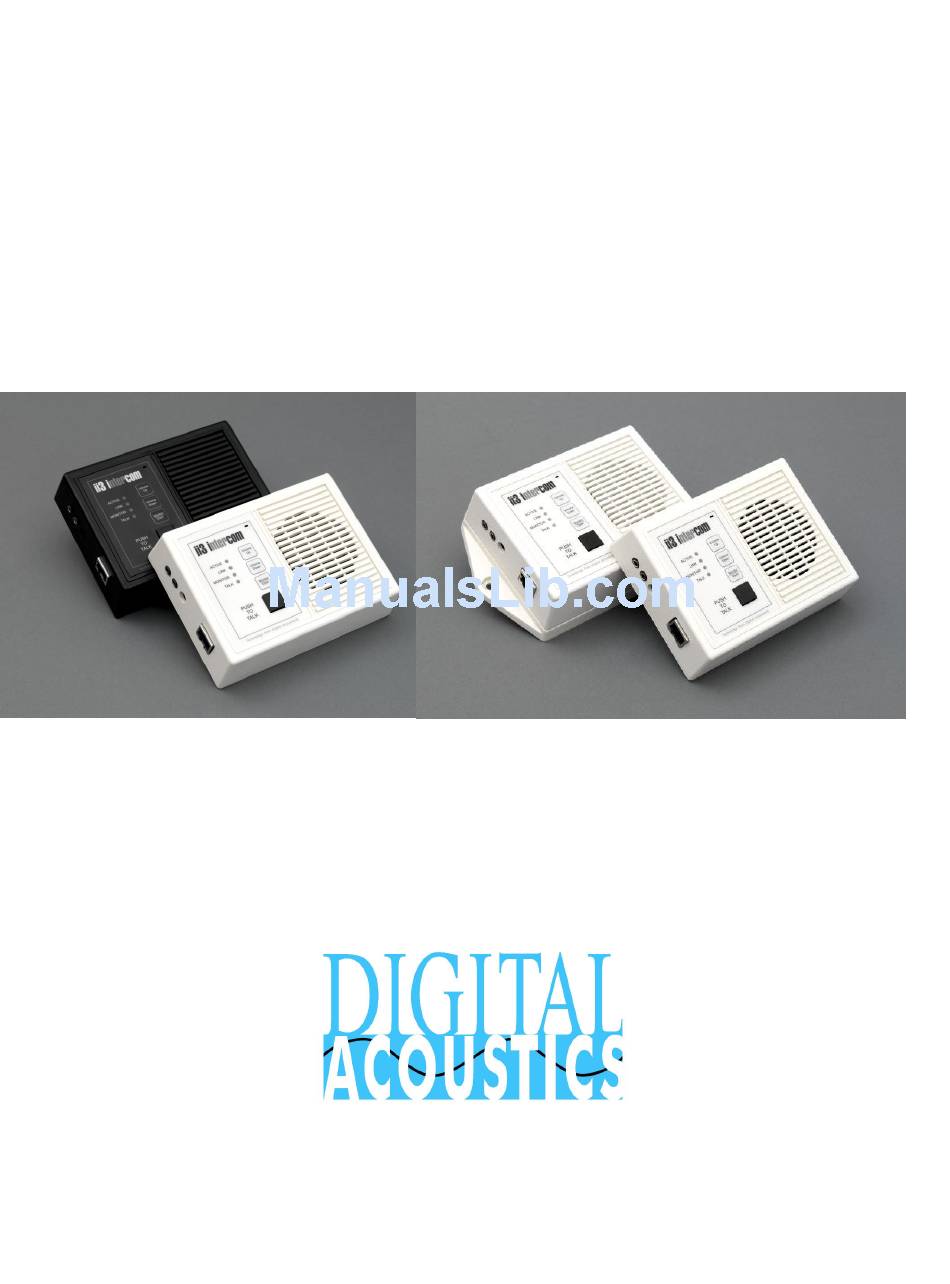

  • Page 1 ii3 IP Intercom Users′ Guide Model ED series Model ES series...
  • Page 2 This page intentionally left blank...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS OVERVIEW ................4 SPECIFICATIONS..............5 INTERFACE CONNECTIONS ............6 INTERFACE CONNECTION DETAIL .........6 CONFIGURATION AND IP ADDRESSES ........7 TYPICAL SYSTEM CONFIGURATIONS ........8 INTEGRATED SWITCHES............9 LED INDICATORS..............10 EXTERNAL MICROPHONE SELECTION ........11 EXTERNAL SPEAKER CONNECTIONS.........11 NETWORK WIRING USING CAT5...........11 SOFTWARE SUPPORT ............12 FIRMWARE OS UPGRADES ...........15 TROUBLESHOOTING..............14 INTEGRATED 2-PORT SWITCH OPTION .......13...
  • Page 4: Overview

    Field upgradeable OS using internal Flash memory TalkMaster™ host software access and controls ii3 clients The ED desktop series includes the following models: • EDB-110/220 - Externally powered black PVC desktop • EDBx-110/220 - Externally powered w/2-Port switch black PVC desktop •...
  • Page 5: Specifications

    PECIFICATIONS Items Specification TCP, UDP, IP, ARP, ICMP, Ethernet Hardware Protocols 10/100 Base-T Ethernet (Auto Network Interface detection) Command protocols Proprietary Audio Rate 64kbs Audio Resolution PCM-8bit and uLAW-16 bit 8bit Audio Sample Rate 8 kHz (Voice band) Audio Buffers 4KB TX and RX Internal Amplifier 2w Max @ 4 ohms...
  • Page 6: Interface Connections

    NTERFACE CONNECTIONS Internal Microphone Internal Speaker External Microphone Input Audio Out Power LAN 10/100 Version shown Ii3-EDW RJ-45 Talk Button NTERFACE ONNECTION ETAIL EXTERNAL CONNECTIONS TCP, UDP, IP, ARP, ICMP, 10/100 Base-T Ethernet RJ-45 10/100 (Auto detection) MAC External Microphone Input. Use of this jack automatically disconnects the onboard electret microphone.
  • Page 7: Configuration And Ip Addresses

    IP A ONFIGURATION AND DDRESSES TalkMaster™ LE software is included with the purchase of any ii3 IP Intercom. Access www.digitalacoustics.com/ii3 for downloads and more information. Quick reference: 1. Install and start TalkMaster™ software 2. To configure your intercoms, select menu option Admin Enable Admin (default password is: admin) 3.
  • Page 8: Typical System Configurations

    YPICAL SYSTEM CONFIGURATIONS PC-SERVER MODE Server PC with TalkMaster™ software connected to Intercom Client array DIRECT MODE One ii3 Intercom configured as 'Server' , connected to a another as 'Client' - 8 -...
  • Page 9: Integrated Switches

    NTEGRATED SWITCHES Talk Push to Talk. Turns on local microphone. In 'Client' mode, Monitor sets 'Talk' ON, as if the Talk • button is being held down for hands free speaking. In 'Server' mode quickly pressing Monitor turns on listen •...
  • Page 10: Led Indicators

    LED INDICATORS The four LEDs marked Active, Link, Monitor/Open and Talk can provide the following diagnostic information: Monitor/ Operational Mode Active Link Talk Open Normal operational mode. TalkMaster is active. Intercom can communicate. LAN connection is inactive. The RJ45 may be unplugged, or the cable may FLASH be defective.
  • Page 11: External Microphone Selection

    XTERNAL MICROPHONE SELECTION ii3 supports high quality voiceband audio. Integrated AGC amplifiers support a wide range of microphone inputs and low cost electret microphones ($3usd) will have similar intelligibility as expensive "professional" microphones ($10-$50usd). Microphones mounted externally should be in a vibration and moisture free environment. XTERNAL SPEAKER CONNECTIONS A 3.5mm Audio Out jack is provided for headphones, external speaker or an amplifier.
  • Page 12: Software Support

    TalkMaster™, making it easy to write TCP/IP server software for Digital Acoustics' ii3 Intercom Series. iTalk/X is available as an ActiveX control for Visual Basic and Visual C++ applications, or and other GUIs that support ActiveX.
  • Page 13: Integrated 2-Port Switch Option

    NTEGRATED PORT SWITCH OPTION An integrated 2-port switch is an option available on all models of the ED and ES series. The 2-port switch allows connection of an additional IP device from a single network drop. Important ii3 intercoms with the integrated 2 port switch are supplied with a regulated 5vdc (750mA) power supply.
  • Page 14: Troubleshooting

    PTION A PoE (Power over Ethernet - 802.3af compatible) option is available on all models in the ED and ES lines. • Each ED or ES intercom will draw 7 Watts from your network switch or injector • On models with the PoE and integrated 2-port switch options, PoE does not pass through to other devices connected to the 2 port •...
  • Page 15: Firmware Os Upgrades

    IRMWARE UPGRADES All ii3™ intercoms use internal Flash memory. Operating system (OS) and firmware may be upgraded to include new revisions or custom options. TalkMaster™ software is required to enable and program the Flash memory upgrade feature. ECHNICAL SUPPORT Information online www.digitalacoustics.com/ii3 Email esupport@digitalacoustics.com Telephone...
  • Page 16 Design and specifications are subject to change without notice. Digital Acoustics® and TalkMaster™ are trademarks of Digital Acoustics Corporation, all other marks used are properties of their respective owners. Digital Acoustics' product designs are packaged by leading manufacturers around the world.
