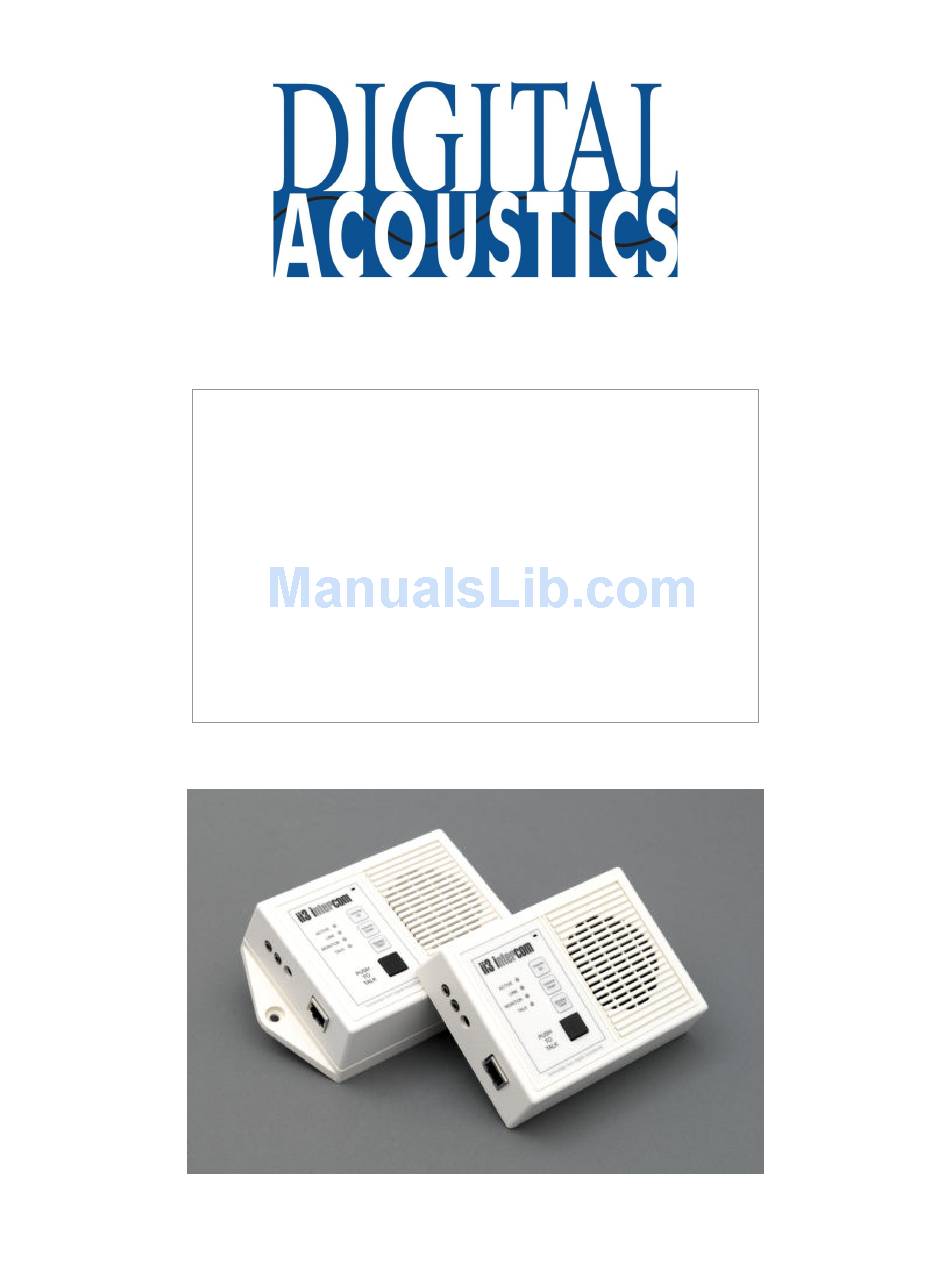

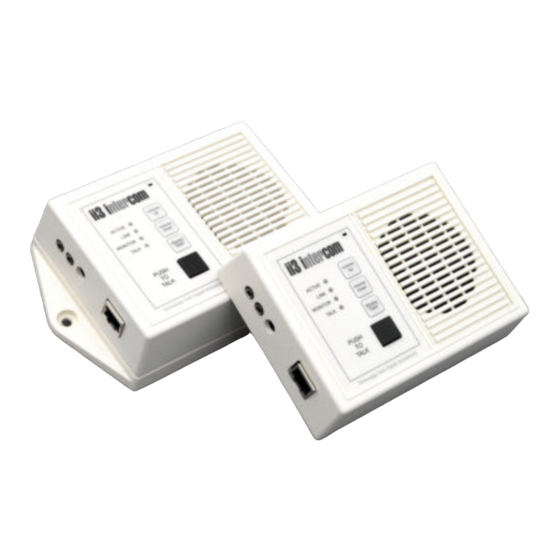

- Page 1 IP7 Desktop Intercom Reference Manual...
- Page 2 This page left blank...
-
Page 3: Table Of Contents
Table of Contents Overview ..................1 Available Models ................2 Specifications .................2 IP7 Desktop Layout ................3 LED Indicators ................5 Connecting to an Ethernet Network ..........6 Connecting Power ................6 External Power ..................6 PoE ....................6 Connecting Mic In or Audio Out ............6 Mic In....................6 Audio Out ..................6... -
Page 4: Overview
Overview The Digital Acoustics IP7 Desktop models are IP (Internet Protocol) based Intercoms that provide the functional audio equivalent of the basic "push to talk" intercom. Simply power it up, connect it to a 10/100 Ethernet switch, configure its IP address information and communicate to a PC running TalkMaster™... -
Page 5: Available Models
Available Models IP7-EDW-110 – White Desktop with 110 power supply IP7-EDW-220 – White Desktop with 220 power supply IP7-EDW-PoE – White Desktop with PoE option IP7-ESW-110 – White Surface Mount with 110 power supply IP7-ESW-220 – White Surface Mount with 220 IP7-ESW-PoE –... -
Page 6: Ip7 Desktop Layout
IP7 Desktop Layout Page 3 of 3... -
Page 7: Connections And Controls
10/100 Auto sensing, Auto MDIX Refer to the “Direct Mode Configuration” Application Note for configuring two Intercoms to operate without the need of a PC. Available on the TalkMaster Installation CD or the Digital Acoustics’ Website Page 4 of 4... -
Page 8: Led Indicators
LED Indicators Intercom LEDs There are four LEDs present on the front of the product. These LEDs indicate status of the unit. Description Active Indicates whether the unit has connected to a Server Link Indicates whether the unit has a valid network Connection Monitor Indicates whether the remote end is being listened to Talk... -
Page 9: Connecting To An Ethernet Network
• Mono Jack required Setting Volume Levels The IP7 Desktop supports seven volume levels for the internal speaker. • Press the “Volume Up” or “Volume Down“ button one time to increase or decrease the speaker volume • Pressing the “Volume Up” or “Volume Down “ button seven times sets the unit at its highest or lowest setting •... -
Page 10: Software Configuration
IP Configuration Refer to the software manuals for instructions on setting the IP address information. Intercom Options The IP7 Desktop uses the internal Relay and Sensor. Do not make any configuration changes to either of these. Page 7 of 7... -
Page 11: Physical Dimensions
Physical Dimensions The IP7 Desktop Dimensions are as follows: Dimensions for the optional Surface Mount bottom: Environmental The IP7 Desktop is designed to operate indoors. Page 8 of 8... -
Page 12: Troubleshooting
Troubleshooting Always refer the LED Indicator table when troubleshooting. The unit can be reset to factory defaults by following this procedure: Reset to Factory Defaults The IP Address information and all Intercom options can be reset to factory defaults by the following procedure: •... - Page 13 Index 2.1mm Power Jack ....6 LED Status ......5 Audio Out ......4, 6 LEDs........5 Dimensions......8 Mic In .......4, 6 Direct Mode Server ..... 4 Monitor/Open ....... 4 Ethernet 10/100 ....6 PoE ........6 Factory Default ..... 9 Power ........
- Page 14 Design and specification are subject to change without notice. Digital Acoustics®, IP7™, ii3™ and TalkMaster™ are trademarks of Digital Acoustics, LLC. I2C is a registered trademark of NXP Semiconductors, Inc. All other marks used are properties of their respective owners.
