Summary of Contents for BluDot Modu-licious #4

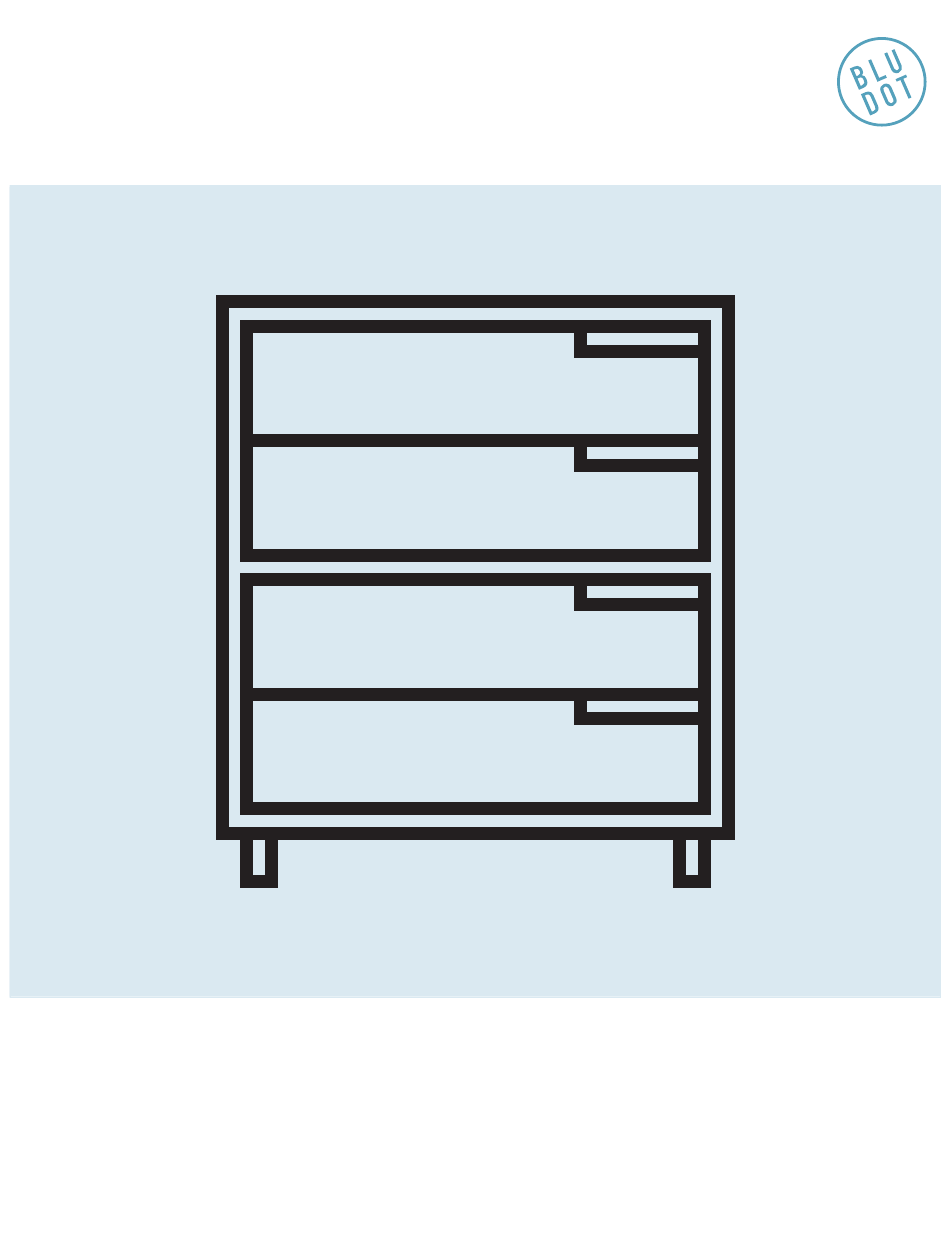

- Page 1 Y O U W A N T C H O I C E S , W E G O T C H O I C E S . N E E D A H A N D ? Contact us at service@bludot.com or Drawers and doors are your canvas with the award-winning 844.425.8368 for assistance.
-
Page 2: Qty 2 Qty
Parts & Hardware Pt. 5001 Pt. 1023 Pt. 4005 Pt. 8018 Pt. 5005 Pt. 5002 Pt. 1218 Pt. 1217 8042 Anti-tip Strap Pt. 8046 Pt. 8042 1 | 8 4 4 . 4 2 5 . 8 3 6 8 M O D U - L I C I O U S # 4... -
Page 3: Qty
Parts & Hardware Foot Drawer Slide Stretcher Bottom Panel Top Panel Drawer Center Panel Side Panel Back Panel A S S E M B L Y N O T E S S E R V I C E @ B L U D O T . C O M | 2... - Page 4 How to use the cam lock system Note direction of cam arrow. Turn cam clockwise 1/2 turn or until tight. Note direction of cam arrow. 3 | 8 4 4 . 4 2 5 . 8 3 6 8 M O D U - L I C I O U S # 4...
- Page 5 Step 01 A S S E M B L E B A S E . Using the stretcher and feet assemble the base as shown. Refer to page 3 on how to use the cam lock system. PT. 5 0 01 X 2 PT.
- Page 6 Step 02 AT TA C H B O T T O M PA N E L . Attach the bottom panel to the base using the provided hardware as shown. Refer to page 3 on how to use th cam lock system. Bottom Panel PT.
- Page 7 Step 03 AT TA C H D R A W E R S L I D E S . Right Side Panel Attach drawer slides to side panel as shown using the provided hardware. Repeat for left side panel. PT. 10 23 X 1 6 A S S E M B L Y N O T E S S E R V I C E @ B L U D O T .
- Page 8 Step 04 B E G I N A S S E M B L I N G C A S E . Attach side panels to center panel as shown using the provided hardware. Refer to page 3 on how to use the cam lock system. Side Panel Center Panel Side Panel...
- Page 9 Step 05 I N S E R T B A C K PA N E L S . Add rubber gromates to each panel as shown. Insert panels into grooves in case. PT. 8 01 8 X 4 A S S E M B L Y N O T E S S E R V I C E @ B L U D O T .
- Page 10 Step 06 F I N S I H A S S E M B L I N G C A S E . Finish assembling the case by attaching the top and bottom panels as shown using the provided hardware. Refer to page 3 on how to use the cam lock system.
- Page 11 Step 07 I N S TA L L D R A W E R S . To install the drawers extend drawer slides out from case, align with drawer slides as shown, and slide drawer in. Be sure to push until drawer is completely closed and engaged.
- Page 12 Step 08 AT TA C H A N T I -T I P B R A C K E T T O T H E W A L L . Install anti-tip bracket to wall stud 1-inch below case top panel height. 1”...
-
Page 13: Back Panel
Step 09 I N S TA L L A N T I -T I P B R A C K E T T O C A S E . Bracket must be installed to top panel of case. In order to prevent damage, it is recommended that 3/32”... - Page 14 Step 10 S E C U R E T H E C A S E . Install and tighten the strap prior to using the product. 8042 Anti-tip Strap PT. 8 0 42 X 1 13 | 8 4 4 . 4 2 5 . 8 3 6 8 M O D U - L I C I O U S # 4...
- Page 15 Additional Information TO R E M OV E DR AW ERS Pull lever up on the right side and push down on the left side of the drawer slide. With levers engaged pull drawer out. TO A DJ U ST DR AW E R FRONTS Loosen the acorn nuts, adjust drawer front, re-tighten acorn nuts.
- Page 16 Additional Information C LEAN Clean with a slightly damp, soft cloth. To remove dirt and fingerprints, use a quality cleaner formulate for wood furniture. Wipe completely dry with a soft cloth in the direction of the wood grain. B L U D O T D E S I G N & M A N U F A C T U R I N G , I N C . D E S I G N E D I N M I N N E A P O L I S , M N...
