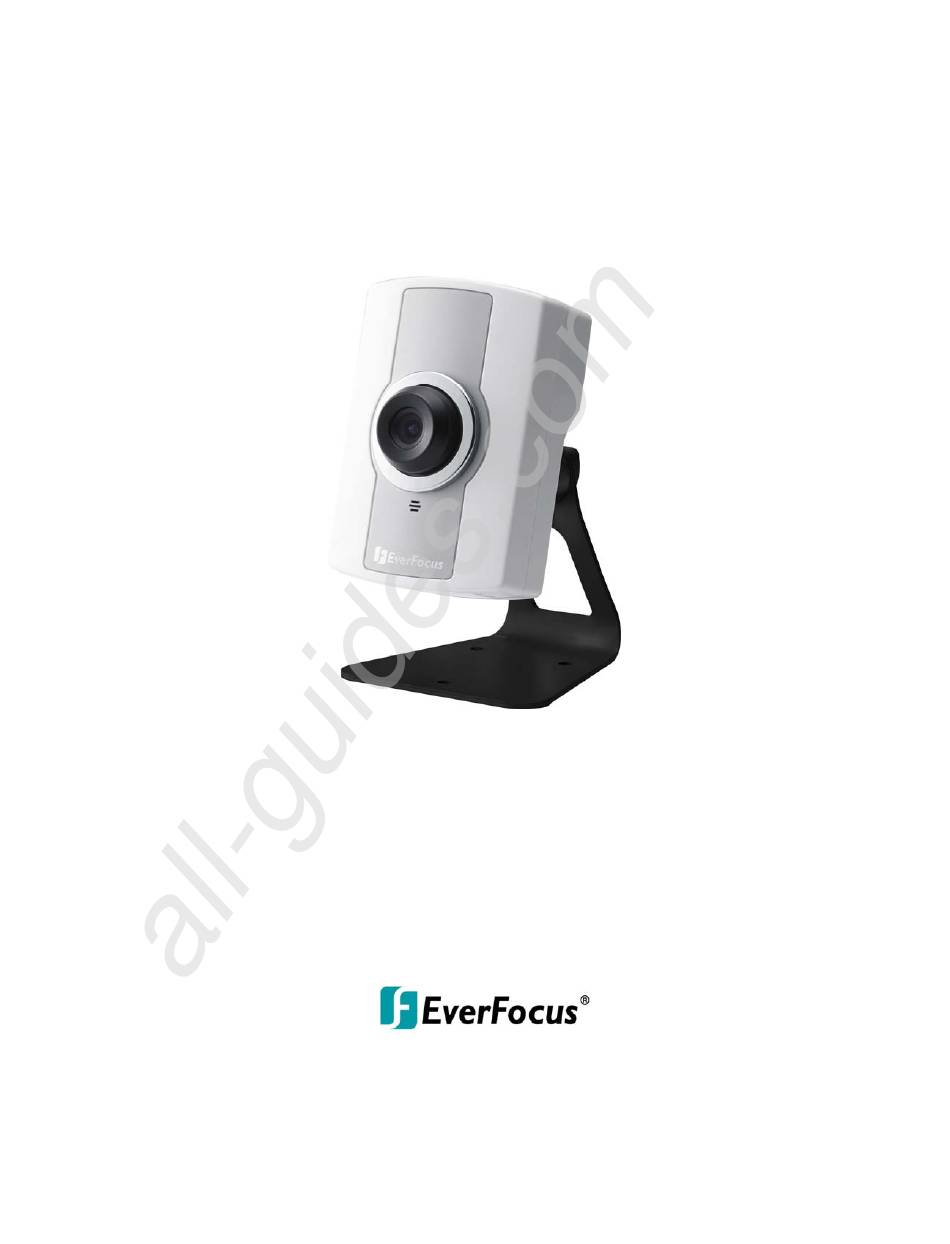

EQN2200/2201
User's Manual
Copyright © EverFocus Electronics Corp,
Release: June 2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENQ2200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EverFocus ENQ2200

Summary of Contents for EverFocus ENQ2200

  • Page 1 All manuals and user guides at all-guides.com EQN2200/2201 User’s Manual Copyright © EverFocus Electronics Corp, Release: June 2010...
  • Page 2 All manuals and user guides at all-guides.com EQN2200/2201 Product Name: EQN2200/2201 EverFocus Network Cameras Model Number(s): EQN2200/2201 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
  • Page 3 All manuals and user guides at all-guides.com EQN2200/2201 About this document All the safety and operating instructions should be read and followed before the unit is operated. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products.
  • Page 4 Java-related logos and trademarks are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and other countries. Support If the unit ever needs repair service, the customer should contact the nearest EverFocus Electronics Corp. Service Center for return authorization and shipping instruction. About this AC Adaptor...

  • Page 5: Table Of Contents

    All manuals and user guides at all-guides.com EQN2200/2201 TABLE OF CONTENTS 1. INTRODUCTION ....................6 2. FEATURES......................6 3. SPECIFICATIONS....................7 4. ACCESSING THE CAMERA MENU ..............8 5. SETTING........................ 11 5.1 S YSTEM .....................11 5.1.1 Information Tab ..................12 5.1.2 Log Tab .....................12 5.2 U ONFIG ....................13 5.3 N...

  • Page 6: Introduction

    All manuals and user guides at all-guides.com EQN2200/2201 1. INTRODUCTION EQN2200/EQN2201 is a 2 Megapixel network camera which has a highly compact housing design but superior image quality with up to 30fps in 720p resolution. For easy and flexible installation, EQN2200/EQN2201 offers the choice of either a wireless or a wired connection to the network.

  • Page 7: Specifications

    All manuals and user guides at all-guides.com EQN2200/2201 3. SPECIFICATIONS EQN2200: wired interface MODEL EQN2201: wired and wireless interface CAMERA Pickup Device 1/3" progressive scan CMOS sensor, 2 Megapixel Lens 4.3mm/F=1.8 Sensitivity 2 Lux /F=1.8 VIDEO STREAMING Video Compression H.264/M-JPEG Video Resolution 1600x1200 to 160x120 Frame Rate...

  • Page 8: Accessing The Camera Menu

    All manuals and user guides at all-guides.com EQN2200/2201 4. ACCESSING THE CAMERA MENU Step 1.Start an Internet Explorer browser session. Step 2. Enter the IP address or host name of the camera in the Location/Address field of your Internet Explorer browser in the form http://nn.nn.nn.nn:port, or http://ddnsname.everfocusddns.com.
  • Page 9 All manuals and user guides at all-guides.com EQN2200/2201 Press button to enter t he camera Setting page. In the Setting page, there are 8 ○ sections: [System Info], [User Config], [Network], [Video], [Audio], [User], [Event] and [System]. Please refer to “Section 5 .Setting”...
  • Page 10 All manuals and user guides at all-guides.com EQN2200/2201 Record ○ he record button is used to record the current video stream. The location where the image file is saved can be specified in Set ting -> User Config. Please refer to “Section 5.2 User Config”...

  • Page 11: Setting

    All manuals and user guides at all-guides.com EQN2200/2201 Event signa ○ When an alarm or motion event is triggered, a signal icon will flash to alert the user. The first icon is for alarm events and the other 5 icons are for motion events. The motion event icons, which differ by color, correspond to the motion trigger areas set in the Motion menu.

  • Page 12: Information Tab

    All manuals and user guides at all-guides.com EQN2200/2201 5.1.1 Information Tab System Information: Firmware version, MAC address and Model number. (this data may not be chan ged in this page and is for reference only) 5.1.2 Log Tab...

  • Page 13: User Config

    All manuals and user guides at all-guides.com EQN2200/2201 System Log: Date/Time: displays date and time of the log event. Log message: all information and event message, including login, user’s IP, reboot, firmware upgrade, load factory default, configuration reset and event detected. System will keep the newest 256 records.
  • Page 14 All manuals and user guides at all-guides.com EQN2200/2201 Position: Select the position where the text will be displayed: Upper Left / Lowe Right / Lower Left. Press Apply to apply the setting changes or Reset to reset without saving the changes.

  • Page 15: Network

    All manuals and user guides at all-guides.com EQN2200/2201 Note: 1. All languages can be removed, except English. 2. A maximum of five languages can be added in the language list. 3. Uploading a new language file will reboot the system automatically. Please reconnect to the IP camera after reboot.
  • Page 16 All manuals and user guides at all-guides.com EQN2200/2201 IP Settings • IP Type • IP address • Subnet mask • Gateway (when using the gateway server/router) • Primary DNS, Secondary DNS (when using DNS) IP Type DHCP: Configure the DHCP server not to assign the same IP addresses used for e other network cameras and PCs whose IP address is unique.
  • Page 17 All manuals and user guides at all-guides.com EQN2200/2201 Primary DNS An IP add ress of DNS server that is provided by ISP. This address may be assigned auto matically if DHCP is used. A correct DNS IP is essential if DDNS will be used.

  • Page 18: Ddns

    ○ www.no-ip.com ○ Enable: Check the box to enable DDNS setting. Service ISP: If you choose EverFocus DDNS server, you can easily register a DDNS name and obtain free DDNS services from EverFocus ”www.everfocusddns.com ”. Enter an IP Cam Account Name: .everfocusddns.com...

  • Page 19: Smtp/Ftp

    All manuals and user guides at all-guides.com EQN2200/2201 necessary to configure Record ID, FQDN, Username and password and register in advance for DDNS services. Refer to the web site for further information about the DDNS provider. Press Apply to apply the setting changes or Reset to reset without saving the change.
  • Page 20 All manuals and user guides at all-guides.com EQN2200/2201 Password: Input the password if the SMTP server requires authentication. Receiver Address: Input the e-mail address to receive an e-mail message when the EVENT is enabled and triggered. Please use “; “ to separate address. ddress: Input sender’s e-mail address, so that receiver can recognize Sender A e sender when an event message is sent out.

  • Page 21: Network Alarm (Reserved For Powercon)

    All manuals and user guides at all-guides.com EQN2200/2201 5.3.4 Network Alarm (reserved for PowerCon) Set Network Alarm his function is reserved for PowerCon software, for the details regarding these settings please refer to the documentation for the PowerCon network alarm rotocol.

  • Page 22: Wireless (For Eqn2201 Only)

    All manuals and user guides at all-guides.com EQN2200/2201 5.3.5 Wireless (For EQN2201 only) Wireless Setting able Wireless (Default: disable) Name o f the wireless network the camera is configured for. The field accepts up to 32 alphanumeric characters. The name must be exactly the same as the one used in the wireless access point or the connection will not be established.
  • Page 23 All manuals and user guides at all-guides.com EQN2200/2201 A-F) characters for 128-bit WEP. ) Authentication: Open or Shared (Default: Open) “Open” – communicates the key across the network. “Shared” – allows communication only with other devices with identical WEP settings. Key Length: 64 or 128 bits (Default: 64 bits) Key Format: HEX or ASCII (Default: HEX) Network Key: Entering a key in either hexadecimal or ASCII format.

  • Page 24: Video

    All manuals and user guides at all-guides.com EQN2200/2201 5.4 Video The settings relating video such as streaming, camera OSD can be configured on this page. The "Video" page has 2 tabs: the [Video S treaming] tab and the [Camera] tab. 5.4.1 Video Streaming The system can output dual streams of H.264 and MJPEG simultaneously.
  • Page 25 All manuals and user guides at all-guides.com EQN2200/2201 t Rates: 3M/2M/1.5M/1M/750K/500K/384K/256K/128K/64K/32K bit/s - Constant Bi CBR allows you to set a fixed Target bit rate that consumes a predictable amount of bandwidth. As the bit rate would usually need to increase for increased image activity, b ut in this case cannot, the frame rate and image quality are affected negatively.

  • Page 26: Camera

    All manuals and user guides at all-guides.com EQN2200/2201 change. 5.4.2 Camera Image Settings Brightness: to increase or decrease object contrast of images. It is adjustable from 0~100. Saturation: to increase or decrease color saturation of video images. It is adjustabl e from 0~100.

  • Page 27: Audio

    All manuals and user guides at all-guides.com EQN2200/2201 1/50 (PAL) second to 1/100,000 second according to the luminance conditions o f the scene. OFF: The sh utter speed is fixed at 1/60 (NTSC), 1/50 (PAL) second. AWB: Select ON or OFF for AWB. ON: the camera will determine the color temperature of the light and automatically adjust for that color temperature.

  • Page 28: User

    All manuals and user guides at all-guides.com EQN2200/2201 Audio Check Enable Audio box to enable audio function. udio Input volume: Adjust the Audi o Input Volume for the audio input devices onnected to the camera if there are problems with the sound input being too low r high.

  • Page 29: Event

    All manuals and user guides at all-guides.com EQN2200/2201 Maximum 10 user IDs can be created to access the IP camera. The user formation screen displays the authorized IDs. Access levels are: • Supervisor/Administrator –a supervisor/administrator has unrestricted access to the Setting menus and can determine the registration of all other users. Howev an administrator is not allowed to change a supervisor’s account and password.

  • Page 30: Event List

    All manuals and user guides at all-guides.com EQN2200/2201 Note: Up to 4 events can be configured in the camera, and up to 3 of these can be configured to upload images. 5.7.1 Event List The settings relating to event occurrences such as settings for motion, alarms time mask can be configured on this page.
  • Page 31 All manuals and user guides at all-guides.com EQN2200/2201 This example describes how to set the camera to trigger alarm output as well as to upload image to FTP when someone presses Manual Trigger button: 1. Click button in Event page. 2.

  • Page 32: Motion Detection

    All manuals and user guides at all-guides.com EQN2200/2201 5.7.2 Motion Detection Motion Detection Users can define the motion areas to be de tected by left clicking the mouse to set the start point. Then click the mouse again at the end point, a rectangle will be formed as the motion detection area.

  • Page 33: Event Settings

    All manuals and user guides at all-guides.com EQN2200/2201 5.7.3 Event Settings Alarm Settings Input Triggering Type: Select from Normal Close or Normal Open. Output Contact Type: Select from Normal Close or Normal Open. Output Duration Time: Select duration time of alar m output from 5 sec, 10 sec, 20 sec, 30 sec, 60 sec, 2 min, 3 min and 5 min.

  • Page 34: Event Schedule

    All manuals and user guides at all-guides.com EQN2200/2201 Image saved internally in the camera from the time Post-Alarm Buffer: immediately after the trigger condition has ceased/been reset. Input the desired length of post-trigger buffer time. It can be set up to 120 seconds. Press Apply to apply the setting changes or Reset to reset without saving the change.

  • Page 35: System

    All manuals and user guides at all-guides.com EQN2200/2201 How to set a schedule: Select the edit actions of “select” or “deselect”. There are 24 blocks (one block = 1hr) on the time bar representing 24 hours respectively. Set a schedule start time by clicking on a desired start time block on a time bar.
  • Page 36 All manuals and user guides at all-guides.com EQN2200/2201 snapshot folders created on a user’s PC. Press Apply to apply the setting changes or Reset to reset without saving the change. et Time Zone Time Zone: Select a time zone according to where the camera is located. Press Apply to apply the setting changes or Reset to reset without saving the change.

  • Page 37: Daylight Saving

    All manuals and user guides at all-guides.com EQN2200/2201 5.8.2 Daylight Saving Set Daylight Saving Check Enable Daylight Saving checkbox to enable daylight saving. Set the start time for daylight saving time. et the start week for daylight saving time: 1 / Last Set the start day of the week for daylight saving time: Sunday / Monday / Tuesd ay /...

  • Page 38: Maintenance

    All manuals and user guides at all-guides.com EQN2200/2201 Press Apply to apply t he setting changes or Reset to reset without saving the change. 5.8.3 Maintenance aintenance Server Reboot: The unit is rebooted without changing any of the settings. U se this method by pressing Reboot button if the unit is not behaving as expected.
  • Page 39 All manuals and user guides at all-guides.com EQN2200/2201 Save/Load Configuration Server To take a backup of all of the settings in the current configuration, press Save to save the configurat ion to a config. file. Once saved, it is then possible to return to the previous setting s if/when desired.
  • Page 40 803, 8th Floor, ousefin Bhavan, -21 Bandra Kurla Complex, andra (East), Mumbai 400 051 l: +91 22 6128-8700 Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed und hergestellt mit qualitativ and manufactured with high quality hochwertigen Materialien und...
