General

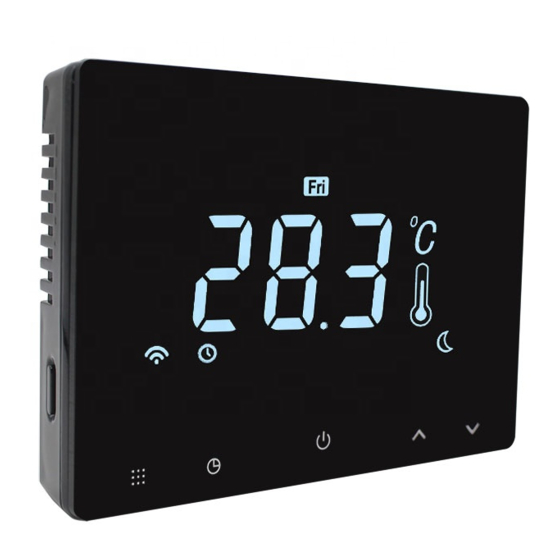

HTW-11-U20-WF Series can replace most common residential thermostat and is designed to be used for
electric, gas or oil heating control system. Unlike ordinary single unit design thermostat, this unit is a new type
of thermostat separating the thermostat function into two units including transmitter and receiver with
RF+WiFi communication.
Features
Control from anywhere Via WiFi.
Up to 100m active between Transmitter and Receiver via RF.
Displays set-point+ room temperature+time simultaneously
Permanent user setting and program setting retention after power failure
Vacation mode and hold duration mode available for comfort and energy saving
7 day/5+2 Schedule
Low battery indication
Anti-freezing protection
Pump protection available
Specification
Power supply
RF Frequency band
Set-Point range
Temperature accuracy
Operating temperature
Humidity range
Storage temperature
Dimensions
Installation
Wifi Wireless Thermostat
Transmitter
Transmitter
4 AAA batteries, USB power supply
868MHZ
5℃~35℃
±1
℃
0~50℃
90% non condensing
-20~65℃
124*88*21mm
Wall Mounted/86 Junction Box/American Junction box
- 1 -
Reference No.: HTW-11-U20-WF Series
RF wireless
Version 2019-V1.0
Receiver
