EverFocus EDR1620 Instruction Manual

EverFocus EDR1620 Instruction Manual

Digital sixteen/nine channel video recorder
Hide thumbs Also See for EDR1620:
Table of Contents

Advertisement

Quick Links

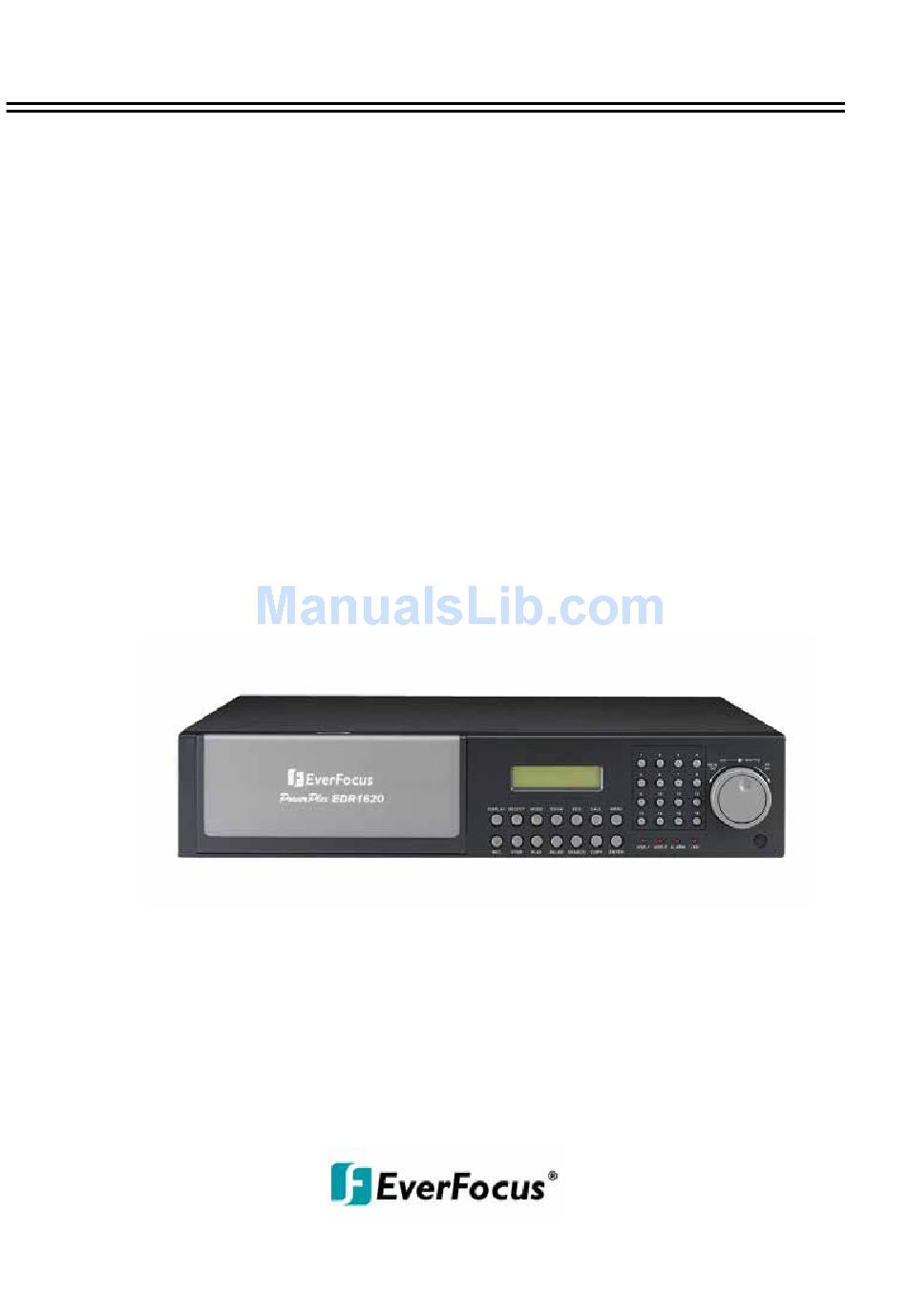

INSTRUCTION MANUAL
Digital Sixteen/Nine Channel Video Recorder
About this manual
Before installing and using this unit, please read this Manual carefully.
Be sure to keep it handy for later reference.
Date: Sep. 30th 2005
EDR1640/1620/920
V 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDR1620 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EverFocus EDR1620

Summary of Contents for EverFocus EDR1620

  • Page 1 INSTRUCTION MANUAL Digital Sixteen/Nine Channel Video Recorder About this manual Before installing and using this unit, please read this Manual carefully. Be sure to keep it handy for later reference. Date: Sep. 30th 2005 EDR1640/1620/920 V 1.0...
  • Page 2 Important Notice: Do not remove the hard disk while machine is recording. Or stop first before removing the hard disk. Updated on Oct 20 , 2005...

  • Page 3: Safety Warning

    WARNING TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE CAUTION DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

  • Page 4: Safety Precautions

    Do not operate the appliance beyond its specified temperature, humidity or power source ratings. Do not use the appliance in an extreme environment where high temperature or high humidity exists. Use the appliance at temperature within indoor type DVR for 0 C ~ +40 C and a humidity below 90%.
  • Page 5 Safety Precautions The lightning flash with an arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated ” dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

  • Page 6: Important Safeguards

    Important Safeguards Important Safeguards Read Instruction---All the safety and operating instructions should be read before the unit is operated. Retain Instructions---The safety and operating instructions should be retained for future reference. Heed Warnings—All warnings on the unit and in the operating instructions should be adhered to. Follow Instructions—All operating and use instructions should be followed.

  • Page 7: Table Of Contents

    1. PRODUCT INTRODUCTION …………………………………………………………….………… 1.1 FEATURES …………………………………………………………………..…………..…………. 1.2 SPECIFICATIONS…………………………………………………………………………….……… 1.3 FRONT PANEL KEYPADS …………………………………………………………..…….……… 1.4 BACK PANEL CONNECTORS …………………………………………………………….……… 1.5 MONITOR DISPLAY ……………………………………………………………………….……… 2. INSTALLATION …………………………………………………………………………….………… 2.1 PACKING LIST ………………………………………………………………………...…….……… 2.2 SYSTEM FLOORPLAN ………………………………………………………..…………….……… 2.3 BASIC CONNECTIONS ………………………………………..…………………….…….……… 2.4 BOOT UP EDR16401620920……………………………………………..……………….……… 3.
  • Page 8 5. PLAYING BACK……………………………..……………………………………………..………... 5.1 NORMAL PLAYBACK……………….……………………………………………………………… 5.2 SEARCH PLAYBACK …………………………………………………….………………………… 6. COPY TO A VIDEO FILE ………………………………………………….………………………… 7. CALL ………………………………………………………………………..……….………………… 8. SCREEN DISPLAY SETTING …………………………..………………..………………………… 9. SCREEN DISPLAY MODE ………………………………….…………….………………………… 10. REMOTE VIEWER ……………………………………..………………..………………………… APPENDIX A: RS232 specifications …………………………………………….…………………… APPENDIX B: RS485 specifications ……………………………………………….………………… APPENDIX C: Alarm I/O Assignment ………………………………………….…………….………...

  • Page 9: Product Introduction

    1. PRODUCT INTRODUCTION The Digital Video Recorder is the industry’s first full-featured digital video recorder designed specifically for use in security industry. The Digital Video Recorder incorporates all the benefits of digital video recording, is simple to install, and operates just like a VCR.

  • Page 10: Specifications

    1.2 SPECIFICATIONS NTSC/EIA or PAL/CCIR Video Format Video Input 16 camera inputs (BNC), 1Vp-p/75ohm 1 BNC video out (1Vp-p/75ohm)and S-Video out for Main Monitor Video Output 1 BNC video out (1Vp-p/75ohm) for CALL Monitor 16 video out (1Vp-p/75ohm) for Lopping Video Compression MPEG4 720x480 (NTSC:120) / 720x576 (PAL:100)
  • Page 11 RS-232 9-pin female connector for local communication For Keyboard and PTZ connection RS-485 Audio 4 mono input, 1 mono (SPEAKER) output AC100~240V±5% Power Source...

  • Page 12: Front Panel Keypads

    1.3 FRONT PANEL KEYPADS REC: Press this key to start instant recording. STOP: Press this key to stop recording and playing back. PLAY: Play Back. PAUSE: Press this key to pause the playback picture. SEARCH: Press this key to enter the SEARCH MENU. COPY: Press this key to start to copy a still picture under PAUSE mode or video stream into Compact Flash card.
  • Page 13 SELECT: Press this key to select, to assign a camera to a display, to adjust screen display, and so on. MODE: Switch PIP, 4, 7, 9, 10, 13 and 16 displays in Live and Playback modes. ZOOM: Press this key while viewing the full screen image to display a magnified resolution on the monitor.
  • Page 14 Shuttle and Jog Dial Shuttle: In the Playback mode, turn the Shuttle dial to fast forward/rewind Jog Dial: In the Pause mode, turn the Jog dial to forward/rewind the video. System LEDs: LEDs for system active HDD , ALARM and LAN display Channel Key (1~16): Press Channel Key (CH1~CH16) to display video image in the full screen format, the corresponding picture will fill the whole screen of the monitor display.

  • Page 15: Back Panel Connectors

    1.4 BACK PANEL CONNECTORS POWER Main Power plug: Connect the DC 12~ 24V power source to adapter for AC 100~ 240V. AUDIO Audio IN: Audio inputs 1~4 for recording, and it can be set to “YES” or “NO” in the RECORD SETUP MENU.
  • Page 16 VIDEO IN For EDR1640/1620 Series: VIDEO OUT(1~16): BNC connectors for video looping out 1~16. VIDEO IN(1~16): BNC connectors for video input 1~16 . Alarm Input/Output Alarm Input ALM-INPUT: Normal open or normal close type alarm signal inputs. The Alarm Input can be selected as normal open (N.O.) or normal close (N.C.) input in the ALARM SETUP MENU.
  • Page 17 Connect from Cascade out of the DVR to Cascade In of another with BNC connectors. Repeat the same step for all your DVRs until you connect the last Cascade Out to the original DVR’s Cascade In.

  • Page 18: Monitor Display

    1.5 MONITOR DISPLAY The status information of the cameras or machine will show up, and be located at different places on the screen. Channel tag: A channel tag indicates the channel name of the screen. Event sign: Event signals which are small icons with a capital letter and red background show the events on each screen.
  • Page 19 Select sign: You can assign a camera to a display by pressing SELECT key in live mode. Dial Jog to move the select sign to the display you would like to change camera, and then press channel key from the Channel Panel to relocate the camera. Play status bar: The play status bar appears in play back mode if you enable a status bar on the screen (Please see DISPLAY, 8 date, play time and play status are shown in the play status bar.
  • Page 20 1. Current date: The current date which is set in the TIME/DATE SETUP MENU. 2. Record status: It shows REC and recording hard disk number. “REC”, it shows when machine is recording. “R01”, the recording hard disk number. There is only one hard disk available in this model, so it always shows R01 when recording.

  • Page 21: Installation

    2. INSTALLATION The installations described below should be done by qualified service personnel or system installers. 2.1 PACKING LIST Please check accessories in the packing before the 2.2 SYSTEM FLOORPLAN Please refer to the following diagram for the system connections. Note: Monitor and Camera must be purchased separately.

  • Page 22: Basic Connections

    RJ45 connector Ethernet cable or wireless network (IEEE 802.11b/g). RS232/RS485 Digital Video Recorder is enabled control from the PC or EverFocus keyboard via RS232/RS485. Main/Call Monitor Connect the Main/Call monitor output connector to a Main/Call monitor. The Main/Call monitor displays selected live or recorded cameras in any available format.

  • Page 23: Menu Setup

    3. MENU SETUP To set up the machine before using is necessary, especially first time to use. Press MENU key to enter the MAIN MENU. Press MENU key or click on the arrow at the top right corner of the screen with a mouse to quit current setting, and go back to last setting.
  • Page 24 In the TIME/DATE SETUP MENU, we define : (1) TIME FORMAT: There are two time formats that are 12 HOUR and 24 HOUR to be selected. (2) TIME: Current time Hour: 00 ~ 23 (1 ~ 12 if TIME FORMAT is 12 HOUR) Minute : 00 ~ 59 Second: 00 ~ 59 (3) DATE FORMAT:...
  • Page 25 (6) START TIME: To set the start time of daylight saving time. To set the start month of daylight saving time: Dial the jog to set the start month. To set the start week of daylight saving time: Dial the jog to set the start week. 1 ST 2 ND 3 RD...
  • Page 26 (8) TIME SYNCHRONIZE: Select “ON” or “OFF” to enable or disable time synchronize which can let you have correct time automatically when network is connected. (9) TIME SERVER: You can set the time server address where you locate if you connect to network and enable time synchronize.

  • Page 27: Camera Setup Menu

    3.2 CAMERA SETUP MENU In the CAMERA SETUP MENU, we define : (1) TITLE: The title setting allows you to assign a title to each camera input. Titling with 12 characters is supported in each channel. The available alphanumeric characters are: 0,1,2,3,4,5,6,7,8,9, A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,V,W,X,Y,Z, ( ) .
  • Page 28 (5) REC QUALITY: Select an image quality for recording. Normal record image quality and event record image quality can be set individually. There are six different qualities available. A higher image quality needs more HDD space. The theory space needed per second lists below: ESTIMATE BIT SIZE SUPERIOR : 4.0 Mega Bits/sec...
  • Page 29 (7) SUMMARY : Dial Jog to change items in the SUMMERY table. All camera’s statuses are shown in the SUMMARY table. The table is for checking camera overall statuses only, not for setting. You can check the following statues: “Title”, “Install”, “Covert”, “SEQ (Main/Call)”, “Quality”, “TP1~8 Normal Speed”...

  • Page 30: Record Setup Menu

    3.3 RECORD SETUP MENU In the RECORD SETUP MENU, we define : (1) RECORD AUDIO: YES: Audio will be recorded when machine is recording. NO: Audio will not be recorded when machine is recording. (2) TIME STAMP: ON: The time stamp will show on the video and picture when recording. OFF: The time stamp will not show on the video and picture when recording.
  • Page 31 (6) RECORD MODE: REWRITE: Continue recording. Disk will be overwritten when it is full. STOP: Stop recording when disk is full.

  • Page 32: Alarm Setup Menu

    3.4 ALARM SETUP MENU In the ALARM SETUP MENU, we define : (1) ALARM: ENABLE: Enable alarm detection. DISABLE: Disable alarm detection. (2) ALARM TYPE: N. O. : Normal Open alarm. N.C. TRANS. : When the alarm is triggered, buzzer starts to function no matter how long is the alarm duration set until you set it back to N.C.
  • Page 33 (4) RETRIGGER: Re-trigger the alarm. YES : The duration time starts when an alarm is triggered. The duration time restarts from 0 when a new alarm is triggered during an alarm action. NO : The alarm signal will not be triggered again during duration time. (5) DURATION: Buzzer noise and event record duration of an alarm, from 1 sec to 99 seconds.
  • Page 34 (12) MATRIX MON 1: Display on matrix monitor 1 when an alarm occurs. NO CHANGE: Nothing changes on the display in the matrix monitor 1 when an alarm occurs. CAMERA 1~16: Display an assigned camera in full screen mode to the matrix monitor 1. (13) MATRIX MON 2: Display on matrix monitor 2 when an alarm occurs.

  • Page 35: Motion Setup Menu

    3.5 MOTION SETUP MENU In the MOTION SETUP MENU, we define : (1) MOTION: ENABLE: Enable motion detection. DISABLE: Disable motion detection. Note: Motion only works in live and playback modes. It is invalid when you are setting menus. (2) SENSITIVITY: The sensitivity allows users to adjust to a suitable motion detection sensitivity.
  • Page 36 (6) EMAIL/NETWORK: YES: Send an email / Enable alarm network when an alarm occurs. NO: Do not send an email / Disable alarm network when an alarm occurs. The email address and e-mail server can be set in the NETWORK SETUP MENU. (7) BUZZER: Motion buzzer.
  • Page 37 (13) MATRIX MON 4: Display on matrix monitor 4 when an alarm occurs. NO CHANGE: Nothing changes on the display in the matrix monitor 4 when an alarm occurs. CAMERA 1~16: Display an assigned camera in full screen mode to the matrix monitor 4. (14) SUMMARY: Dial Jog to change items in the SUMMERY table.
  • Page 38 Dial JOG or scroll the tilt wheel of the mouse to select a horizontal area, and press ENTER or tilt wheel of the mouse to switch a horizontal area. To quit the motion area edit, press MENU or right-click the mouse to obtain a selection menu, select “EXIT”...

  • Page 39: Vloss Setup Menu

    3.6 VLOSS SETUP MENU In the VLOSS (Video Loss) SETUP MENU, we define : (1) VLOSS: ENABLE: Enable video loss detection. DISABLE: Disable video loss detection. (2) DURATION: Buzzer noise and event record duration of an alarm, from 1 sec to 99 seconds. The default value is 5 seconds.
  • Page 40 (6) ALARM NETWORK: YES: Enable alarm network. NO: Disable alarm network. (7) SUMMARY: All video loss’s statuses are shown in SUMMARY table. This table is only for checking video loss overall statuses, not for setting.

  • Page 41: Network Setup Menu

    3.7 NETWORK SETUP MENU There are 4 subentries that are CONFIG, ALARM, EMAIL and PASSWORD in the NETWORK SETUP MENU. Each of them has to be set up completely before the network functions. 3.7.1 CONFIG Please Note: Since every Network Configuration is different, please contact your Network Administrator or ISP for how to assign those IP addresses and port numbers.
  • Page 42 Please Note: Since every Network Configuration is different, please contact your Network administrator or ISP for how to assign those IP addresses and port numbers. DVR can send out Alarm message to an Alarm Server. In the ALARM of the NETWORK SETUP MENU, we define: (1) PROTOCOL: Select which communication protocol with Alarm servers or Alarm receiving clients.
  • Page 43 (4) SERVER 1 : assign the IP address of Alarm server 1. (5) SERVER 2 : assign the IP address of Alarm server 2. (6) SERVER 3 : assign the IP address of Alarm server 3. 3.7.3 EMAIL In the ALARM of the NETWORK SETUP MENU, we define : (1) SMTP SERVER: assign the SMTP (e-mail) server’s IP address.
  • Page 44 For example: In Motion Setup Menu, if the “EMAIL/NETWORK” is set to “YES”, this e-mail address will receive a text message and an “ARV” format of a still image from DVR when Motion is triggered. This “ARV” file can be played back by opening “EDRViewer.exe” that you downloaded from the DVR or the Remote Viewer.

  • Page 45: Schedule Setup Menu

    3.8 SCHEDULE SETUP MENU In the SCHEDULE SETUP MENU, we define : (1) DAY: MON (Monday), TUE (Tuesday), WED (Wednesday), THU (Thursday), FRI (Friday), SAT (Saturday), SUN (Sunday). WDAY: Weekday, from Monday to Friday. WEND: Weekend, Saturday and Sunday. DLY: Daily. (2) START: The start time of a scheduled record time zone.

  • Page 46: Disk Setup Menu

    3.9 DISK SETUP MENU In the DISK SETUP MENU, we define : (1) DISK INFORMATIONS: Select disks, there are 4 disks in each table. A maximum of 40 disks is available for this model. (2) DISK VIDEO DELETE: The disk you want to delete. Press SELECT to start delete.

  • Page 47: Control Setup Menu

    3.10 CONTROL SETUP MENU In the CONTROL SETUP MENU, we define : (1) RS 232: BAUD RATE: There are 5 different speeds that can be used to transmit instruction or information through the RS232 port on the device, which are 2400, 4800, 9600, 19200, 38400 and 57600 BPS.
  • Page 48 DATA BIT: Select data bit : 7or 8. The default setting from the factory is 8. Note: RS 485 pin definition is shown in APPENDIX B. (3) RS 232 / RS 485 ID: Select ID : from 001 to 255. (4) PTZ PROTOCOL: Select PTZ Protocol: EVERFOCUS, PELCO-D, PELCO-P or ED22002250.

  • Page 49: Warning Setup Menu

    3.11 WARNING SETUP MENU In Warning Setup Menu, you will be able to do warning setting when the following situations occur: 3.11.1 FAN FAULT In FAN FAULT, we define: BUZZER: Fan buzzer. ENABLE: To enable a buzzer when the fan does not work. DISABLE: To disable fan buzzer.

  • Page 50: Hdd Temp

    3.11.2 HDD TEMP. In HDD TEMP., we define: BUZZER: HDD TEMPERATURE buzzer. ENABLE: To enable a buzzer when HDD’s temperature is over 70 ° C. DISABLE: To disable HDD TEMP. buzzer. ALARM OUTPUT: The setting of alarms which are NONE, 1, 2, 3 and 4. ALARM DURATION: PERMANENT NETWORK ALARM: YES: To enable network alarm.
  • Page 51 3.11.3 NO HDD In NO HDD, we define: BUZZER: NO HDD buzzer. ENABLE: To enable a buzzer when no HDD has been found. DISABLE: To disable NO HDD buzzer. ALARM OUTPUT: The setting of alarms which are NONE, 1, 2, 3 and 4. ALARM DURATION: Buzzer noise and event record duration of an alarm, from 1 sec to 99 seconds.

  • Page 52: Hdd Full

    3.11.4 HDD FULL In HDD FULL, we define: BUZZER: HDD FULL buzzer. ENABLE: To enable a buzzer when HDD is full. DISABLE: To disable HDD FULL buzzer. ALARM OUTPUT: The setting of alarms which are NONE, 1, 2, 3 and 4. ALARM DURATION: Buzzer noise and event record duration of an alarm, from 1 sec to 99 seconds.

  • Page 53: System Setup Menu

    3.12 SYSTEM SETUP MENU In the SYSTEM SETUP MENU, we define : (1) SYSTEM VERSION: Current system firmware version. (2) SYSTEM VIDEO FORMAT: NTSC or PAL System can detect the input signal type automatically from camera 1 while system is booting up. Users do not need to set it up. Note: The signal type is detected by camera 1, so camera 1 input has to be connected.
  • Page 54 (5) LANGUAGE: System language can be set in different languages. Note: The available language depends on the different areas and countries. (6) QUICK PLAY: Set up the start play time of the normal play mode. TIME: Quick play time, 5 to 59 minutes ago. The default value is 10 minutes. ON: Enable quick play.
  • Page 55 Note: After upgrading system software, please do the following actions before recording: Load System Default in System Setup Menu. Delete disk in Disk Setup Menu. LEVEL LEVEL-3 RIGHT ADMINISTRATOR DISPLAY MODE ZOOM SELECT CALL MENU COPY SEARCH PLAY STOP PAUSE Note: The above table will be updated if there is any change.

  • Page 56: Recording

    4. RECORDING 4.1 INSTANT RECORDING Press the Record key to start to record immediately. When REC is pressed, the pictures being monitored will be recorded in the HDD. •The recording rate, recording quality and recording speed can be set in the CAMERA SETUP MENU.

  • Page 57: Schedule Recording

    4.2 SCHEDULE RECORDING Set up the DAY, START time, END time and then enable the SET in the SCHEDULE SETUP MENU. Please refer to SCHEDULE SETUP MENU, to see setting procedure and more details. 4.3 EVENT RECORDING We define two event types which are ALARM and MOTION events can be recorded. After the event recording is enabled, the EDR1640/1620/920 will start an event recording when an event occurs.

  • Page 58: Alarm Recording

    2. After enabling an event, you need to set a time zone in the SCHEDULE SETUP MENU. An event recording has to be included in a scheduled time zone. You can refer to SCHEDULE SETUP MENU to set up a time zone which you would like to record when an event occurs. 3.

  • Page 59: Playing Back

    5. PLAYING BACK 5.1 NORMAL PLAYBACK (1) Playback Press the PLAY key to start playing back the stored image/audio. The video start time depends on the immediate play setting in the SYSTEM SETUP MENU. PLAY (2) STOP Press the STOP key to stop playing back. STOP (3) Fast Forward/Reverse Playback Press the PLAY key to start playing back.
  • Page 60 (4) Slow Forward/Reverse Playback During playback mode, press PAUSE key to freeze the playing back picture. PAUSE Turn the Shuttle dial clockwise, to start slow forward playback. The speed will show on the status bar of the bottom screen. >> 1/2, 1/4, 1/8, 1/16, 1/32, and press ENTER at the same time to fasten the play speed.

  • Page 61: Search Playback

    5.2 SEARCH PLAYBACK Press the SEARCH key to enter the SEARCH MENU. SEARCH In the SEARCH MENU, Dial the Jog clockwise or counterclockwise to change subentry values. Press the ENTER key to go next subentry in search menu setting, and press the DISPLAY key to go last subentry in search menu setting.
  • Page 62 (2) EVENT Search Playback You can change different event search methods if you select “BY EVENT” instead of “BY TIME / DATE”. 7 events which are ALARM, MOTION, VLOSS, A/M, A/V, M/V and A/M/V can be selected. The indications of events show below. EVENT ALARM Search ALARM events...

  • Page 63: Copy To A Video File

    6. COPY TO A VIDEO FILE Insert a USB pocket driver into USB slot on the front panel to copy. USB SLOT: Digital Video Recorder allows users to select the camera for copying image to movie file or copying EDR Viewer player.
  • Page 64 In the COPY MENU, we define: COPY: Select Image for copying images to movie file. Select Viewer for copying EDR viewer player. DISK NO: Disk number. It is fixed as “01” in this series. CAMERA NO: Camera number. You can select the video of camera you would like to copy. START DATE &...

  • Page 65: Call

    7. CALL Press the CALL key and the CALL MENU will pop up as below. In the CALL MENU, we define : (1) SEQ: Sequence display on the Call/Matrix monitor. Press SEQ to switch “ON” or “OFF” of the sequence status. (2) OSD: Channel name display on the Call/Matrix monitor.

  • Page 66: Screen Display Setting

    8. SCREEN DISPLAY SETTING In a full screen display, press SELECT key to pop up the display adjustment window as below: In the screen display setting menu, we define: (1) CAMERA: The display setting of the current camera. (2) BRIGHTNESS: The bright percentage of the current camera; from 0% to 100%. (3) CONTRAST: The contrast percentage of the current camera;...

  • Page 67: Screen Display Mode

    9. SCREEN DISPLAY MODE Press MODE to switch 4, 7, 9, 10, 13, 16 and PIP (picture in picture) displays for Live and Playback mode.

  • Page 68: Remote Viewer

    10. REMOTE VIEWER Basic Operations and Login Display: Go to the Internet Explorer, key in the network IP address, for example, http://220.228.98.9 (must be the same IP address as the one assigned to the unit from the Network Setting Menu. please contact your ISP or MIS for the IP assignment) The LOGIN dialog will be shown on the screen.

  • Page 69: Main Screen

    Main Screen The above diagram is the main screen display. The icons on the lower corner of the screen are mainly for control and configuration, those on the right corner are for status indication. If any icon is grayed, it means that the specific function is not accessible in the current mode. The followings are a brief description for each of the icons.
  • Page 70 7. The system allows up to 3 ways to playback video, by EVENT LIST, Time and PTZ Control. (Playback by EVENT LIST, click “Update” button to show list) (Playback by Time) (Playback by PTZ Control)
  • Page 71 Search from EVENT LIST: Select Event Type from Alarm, Motion and Vloss. Press Update button to refresh the event list. III. All events of the selected type will be displaying along with Date/Time, event type (represents by a capital letter), camera number (represents by a number), e.g.
  • Page 72 14. Quad screen view. 15. Nine split screen view. 16. A pop-up menu to select camera to view will be shown by right-clicking the mouse. 17. Download viewer I. To download viewer, press “EverFocus” logo on the right top corner of the screen.
  • Page 73 II. Select “Run” or “Save” the file. III. Open the EDRViewer.exe for loading the archived EDR MPEG Files (.arv)

  • Page 74: Appendix A: Rs232 Specifications

    APPENDIX A : RS232 specifications This Digital Video Recorder can be controlled by a computer or a terminal via a RS232 standard D-SUB 9-pin RS-232 connector. D-SUB 9-pin connector The pin assignment of the 9-pin D-SUB connector Digital Video Recorder PIN # NAME NOT CONNECTED...

  • Page 75: Appendix B: Rs485 Specifications

    APPENDIX B : RS-485 (RJ45) specifications There are two RS-485 (RJ-45) connectors of one port on the back panel of the DVR. Please refer to the following pin assignment for application. APPENDIX 1 2 3 4 5 6 7 8...

  • Page 76: Appendix C: Alarm I/O Assignment

    Each alarm input requires two wires, one wire connects to the desired alarm input pin, the second wire connects to the ground.The alarm signal assignment is shown at the following. <Figure 1> D-SUB 37 pin female connector (DVR) PIN # NAME...
  • Page 77 Albert-Einstein-Strasse 1 D-46446 Emmerich, Germany TEL: 49-2822-9394-0 www.everfocus.de Your EverFocus product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.
