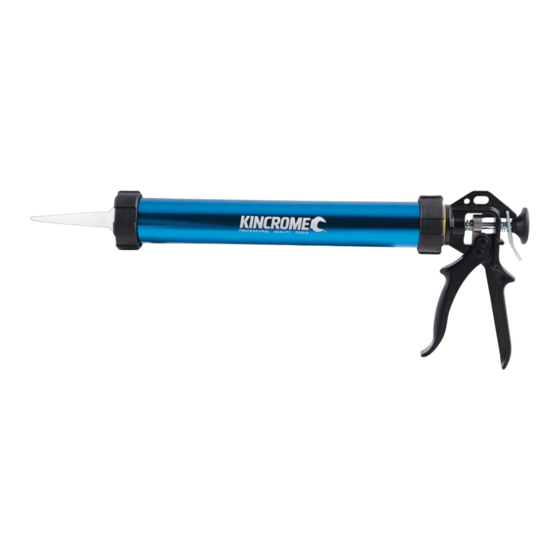

kincrome K8091 Quick Start Manual

CAULKING
GUN
K8091
Plastic Disc
GENERAL SAFETY INFORMATION
1. This service instruction sheet contains important warnings and other information. READ & KEEP FOR REFERENCE
2. The information in this manual has been carefully checked and is believed to be entirely reliable and consistent with the product described. However, no
responsibility is assumed for inaccuracies, or for liability arising out of the application and use of the equipment described.
3. Should the equipment be used in a manner not specified, the protection provided by the equipment may be impaired and the warranty voided.
4. Always wear safety glasses when using a caulking gun and keep work area clean. Remove any excess product from tools, hands & clothing after use.
UNPACKING
1. Unpack all the components from the box.
When unpacking the Caulking Gun, carefully inspect for any damage that may have occurred during transit or storage.
Check for tears, loose, missing or damaged parts.
2. Ensure all packaging material is disposed of as per your local council guide lines.
ASSEMBLY
Plastic Discs - For Sausages
To change plunger to Plastic Disc
1. Remove Gun Barrel by unscrewing at rear end cap (Fig 1)
2. Unscrew locking nut at rear of metal disc with 13mm spanner (Fig 2)
3. Remove front locking nut (Fig 3)
4. Fit nut to front of plastic cap (Fig 4)
5. Screw Plastic Cap onto plunger, thread until flush with end of thread (Fig 5)
6. Tighten locking nut to retain plastic cap (Fig 6)
7. Replace gun barrel back on by screwing it onto the rear end cap (Fig 7)
Fig 3
Metal Disc - For Cartridge
To change plunger to Metal Disc
1. Remove gun barrel (Fig 1)
2. Loosen locking nut with 13mm spanner (Fig 2)
3. Unscrew plastic disc and remove locking nut (Fig 4)
4. Fit nut onto plunger thread until flush with end (Fig 8)
5. Tighten locking nut to retain metal cap (Fig 9)
6. Replace gun barrel back on by screwing it onto the rear end cap (Fig 10)
Fig 8
Nozzle
Front End Cap
Metal Disc
Fig 4
Fig 9
Gun Barrel
Trigger
Fig 5
Fig 10
Rear End Cap
Rear End Handle
Plunger
Handle
Metal Plate
Handle
Fig 1
Fig 6
Fig 2
Fig 7
