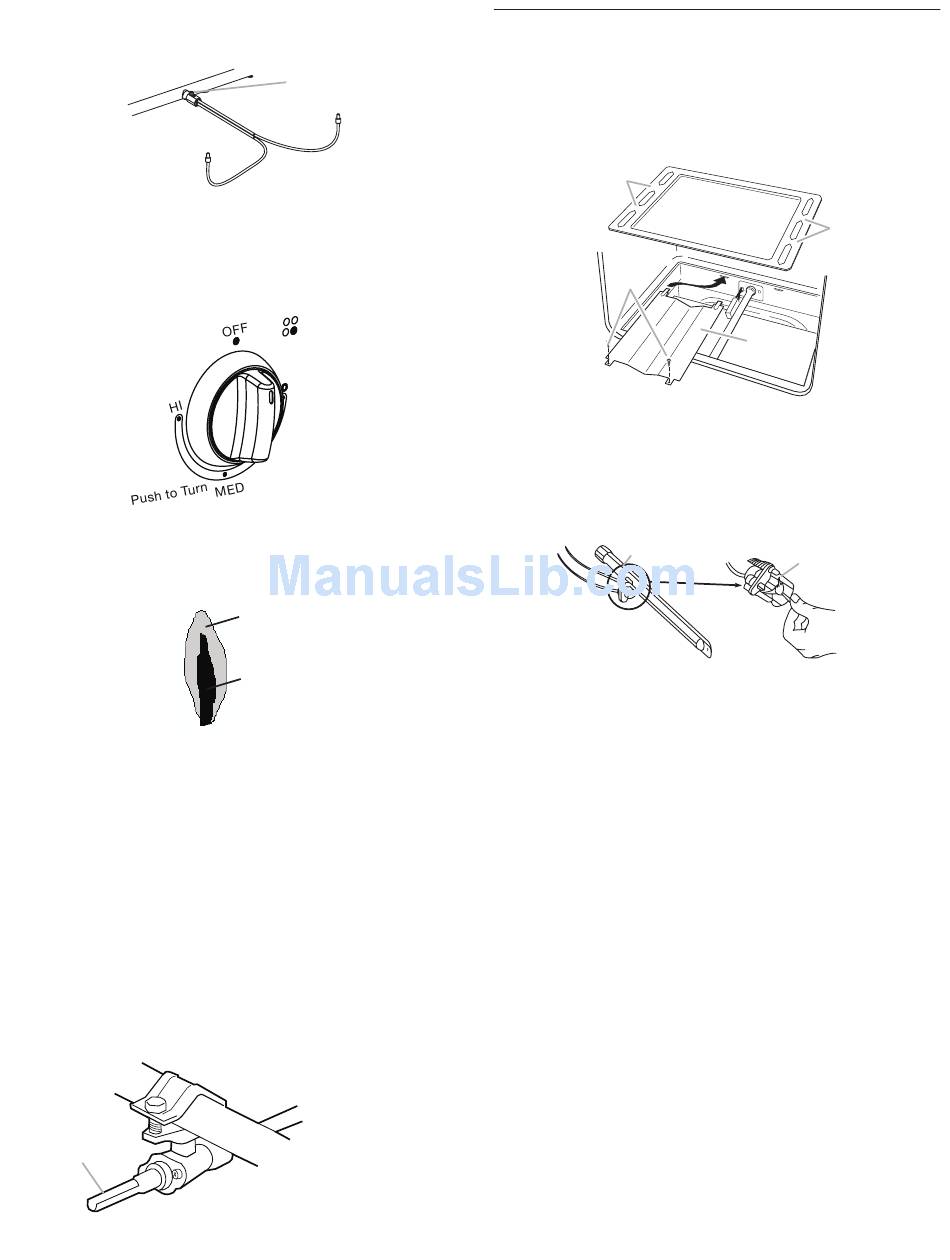

6. If the pilot flame needs adjustment, use a flat blade
screwdriver and turn the adjusting screw until the flame is of
the desired height.
A. Adjusting screw
7. Push back on the side support rods and slowly lower the
cooktop until it snaps into position.
8. Push in and turn each surface burner control knob to the "HI"
position. The flame should light within 4 seconds.
9. If surface burners do not ignite, repeat steps 3 to 6.
10. Check each cooktop burner for proper flame. The small inner
cone should have a very distinct blue flame 1/4" to 1/2"
(6.4 mm to 13 mm) long. The outer cone is not as distinct as
the inner cone.
11. Turn the control knob quickly to the "LO" position after the
burner lights. If the flame goes out, turn the knob to the "OFF"
position.
12. Check each cooktop burner for proper low flame. The low
flame should be a mimimum, steady blue flame. The flame
size should be 1/4" to 3/8" (6.4 mm to 9.5 mm) high.
13. Replace cooktop grates.
If the low flame needs adjusting:
1. Turn control knob to the "LO" setting and remove control
knob.
2. Insert a small flat-blade screwdriver into the valve stem. Turn
the valve adjusting screw to obtain the smallest flame that will
not go out when the control of a cold burner is quickly turned
from "HI" to "LO". Turn right to decrease flame height. Turn
left to increase flame height. Repeat for other cooktop burners
as needed.
A
A. Valve stem
3. Replace control knob.
A
outer
cone
inner
cone

Check Operation of Oven/Broil Burner

1. Make sure all controls are off and the oven is cool.
2. Open the oven door to remove oven racks and the oven
bottom tray.
3. Remove the fasteners holding the flame spreader. Lift and pull
out the flame spreader.
A
B
A. Oven bottom tray
B. Fasteners
C. Flame spreader
4. Locate the pilot light on the left-hand side of the oven burner.
5. Push in oven control knob and hold, then ignite the oven pilot
light with a match.
A
A. Oven burner
B. Oven Pilot
6. Hold the oven control knob in for 10 seconds to make sure
the pilot will remain lit.
7. If the oven pilot light truns off after releasing the knob, repeate
steps 5 and 6.
8. When the oven pilot remains on, replace the flame spreader,
oven bottom tray, and racks.
NOTE: The pilot light will stay light after turning off the oven. The
oven burner should turn on the next time a temperature is
selected on the oven control knob. If the oven burner does not
turn on, repeat previous steps for lighting oven pilot light.
9. Open broiler door.
A
C
B
