Estate TGP300T Dimension Manual

Gas Range
PRODUCT MODEL NUMBERS
TGP300T
Gas supply: Use 3/4" (1.9 cm) rigid pipe gas
supply line to the range location. A smaller size
pipe on longer runs may result in insufficient
gas supply. With L.P. gas, piping or tubing size
can be 1/2" (1.3 cm) minimum. If local codes
permit, it is recommended that new flexible metal
appliance connector, design-certified by CSA,
4-5 feet (122-152.4 cm) long, 1/2" (1.3 cm) or
3/4" (1.9 cm) I.D., be used for connecting the
range to the rigid gas supply line. A 1/2" (1.3 cm)
male pipe thread is needed for connection to
pressure regulator female pipe threads. An
individual manual shutoff valve must be located
in the same room, but external to the range.
CABINET OPENING DIMENSIONS
Cabinet opening dimensions shown
are for 25" (64 cm) countertop depth,
24" (61 cm) base cabinet depth and
36" (91.4 cm) countertop height.
If the cabinet depth is greater than
24" (61 cm), the oven frame must
extend beyond cabinet fronts by
1/2" (13 mm) minimum.
NOTE: 24" (61 cm) minimum when bottom of
wood or metal cabinet is protected by not less
than 1/4" (0.64 cm) flame retardant millboard
covered with not less than No. 28 MSG sheet steel,
0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm)
aluminum or 0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance between the top
of the cooking platform and the bottom of an
unprotected wood or metal cabinet.
If installing a range hood or microwave hood
combination above the range, follow the range
hood or microwave hood combination installation
instructions for dimensional clearances above the
cooktop surface.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.

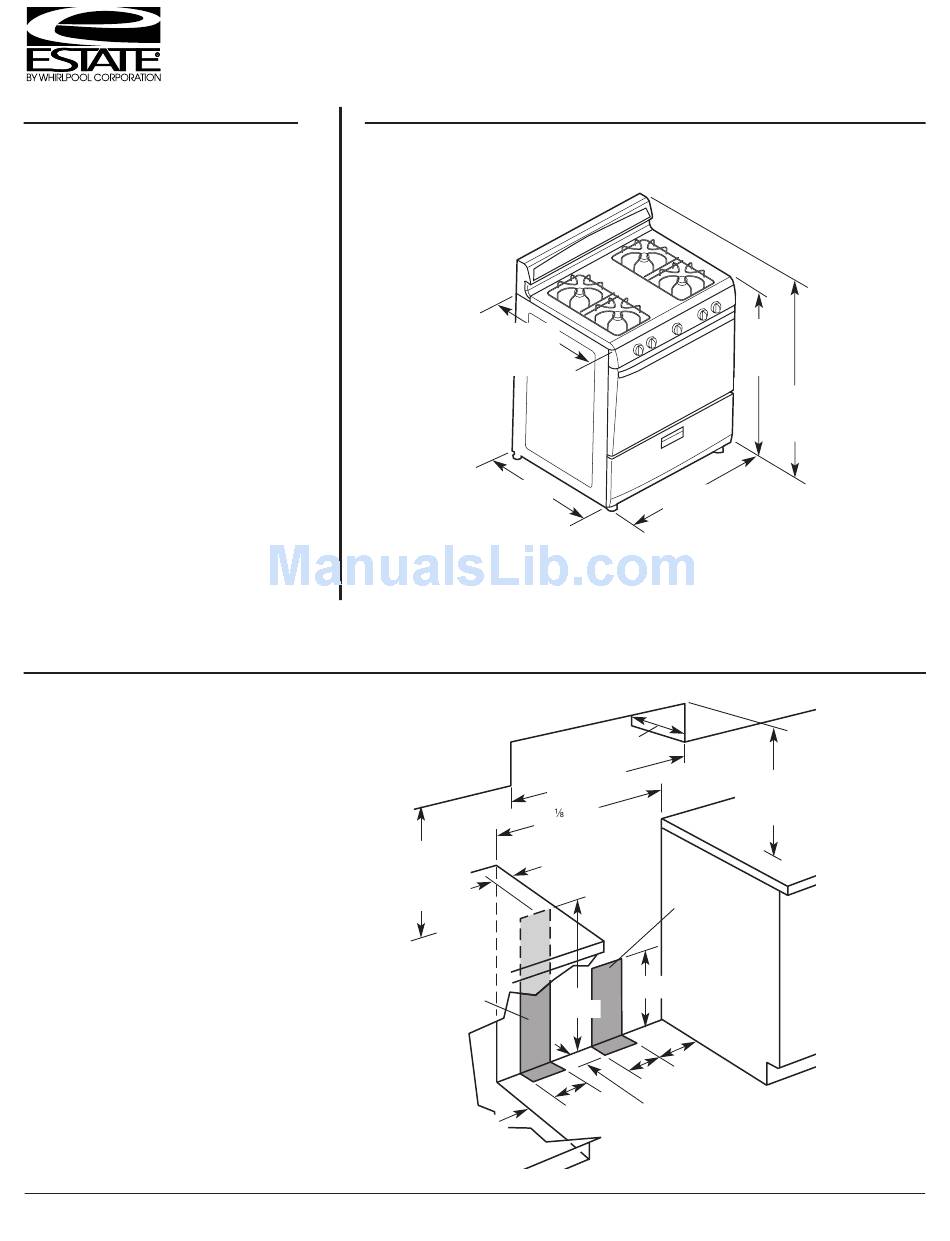

OVERALL DIMENSIONS
26-3/4"
(67.9 cm)
depth with
handle
24-1/4"
(61.6 cm)
13" (33.0 cm) max.
upper cabinet depth
30" (76.2 cm) min.
cabinet opening width
30- " (76.5 cm)
opening width
18" (45.7 cm)
2" (5.1 cm) min.
min. clearance
countertop space to
upper side
side wall or other
cabinet to
combustible material
countertop
This shaded area
recommended for
electrical outlet.
3"
(7.6 cm)
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
29-7/8" (75.9 cm)
width
This shaded area
recommended for
installation
of gas pipe.
10" (25.4 cm)
24"
(61.0 cm)
8"
(20.3 cm)
5"
(12.7 cm)
5"
2"
(12.7 cm)
(5.1 cm)
36"
(91.4 cm)
cooktop
height
42"
(106.7 cm)
overall
height
For minimum
clearance to
top of cooktop,
see NOTE.
Ref. W10121806
10-25-07
