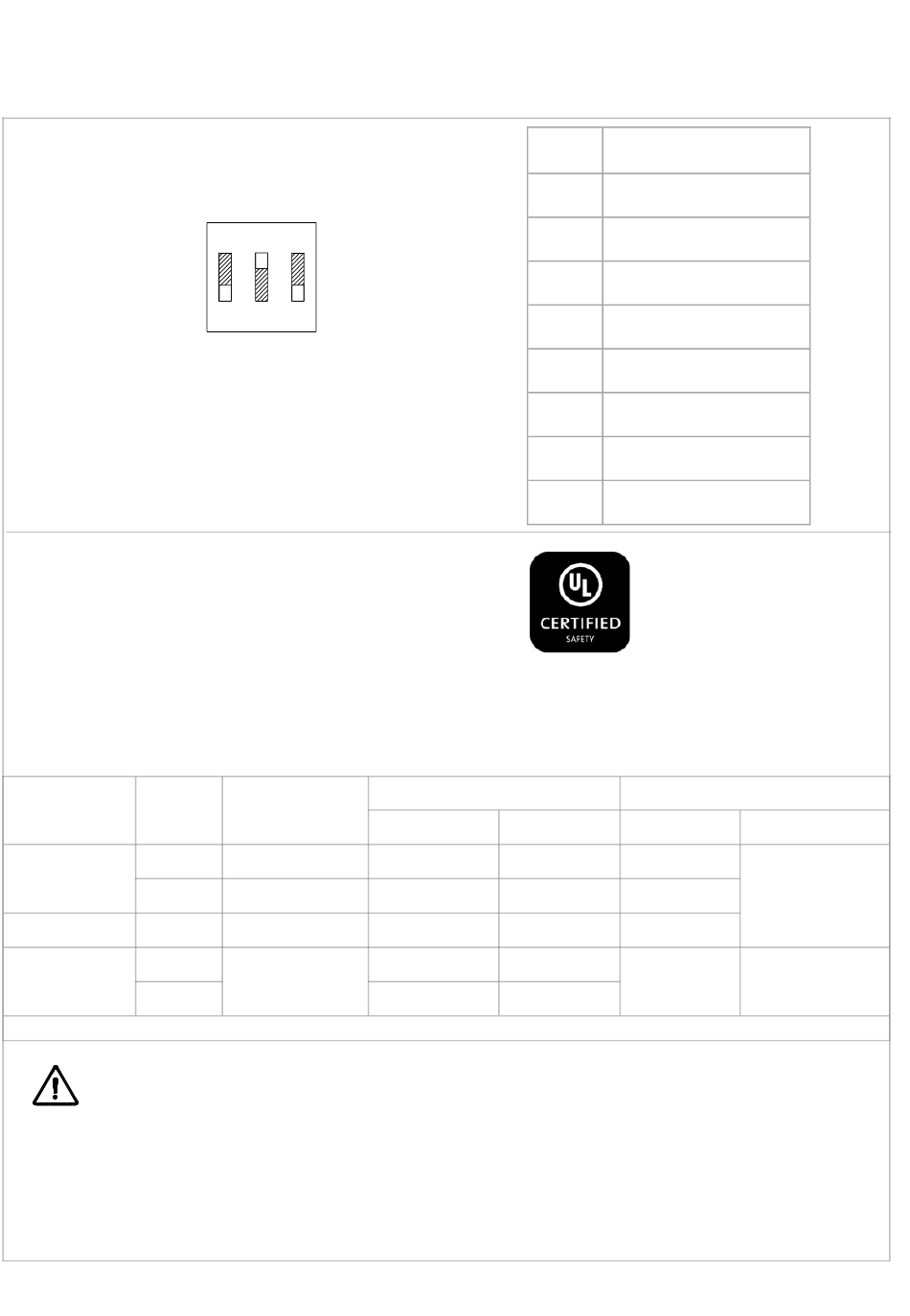

S1 - LED Flash Mode Settings (AC & DC)
The Flash Mode Dip Switch can be changed to set the desired
flash pattern
Flash Mode DIP Switch – Shown with 1-OFF, 2-ON, 3-OFF (0 1 0),
This denotes Flash mode 1Hz. For further flash modes refer to
table:
• All models are approved for use as Audible Signal and Visual Appliance
for use as General Signaling: UL464A & CSA C22.2 No 205-17
• Type 4 / 4X / 3R / 13, IP66
• -40°C to +66°C / -40°C to +151°F
General Signaling Canada:
DL105HDC: -40°C to +55°C / -40°F to +131°F
DL105HAC: -40°C to +40°C / -40°F to +104°F
• To maintain Ingress Protection, cable entries must be fitted with suitably rated cable glands or stopping plugs
• Mounting - Units can be mounted using the 2-off 10 x 7mm obround holes in the mounting lugs.
• EOL Monitoring (DC Only): End of Line Devices may be fitted between the +ve & -ve terminals of the PCBA. Please ensure that the device
legs meet the wire size range stated for the connection terminals and are fitted correctly in order to avoid a short. Refer to the compatible
control panel specification for EOL device values and ratings
Nominal
Model
Voltage
12V dc
DL105HDC024
24V dc
DL105HDC048
48V dc
115V ac
DL105HAC230
230V ac
*Nominal Voltage, 1Hz Flash Pattern & Tone 12;
Attention: Installation must be carried out by an electrician in compliance with the National Electrical Code, NFPA 70 or CSA 22.1 Canadian Electrical
Code, Part I, Safety Standard for Electrical Installations, Section 32. / L'installation doit exclusivement être réalisée par du personnel qualifié, conformé
ment au code national d'électricité américain, NFPA 70 ou CSA 22.1 Code canadien de l'électricité, première partie, norme de sécurité relative aux
installations électriques, Section 32
E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH
ON
1 2 3
Nominal Operating Current*
Voltage Range
10-14Vdc
16-33Vdc
48-60Vdc
48 - 260Vac
50/60Hz
#
Worst-case input voltage and worst case flash pattern
Switch
0 0 0
1 0 0
0 1 0
1 1 0
0 0 1
1 0 1
0 1 1
1 1 1
Beacon
Sounder
79.5mA
17mA
87mA
33.5mA
60mA
113mA
34mA
25mA
19mA
17mA
sales@e2s.com
e2s.com
Flash Mode
Steady on
Blinking
Flashing 1Hz*
Flashing 1.5Hz*
Flashing - Double Strike
Flashing - Triple Strike
Flashing 2Hz*
Flashing - Temporal
#
Max Operating RMS
Beacon
Sounder
168mA
183mA
125mA
115mA
166mA
42.5mA
D218-00-351-IS Issue 1 10/05/2021
