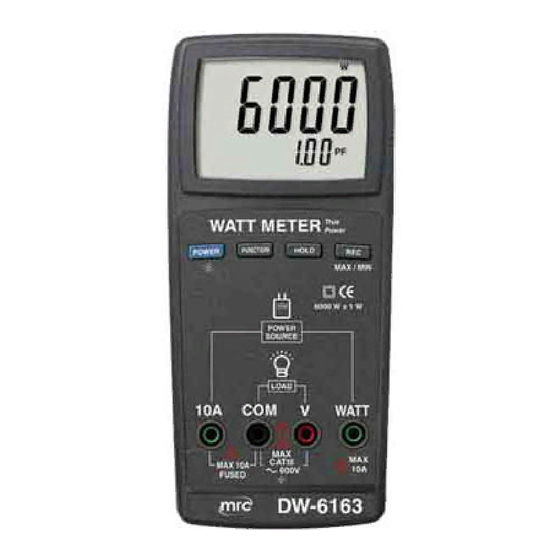

MRC DW-6163 Operation Manual

6000 w x 1 w, pf, acv, aca watt meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

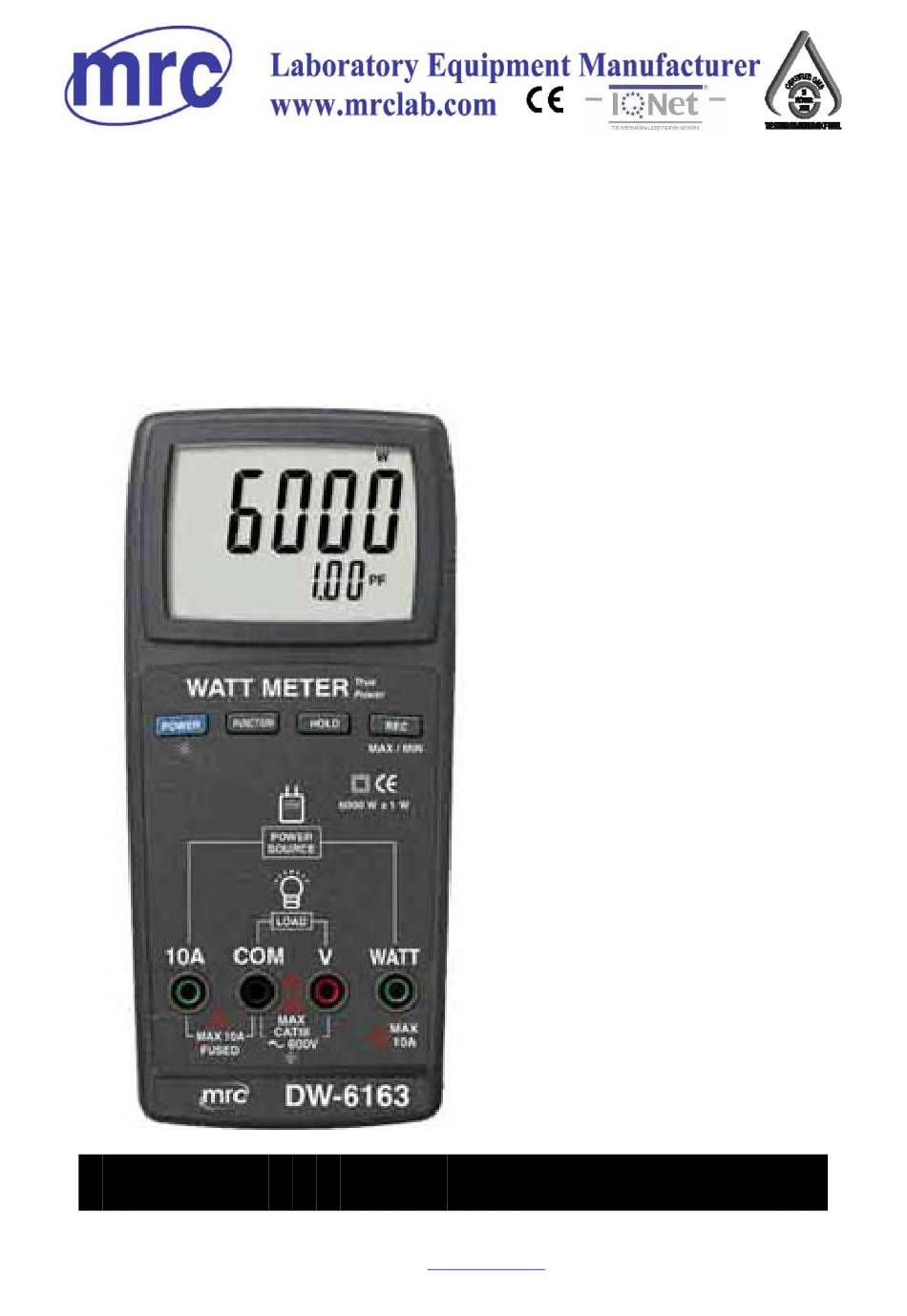

6000 W x 1 W, PF, ACV, ACA
WATT METER
Model : DW-6163
OPERATION MANUAL
3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529
Your purchase of this
WATT METER marks a
step forward for you
into
precision measurement.
Although this METER is
a complex and delicate
instrument, its durable
structure
many years of use if
p r o p e r
t e c h n i q u e s
developed. Please read
t h e
instructions
and always keep this
manual
reach.
mrc@mrclab.com
MRC. 5.19
the
field
of
will
allow
o p e r a t i n g
a r e
f o l l o w i n g
carefully
within
easy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DW-6163 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MRC DW-6163

Summary of Contents for MRC DW-6163

  • Page 1 6000 W x 1 W, PF, ACV, ACA WATT METER Model : DW-6163 Your purchase of this WATT METER marks a step forward for you into field precision measurement. Although this METER is a complex and delicate instrument, its durable...
  • Page 2 Caution Symbol Caution : * Risk of electric shock ! Caution : * Do not apply the overload voltage, current to the input terminal ! * Remove test leads before open the battery cover ! * Cleaning - Only use the dry cloth to clean the plastic case ! Environment Conditions * Installation Categories III-600V.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. FEATURES............... 1 2. SPECIFICATIONS............2-1 General specifications..........2-2 Electrical specifications..........2 3. FRONT PANEL DESCRIPTION..........4 3-1 Display................4 3-2 POWER/Backlight button..........4 3-3 FUNCTION button............4 3-4 HOLD button............... 4 3-5 RECORD button ( MAX. / MIN. )........4 3-6 LOAD terminal............

  • Page 4: Features

    1. FEATURES * Professional precision WATT meter with 1 W resolution digital display , battery operated. * LSI - circuit provides high reliability and durability. * Directly operation. * Measurement : WATT ( AC ) : 6000W x 1W. ACV : 600V x 0.1 V . ACA : 10 A x 10 m A .

  • Page 5: Electrical Specifications

    Data Hold Freeze the display reading . Memory Recall Maximum & Minimum value . Data output RS232 / USB PC Computer interface. * Connect the optional RS232 cable UPCB - 02 will get the RS232 plug. * Connect the optional USB cable USB - 01 will get the USB plug.
  • Page 6 V/A ( TRUE RMS ) Range Resolution Accuracy ACV 600 V 0.1 V ± ( 0.3 % + 0.3 V ) ACA 10 A 0.01 A ± ( 0.3 % + 0.03 A ) * Auto range. * ACV, ACA accuracy is test under input signal is sine wave, 50/ 60 Hz.

  • Page 7: Front Panel Description

    3. FRONT PANEL DESCRIPTION Fig. 1 3-1 Display 3-2 POWER / Backlight button 3-3 FUNCTION button 3-4 HOLD button 3-5 RECORD button ( MAX. / MIN. ) 3-6 LOAD terminal 3-7 POWER SOURCE terminal 3-8 RS-232 output terminal 3-9 DC 9V Power Adapter input socket 3-10 Battery Cover / Compartment 3-11 STAND...

  • Page 8: Measureing Procedures

    4. MEASURING PROCEDURE 4-1 Power ON/OFF 1)Press the POWER button ( 3-2, Fig. 1 ) more than 1.5 sec to Turn ON the meter. 2)Press the POWER button ( 3-2, Fig. 1 ) more than 1.5 sec to Turn OFF themeter. 4-2 ACV measurement procedure 1)Press the POWER button ( 3-2, Fig.1 ) more than 1.5 sec to Turn ON the meter.

  • Page 9: Watt Measurement Procedure

    4-4 Watt measurement procedure 1)Press the POWER button ( 3-2, Fig. 1 ) more than 1.5 sec to Turn ON the meter. 2)Make sure your equipment work voltage, such as 110 V or 220 V. 3)Turn off the POWER SOURCE. 4)Plug in the LOAD ( equipment ) to V terminal and COM terminal.

  • Page 10: Backlight On/Off

    2)With the " REC. " symbol on the display : a) Press the " REC Button " ( 3-5, Fig. 1 ) once, the " REC. MAX. " symbol along with the maximum value will appear on the display. If intend to delete the maximum value, just press the "...

  • Page 11: Maintenance

    5. MAINTENANCE 1)This WATT METER is intended for measuring the TURE RMS POWER CONSUMPTION. At the same , It can let you know .how many effect from your equipment. 2)When measuring POWER CONSUMPTION. Equipment working voltage must be recheck again, before turn on the equipment power switch.
  • Page 12 Meter (9W 'D" Connector) Center Pin......Pin 4 (3.5 mm jack plug) Ground/shield.......Pin 2 2.2 K resistor Pin 5 The 16 digits data stream will be displayed in the following format : D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 Each digit indicates the following status : End Word D1 &...

  • Page 13: Battery Replacement

    RS232 FORMAT : 9600, N, 8, 1 Baud rate 9600 Parity No parity Data bit no. 8 Data bits Stop bit 1 Stop bit 7. BATTERY REPLACEMENT 1)When the Top of left corner on LCD display show " " , it is necessary to replace the battery , However in -spec.
