Tiger BENGAL JD6110-20M/R MY20 Mounting And Operating Instructions

Brute w/ independent hydraulics and bumper tank

page of 223

/ 223
Bookmarks

Quick Links

Download this manual

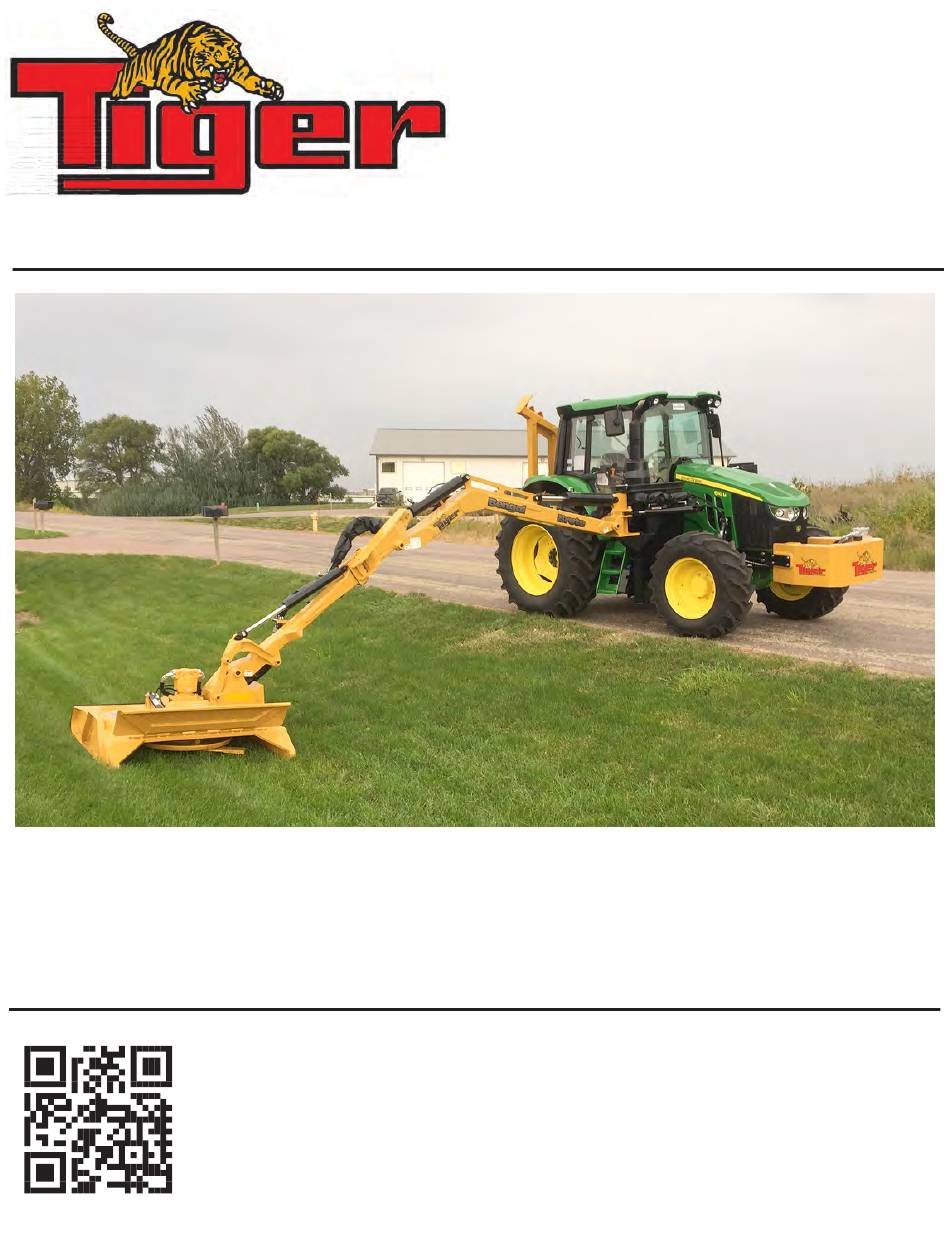

PARTS LISTING WITH

MOUNTING AND OPERATING

INSTRUCTIONS

JD6110-20M/R MY20

BENGAL BRUTE

W/ INDEPENDENT HYDRAULICS

Current as of 11/17/2021

Tiger Corporation

3301 N. Louise Ave.

Sioux Falls, SD 57107

1-800-843-6849

1-605-336-7900

www.tigermowers.com

AND BUMPER TANK

06011064

Summary of Contents for Tiger BENGAL JD6110-20M/R MY20

Page 1 JD6110-20M/R MY20 BENGAL BRUTE W/ INDEPENDENT HYDRAULICS AND BUMPER TANK Current as of 11/17/2021 PARTS LISTING WITH MOUNTING AND OPERATING INSTRUCTIONS Tiger Corporation 3301 N. Louise Ave. Sioux Falls, SD 57107 1-800-843-6849 1-605-336-7900 www.tigermowers.com 06011064...
Page 2 TO THE OWNER / OPERATOR / DEALER All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents.
Page 3 • Classify the problem • Hydraulic, electrical or mechanical - Read the trouble shooting section • Tractor or Truck chassis - Contact vehicle dealer • If unable to correct the problem yourself, contact your local Tiger Dealer after gathering: • Machine model _______________________ •...
Page 5: Table Of Contents
PARTS SECTION______________________________________ COMMON PARTS SECTION____________________________ WARRANTY INFORMATION_____________________________ This symbol means: CAUTION – YOUR SAFETY IS AT RISK! When you see this symbol, read and follow the associated instructions carefully or personal injury or damage may result. Tiger is a registered trademark.
Page 8 SAFETY GENERAL SAFETY INSTRUCTIONS AND PRACTICES A careful operator is the best operator. Safety is of primary importance to the manufacturer and should be to the owner/operator. Most accidents can be avoided by being aware of your equipment, your surroundings, and observing certain precautions.
Page 9 SAFETY Operator Safety TO AVOID SERIOUS INJURY OR DEATH DO THE FOLLOWING: • READ, UNDERSTAND and FOLLOW Operator's Manual instructions, Warnings and Safety Messages. • WEAR SAFETY GLASSES, safety shoes, hard hat, hearing protection and gloves when operating or repairing equipment •...
Page 10 SAFETY CRUSHING HAZARDS TO AVOID SERIOUS INJURY OR DEATH FROM FALLING OFF TRACTOR, EQUIPMENT RUN OVER, ROLLOVER AND CRUSHING BY FALLING WING OR IMPLEMENT: • USE ROPS and SEAT BELT equipped tractors for mowing operations. • KEEP ROPS lock in up position. •...
Page 11 SAFETY CONNECTING OR DISCONNECTING IMPLEMENT SAFETY TO AVOID SERIOUS INJURY OR DEATH FROM BEING CRUSHED BY TRACTOR OR IMPLEMENT: WHEN connecting mower head to the boom • KEEP BYSTANDERS AWAY from tractor and mower. • Ensure there is enough room to lift and swing the boom with out hitting objects BEFORE connecting and disconnecting the mower head or boom: •...
Page 12 SAFETY THROWN OBJECTS HAZARDS ROTARY MOWERS CAN THROW OBJECTS 300 FEET OR MORE UNDER ADVERSE CONDITIONS. TO AVOID SERIOUS INJURY OR DEATH TO OPERATOR OR BYSTANDERS FROM THROWN OBJECTS: • KEEP bystanders 300 feet away STOP MOWING IF PASSERSBY ARE WITHIN 300 FEET UNLESS: •...
Page 13 SAFETY THROWN OBJECTS HAZARDS (Continued) MOWER OPERATION: • DO NOT exceed mower's rated Cutting Capacity or cut non-vegetative material. • USE ENCLOSED TRACTOR CABS when two or more mowers are operating in mowing area. • Do Not mow in areas where bees or insects may attack unless you WEAR PROTECTIVE CLOTHING or use enclosed tractor cab.
Page 14 SAFETY RUN OVER HAZARDS TO AVOID SERIOUS INJURY OR DEATH FROM FALLING OFF TRACTOR OR EQUIPMENT RUN OVER: • USE ROPS and SEAT BELT equipped tractors for mowing operations. • KEEP ROPS locked in UP position. • ONLY start tractor while seated in tractor seat. •...
Page 15 SAFETY PTO ENTANGLEMENT HAZARDS KEEP AWAY FROM ROTATING DRIVELINES AND ELEMENTS TO AVOID SERIOUS INJURY OR DEATH: hands, feet and body AWAY from rotating blades, drivelines and parts until all moving STAY AWAY KEEP elements have stopped. • STOP, LOOK and LISTEN before approaching the mower to make sure all rotating motion has stopped. •...
Page 16 SAFETY MOWER BLADE CONTACT HAZARDS KEEP AWAY FROM ROTATING BLADES TO AVOID SERIOUS INJURY OR DEATH FROM BLADE CONTACT: • STAY AWAY and KEEP HANDS, FEET and BODY AWAY from rotating blades, drivelines and parts until all moving elements have stopped. •...
Page 17 SAFETY HIGH PRESSURE OIL LEAK HAZARD TO AVOID SERIOUS INJURY OR DEATH FROM HIGH PRESSURE HYDRAULIC OIL LEAKS PENERATING SKIN: • DO NOT OPERATE equipment with oil or fuel leaks. • KEEP all hydraulic hoses, lines and connections in GOOD CONDITION and TIGHT before applying system pressure.
Page 18 SAFETY ELECTRICAL & FIRE HAZARDS TO AVOID SERIOUS INJURY OR DEATH FROM ELECTRICAL CONTACT WHEN WORKING AROUND ELECTRICAL POWER LINES, GAS LINES AND UTILITY LINES: • INSPECT mowing area for overhead or underground electrical power lines, obstructions, gas lines, cables and Utility, Municipal, or other type structure. •...
Page 19 SAFETY TRANSPORTING HAZARDS TO AVOID SERIOUS INJURY AND DEATH WHEN TOWING OR TRANSPORTING EQUIPMENT: • KEEP transport speed BELOW 20 mph to maintain control of equipment. • REDUCE SPEED on inclines, on turns and in poor towing conditions. • DO NOT TOW with trucks or other vehicles. •...
Page 20 SAFETY HAZARDS WITH MAINTENANCE OF IMPLEMENT AVOID SERIOUS INJURY OR DEATH FROM COMPONENT FAILURE BY KEEPING IMPLEMENT IN GOOD OPERATING CONDITION PERFORMING PROPER SERVICE, REPAIRS MAINTENANCE. BEFORE PERFORMING SERVICE, REPAIRS AND MAINTENANCE ON THE IMPLEMENT: STOP ENGINE AND PTO • , engage parking brake, lower implement, allow all moving parts to stop and remove key before dismounting from tractor.
Page 21 Tiger mowers use balanced and matched system components for blade carriers, blades, cuttershafts, knives, knife hangers, rollers, drivetrain components, and bearings. These parts are made and tested to Tiger specifications. Non-genuine "will fit" parts do not consistently meet these specifications. The use of “will fit”...
Page 22 SAFETY Decal Location NOTE: Tiger supplies safety decals on this product to promote safe operation. Damage to the decals may occur while in shipping, use, or reconditioning. Tiger cares about the safety of its customers, operators, and bystanders, and will replace the safety decals on this product in the field, free of charge (Some shipping and handling charges may apply).
Page 23 WARNING Blade Rotation LOGO Made in the USA LOGO Tiger Genuine Parts 22839 INSTRUCT Use Hand Grease Gun 32709 WARNING Use Genuine Tiger Parts 6T3221 INSTRUCT Lubrication Instructions SERIAL PLATE Serial Number Plate 06550058 INSTRUCT Blue Dot 06550057 INSTRUCT Red Dot...
Page 24 SAFETY 50”& 63” Flail ITEM PART NO. QTY. TYPE DESCRIPTION 24028 DANGER Thrown Object Hazard,Deflectors 32709 WARNING Use Genuine Tiger Parts 33224 DANGER Blades, Thrown Object D637 WARNING Disconnect Hydraulic Solenoid LOGO Tiger Logo 00758194 WARNING Pinch Point Hazard LOGO 50”...
Page 30 SAFETY Federal Laws and Regulations This section is intended to explain in broad terms the concept and effect of federal laws and regulations concerning employer and employee equipment operators. This section is not intended as a legal interpretation of the law and should not be considered as such.
Page 31: Assembly / Mounting Section
JD6110-20 M/R MY20 BENGAL BRUTE ASSEMBLY SECTION Assembly Section 2-1...
Page 32 Always use a floor jack, hoist or fork lift to lift and raise heavy parts. Read and understand the entire Assembly Section instructions before attempting to mount your Tiger mower. Refer to the Parts Section of this manual for detailed illustrations to locate all parts.
Page 33 ASSEMBLY FRONT CRANKSHAFT PULLEY Tiger has found that the front crankshaft pulley used by John Deere will not allow for the installation of a front drive system. You will need to order a different pulley, washer and bolt from John Deere to allow for a front drive to be installed on your tractor.
Page 34 ASSEMBLY DRIVESHAFT AND FRONT PUMP MOUNTING Install spacer plate on tractor engine using bolts and lockwashers as shown in Parts Section. Grease sleeve section of the driveshaft and install from the side of the engine compartment. Once you have the sleeve section in place, bolt to spacer plate using bolts and lockwashers as shown in Parts Section.
Page 35 ASSEMBLY POLYCARBONATE SAFETY WINDOW NOTE: Installing a boom mower requires that all of the right side windows be replaced or protected with a polycarbonate window. This should be done before mounting the mainframe. 1. Disconnect gas shock at door. Remove the right side cab door/window glass from tractor cab by removing hinge pins.
Page 36 ASSEMBLY APPLICATION OF LOCTITE 2047 MOWER MAINFRAME MOUNTING BOLTS All mower mainframe mounting bolts shall be secured utilizing Loctite 2047 and torqued per the Torque Chart in the maintenance section. Shake bottle for 60 seconds before use. To prevent clogging of nozzle, do not allow tip to touch metal surfaces during application.
Page 37 This is necessary for the mainframe to be installed without damaging the tubes. Remove the John Deere part and replace it with the Tiger part using two provided bolts #06530005. After replacing the John Deere tube guide with the Tiger part, replace the exhaust heat shield.
Page 38 ASSEMBLY SWITCHBOX WIRING Power for the switchbox is accessed through the port located on the right rear of the cab. A John Deere plug is used, part number RE67651. DO NOT connect the plug to the cab port until the wiring is completed. The wires in the plug are colored RED, BLACK and ORANGE. IMPORTANT: The hot wire will be the RED wire or the ORANGE wire.
Page 39 ASSEMBLY CONTINUOUS DUTY SOLENOID SWITCH The solenoid switch is mounted near the battery behind the steps on the right side of the tractor.(see photos below). Secure with hardware provided. (ASM-JD-0083 JD6M MY20) . Route wires to and from the Continuous Duty Solenoid Switch as shown below. A.) ORANGE 10 GA.
Page 40 ASSEMBLY CABLE CONTROL LEVER STAND Remove the cup holder from the right corner post of the cab. The cup holder can be relocated to the left side of the cab on the floor. The hole created in the corner post will be used to attach the cable control support bracket.
Page 41 ASSEMBLY VALVE MOUNTING Remove the plug from the second port in the rear of the Husco valve and place it in the port in the front of the valve. Secure the valve bracket to the tractor with hardware shown in the Parts Section of the manual.
Page 42 ASSEMBLY 6110-30M/R VALVE MOUNTING The mounting bracket for JD 6110-30M/R series tractors features two long legs which need to be attached as shown in the photo below. Secure the bracket to the tractor with hardware shown in the Parts Section of the manual. Center the Danfoss valve on the valve plate. Align the holes on the valve with the plate holes and secure the lift valve on top of the mounting plate.
Page 43 ASSEMBLY JOYSTICK SWITCHBOX MOUNTING Locate the two holes in the right front corner of the cab frame. These will be the mounting holes for the two mounting bolts of the switchbox bracket. See picture below. Mount the bracket using the hardware supplied, as noted in the Parts Section. (ASM-JD-0081) Assembly Section 2-13...
Page 44 ASSEMBLY JOYSTICK CONTROL MOUNTING Mounting the adjustable joystick control requires that the right armrest be modified and an additional bracket attached. The armrest must be removed by sliding off the plastic cover and removing the capscrew from the lower right side of the seat. This will leave the armrest loose so it can be removed.
Page 45 ASSEMBLY BOOM JOYSTICK CONTROL CALIBRATION SUB-D This Electronic control valve is now equipped with higher-resolution actuators on Main Boom, Secondary Boom, Deck Roll, and Swivel functions. These actuators have active fault monitoring. The Deck Shield section does not have active fault monitoring. The joystick is unchanged and provides a ratio-metric voltage signal.
Page 46 ASSEMBLY BOOM JOYSTICK CONTROL CALIBRATION ( CONTINUED Run tractor at normal operating RPM to adjust the settings as follows. Set the dead band compensation potentiometer first. Set the dead band compensation potentiometer at 50%, or halfway between full clockwise and full counterclockwise.
Page 47 ASSEMBLY BOOM JOYSTICK CONTROL CALIBRATION ( CONTINUED MAIN BOOM: “A” Port, Boom Up: 8-10 Seconds (Note: Extend secondary boom completely; roll deck to be level with ground, and lower main boom until deck is on ground. Now index main boom “up” function and determine the time required for main boom to rise completely.) “B”...
Page 48 ASSEMBLY BOOM JOYSTICK DIAGRAM (ASM-C-0082A) Assembly Section 2-18...
Page 49 ASSEMBLY COOLER LOCATION The cooler mount and cooler are located on the left side of the tractor, where the toolbox was on the tractor’s fuel tank. Remove the fuel tank support tube to install the mainframe, axle braces and left riser. Re-attach the fuel tank support tube to the left riser. Use the hardware from the toolbox mounting bracket to use while installing cooler.
Page 50 ASSEMBLY (ASM-C-0023) WHEEL WELL HYDRAULIC TANK INSTALLATION Install all fittings and tubes into tank and tank filter as shown in the Parts Section illustration. Insert tank sight glass onto the tractor side of the tank. Place the tank in the mounting bracket on the axle brace as shown in the Parts Section. Secure the tank with the hardware provided.
Page 51 ASSEMBLY FILLING HYDRAULIC RESERVOIR Refer to the Maintenance Section for filling specifications and hydraulic oil requirements. NOTE: Starting or running your Tiger mower before filling reservoir will cause serious damage to the hydraulic pump. (ASM-C-0004hydro resrv) INSTALLING O-RING FITTINGS Installing straight, 45º and 90º O-rings requires that the O-ring and washer be up against the swivel body.
Page 52 ASSEMBLY WHEEL WELL HOSE ROUTING Hoses travel along the right hand wheel well from the lift valve to the mainframe and boom. Hose clamps #06520536 are used to route the hoses as shown below. Clamps 1 and 2 (near the lift valve) use 1/4”...
Page 53 ASSEMBLY HOSE COVERING Secure hoses together with zip ties wherever loose. Wrap the hoses between the swivel and main boom with the hose cover provided. Wrap the hoses between the main boom and secondary boom with the hose cover provided. Where hoses may contact the frame or other edges, wrap with split hose and secure with hose clamps or zip ties.
Page 54 ASSEMBLY RS AXLE BRACE MOUNTING The rear stow axle braces are to be mounted under the rear axle of the tractor. The other end of the axle brace mounts on the outside of the lower rear corners of the mainframe. After attaching the boomrest, it should fit tightly and level under the tractor.
Page 55 ASSEMBLY MAIN BOOM INSTALLATION Using a hoist, install the boom swivel into the mainframe as shown in the Parts Section. Line up holes in swivel and mainframe for large swivel pin and insert pin. Secure with hardware as shown. Attach the inner end of the main boom to the swivel bracket with the cylinder anchors positioned upward, and at a right angle to the tractor.
Page 56 ASSEMBLY FINAL PREPARATION FOR OPERATION Place operator’s safety and operation decals on the steering column and side console where they are clearly visible to the operator. These decals should be understood by each operator of the machine in conjunction with the Safety and Operation Sections of this book. The decals are to be maintained in good condition as a reminder to the operator, and should be replaced if damaged.
Page 58 TIGER BOOM MOWER OPERATING INSTRUCTIONS Tiger Booms are manufactured with quality material by skilled workers. The Boom is designed to attach to a tractor and operate various heads for a wide range of vegetative maintenance applications. The boom and heads are equipped with safety warning decals, protective deflectors, shields, and other safety features to provide operator and passerby protection, however, no shielding is 100% accurate.
Page 59 OPERATION 1.OPERATOR REQUIREMENTS Safe operation of the unit is the responsibility of a qualified operator. A qualified operator has read and understands the implement and tractor Operator’s Manuals and is experienced in implement and tractor operation and all associated safety practices. In addition to the safety messages contained in this manual, safety signs are affixed to the implement and tractor.
Page 60 OPERATION 2.TRACTOR REQUIREMENTS In addition to tractor horsepower and size required to operate the boom unit, the tractor must also be properly equipped to provide operator protection, to alert approaching vehicle drivers of the tractor’s presence, and to ensure tractor stability when mowing with the boom fully extended. Tractor Requirements and Capabilities •...
Page 61 OPERATION Never operate the Tractor and Mower Unit without an OPS (Operators Protective Structure) or Cab to prevent injury from objects thrown from ground or from overhead trimming. Stop mowing if workers or passersby are within 300 feet. (SBM-9) 2.3 Tractor Lighting and SMV Emblem If the tractor will be operated near or traveled on a public roadway it must be equipped with proper warning lighting and a Slow Moving Vehicle (SMV)
Page 62 OPERATION 2.4 Tractor Ballast To ensure tractor stability when operating on flat surfaces the left rear tractor tire MUST exert a minimum down force (weight) of 1500 lbs. on the ground when the tractor is on level ground, its boom is fully extended and the mower head is horizontal and two feet above the ground.
Page 63 OPERATION 3.1 Boarding the Tractor Use both hands and equipped handrails and steps for support when boarding the tractor. Never use control levers for support when mounting the tractor. Seat yourself in the operator’s seat and secure the seat belt around you.
Page 64 OPERATION 4.STARTING THE TRACTOR The operator must have a complete understanding of the placement, function, and operational use of all tractor controls before starting the tractor. Review the tractor operator’s manual and consult an authorized dealer for tractor operation instructions if needed. Essential Tractor Controls: •...
Page 65 OPERATION 5.CONNECTING ATTACHING HEADS TO THE BOOM 1. Start by attaching the pivot bracket(3) to the boom(1) using pin(5) and hardware. Next attach the cylinder to the pivot bracket(3) using pin(8) and roll pins. 2. Then attach the dogleg(4) to the mower(2) using pin(7) and hardware.
Page 66 OPERATION Periodically inspect all moving parts for wear and replace when necessary with authorized service parts. Look for loose fasteners, worn or broken parts, and leaky or loose fittings. Make sure all pins have attaching hardware. Serious injury may occur from not maintaining this machine in good working order.
Page 67 OPERATION 6.2 Boom Unit Pre-Operation Inspection and Service Inspect and service the boom arm and head prior to operation. Damaged and/or broken parts should be repaired and/or replaced immediately. To ensure the unit is ready for operation, conduct the following: OPS-B- 0020 Periodically inspect all moving parts for wear and replace when necessary with authorized service parts.
Page 68 OPERATION Relieve hydraulic pressure prior to doing any maintenance or repair work on the Implement. Place the Mower Head on the ground or securely supported on blocks or stands, disengage the PTO, and turn off the engine. Push and pull the control Levers or Joystick several times to relieve pressure prior to starting any maintenance or repair work.
Page 69 OPERATION Do not operate this Equipment with hydraulic oil or fuel leaking. Oil and fuel are explosive and their presence could present a hazard. Do not check for leaks with your hand! High-pressure oil streams from breaks in the line could penetrate the skin and cause tissue damage including gangrene.
Page 70 OPERATION ROTARY HEAD INSPECTION • Inspect blades and blade bolts for looseness and excessive wear. Rotate to 90° to make for checking easier. Replace damaged, worn, and missing blades as complete sets to maintain rotary balance. • Ensure motor bolts and nuts are tightened to the appropriate torque.
Page 71 OPERATION FLAIL HEAD INSPECTION • Inspect blades and blade bolts for looseness and excessive wear. Rotate to 90° to make for checking easier. Replace damaged, worn, and missing blades as complete sets to maintain cuttershaft balance. • Ensure rubber deflectors are in position and not damaged.
Page 72 OPERATION 6.3 Cutting Component Inspection Inspect blade pan and blade assembly for the following: OPS-U-0031 Inspect the Blades daily for abnormal wear. REPLACE BOTH BLADES on that carrier IMMEDIATELY if either blade has: • Become bent or deformed from it’s original shape or •...
Page 73 OPERATION Tractor PRE-OPERATION Inspection Mower ID#________________ Make ____________________ Date: ________________ Shift ____________________ Before conducting the inspection, make sure the tractor engine is off, all rotation has stopped and the tractor is in park with the parking brake engaged. Make sure the mower is resting on the ground or securely blocked up and all hydraulic pressure has been relieved.
Page 74 OPERATION Boom PRE-OPERATION Inspection Mower ID#________________ Make ____________________ Date: ________________ Shift ____________________ Before conducting the inspection, make sure the tractor engine is off, all rotation has stopped and the tractor is in park with the parking brake engaged. Make sure the mower is resting on the ground or securely blocked up and all hydraulic pressure has been relieved.
Page 75 A control lever decal similar to the one shown below should be near the control valve to remind the operator of the lever functions. The main control valve on the Tiger Boom Mower has four sections with tapered spools, located near the right side of the steering wheel.
Page 76 OPERATION 6.4 Switchbox The Safety Shield lever opens and closes the shield located on the front of the cutter head. When moving at or near the ground, always have the shield in th closed position. When mowing in the brush or in trees above ground level the shield may be opened for easier cutting.
Page 77 OPERATION LEVER #1 MAIN BOOM LEVER #2 SECONDARY BOOM LEVER #3 DECK ROLL Boom Operation Section 3-21 ©2013 Alamo Group Inc.
Page 79 Install the manual valve handle onto valve and operate the functions individually to stow boom. After boom is stowed in rest, transport the unit to the maintenance facility and contact your Tiger dealer for assistance. DO NOT attempt to operate the valve manually for mowing operations! Note: Pushing manual valve handles “out”...
Page 80 OPERATION 7.1 Switch Box and Joystick Control The diagrams below and on the next page show the functions that are performed through the use of the joystick controller. The Safety Shield switch opens and closes the shield located on the front of the cutter head. When moving at or near the ground, always have the shield in the closed position.
Page 82 OPERATION JOYSTICK LEFT/RIGHT MOVES SECONDARY BOOM LEFT JOYSTICK ROLLER MOVES DECK ROLL RIGHT JOYSTICK ROLLER MOVES BOOM SWIVEL Boom Operation Section 3-26 ©2013 Alamo Group Inc.
Page 83 OPERATION RIGHT JOYSTICK ROLLER WHILE PRESSING BUTTON MOVES BOOM KNUCKLE ON A LEGAL REAR STOW BOOM SHIELD SWITCH(on switch box) OPERATES SAFETY SHIELD 8.DRIVING THE TRACTOR AND IMPLEMENT Safe tractor transport requires the operator to possess a thorough knowledge of the model being operated and precautions to take while driving with an attached implement.
Page 84 OPERATION Never operate the Tractor or Implement until you have read and completely understand this Manual, the Tractor Operator’s Manual, and each of the Safety Messages found in the Manual or on the Tractor and Implement. Learn how to stop the tractor engine suddenly in an emergency.
Page 85 OPERATION Transport only at speeds where you can maintain control of the equipment. Serious accidents and injuries can result from operating this equipment at high speeds. Understand the Tractor and Implement and how it handles before transporting on streets and highways. Make sure the Tractor steering and brakes are in good condition and operate properly.
Page 86 OPERATION 8.2 Brake and Differential Lock Setting Make sure the tractor brakes are in good operating condition. Tractor brakes can be set to operate independently allowing single rear wheel braking action or locked together to provide simultaneous rear wheel braking. FOR MOST DRIVING AND OPERATING CONDITIONS, THE BRAKE PEDALS SHOULD BE LOCKED TOGETHER TO PROVIDE THE MOST EFFECTIVE BRAKING ACTION.
Page 87 OPERATION 8.3 Driving the Tractor and Boom Start off driving at a slow speed and gradually increase your speed while maintaining complete control of the tractor. Never operate the tractor at speeds that cannot be safely handled or which will prevent the operator from stopping quickly during an emergency.
Page 88 OPERATION Never Leave the mower unattended while the head is in the raised position. The mower could fall causing serious injury to anyone who might inadvertently be under the mower . (SBM-4) Always keep a careful lookout and use extreme care when working around overhead obstructions.
Page 89 OPERATION Avoid mowing in reverse direction when possible. Check to make sure there are no persons behind the mower and use extreme care when mowing in reverse. Mow only at a slow ground speed where you can safely operate and control the tractor and mower. Never mow an area that you have not inspected and removed debris or foreign material.
Page 90 OPERATION Mow at the speed that you can safely operate and control the tractor and mower. The correct mowing speed depends on terrain condition and grass type, density, and height of cut. Normal ground speed range is from 2 to 5 mph(3-8 kph). Use slow mowing speeds when operating on or near steep slopes, ditches, drop-offs, overhead obstructions, power lines, or when debris and foreign objects are to be avoided.
Page 91 OPERATION 9.4 Mower Operation The rotating parts in this machine have been designed and tested for rugged use. However, they could fail upon impact with heavy solid objects-such as steel guard rails, concrete abutments,etc., causing them to be thrown at a very high velocity. Never allow cutter head to contact such objects. Inspecting the cutting area for such objects and removing them prior to mowing can help eliminate these potiential hazards.
Page 92 OPERATION For cutting brush, it is usually best to stop the tractor and swivel the boom and mower into foilage. The horizontal positioning action of the boom is designed to position the cutting head and provide a limited pressure relief when excessive pressure is applied to the boom. DO NOT use excessive force when positioning cutting head into heavy branches or stumps.
Page 93 OPERATION When cutting trees and brush approach material to be cut with the head perpendicular to material. The cutting edge of the blades should be the only elements in contact with material. The blade bar should not contact with material. The mower head blades should...
Page 94 OPERATION Do not allow knives to cut down to the ground. Position ground roller to maintain knife arc at a minimum of 2 inches above the ground. Knife contact or lug contact with ground will cause permanent damage to cutter shaft, knives, and knife attachment parts. 9.7 63”...
Page 95 OPERATION 9.8 Shutting Down the Attached Head- For Standard Equipment To shut down attached mower head, first bring the tractor to a complete stop. Decrease engine RPM to idle then disengage cutterhead. The mower head will come to a complete stop within a suitable amount of time.
Page 96 OPERATION 10.TRACTOR, BOOM, AND ATTACHED HEAD STORAGE Properly preparing and storing the unit at the end of the season is critical to maintaining its appearance and to help ensure years of dependable service. The following are suggested storage procedures: • Thoroughly clean all debris from boom and head to prevent damage from rotting grass and standing water.
Page 97 OPERATION 11.1 Placing Boom Arm on Boom Arm Rest - For Standard Equipment Before transporting tractor between locations, idle the tractor engine, disengage the attached head, and wait for all head motion to come to a complete stop. Place the boom in its storage cradle rest support and then turn the joystick master switch to the OFF position.
Page 98 OPERATION 11.2 Transporting on Public Roadways Extreme caution should be used when transporting the tractor and mower on public roadways. The tractor must be equipped with all required safety warning features including a SMV emblem and flashing warning lights to alert drivers of the tractor’s presence. Remember that roadways are primarily designed for automotive drivers and most drivers will not be looking out for you, therefore, you must look out for them.
Page 99 OPERATION When operating public roads, have consideration for other road users. Pull to the side of the road occasionally to allow all following traffic to pass. Do not exceed the legal speed limit set in your state or municipality for agricultural tractors. Always stay alert when transporting the tractor and mower on public roads.
Page 100 OPERATION 11.3 Hauling the Tractor and Implement Before transporting a loaded tractor and implement, measure the height and width dimensions and gross weight of the complete loaded unit. Ensure that the load will be in compliance with the legal limits set for the areas that will be traveled through.
Page 101 The tractor and the mower head should now be chained down securely to the trailer bed. If any part of this operating section, or any other section of this manual is not completely understood, contact your Tiger dealer or the address on the cover of this manual for assistance! Boom Operation Section 3-45 ©2013 Alamo Group Inc.
Page 104 Regular maintenance at the intervals mentioned will result in the maximum efficency and long life of the Tiger Mower. When you purchase a Tiger Mower you also acquire another valuable asset, Tiger’s parts organization. Our rapid and efficent service has guaranteed the customer satisfaction for many years.
Page 105 MAINTENANCE Do not modify or alter this Implement. Do not permit anyone to modify or alter this Implement, any of its components or any Implement function. (SG-8) Relieve hydraulic pressure prior to doing any maintenance or repair work on the Implement. Place the Mower Head on the ground or securely supported on blocks or stands, disengage the PTO, and turn off the engine.
Page 106 MAINTENANCE Regular Maintenance The intervals at which regular servicing should be done are based on hours of operation. Use the tractors hour meter to determine when regular servicing is required. Refer to the Detailed Maintenance section for futher instructions on greasing. Copy and use the Daily Maintenance sheet located at the end of this section.
Page 107 MAINTENANCE Ground Roller detailed maintenance section WEEKLY OR EVERY 40 HOURS ITEM SERVICE COMMENTS Rotary Spindle Lubricate Every 40 hours or weekly WEEKLY OR EVERY 50 HOURS ITEM SERVICE COMMENTS In Tank Hyd. Fluid Change Change after first 50 Filter hours only, then every 10 micron filter) 500 hours or yearly...
Page 108 MAINTENANCE TROUBLESHOOTING SYMPTOMS CAUSE REMEDY Vibration 1. Loose bolts 1. Check all bolts and tighten to recommended torque specs. 2. Cutter assembly 2a. Check for damaged blades, disc unbalanced or cuttershaft. Replace if needed. 2b. Check for wire, rope, etc. entangled in the cutter assembly Mower will not lift 1.
Page 109 MAINTENANCE Clean parts or replace if scratched. TROUBLESHOOTING (CONTINUED) SYMPTOMS CAUSE REMEDY Motor runs but 1. Belts Inspect belts and pulleys. Replace will not cut. belts and repair as needed. 2. Tensioner Adjust tensioner nut flatwasher washer is flush with top of guide. Mower turns slowly 1.
Page 111 Deck Boom Pivot & Grease Lithium Complex Mobilgrease CM-S Deck Stop Adjustment Gun Extreme Pressure Rotary & Flail) NLGI-ISO 320 Deck Spindle(Rotary) Grease Tiger Spindle Lubricant Mobilith SHC 220 part number 06540000 Boom Maintenance Section 4-9 ©2020 Alamo Group Inc.
Page 112 The proprietry UV and Abrasion Resistant Surface coating on SHIELDS SUPERCOATED polycarbonate significantly improves performance. Periodic cleaning using proper procedures and compatible cleaners are recommended to prolong service life. Tiger Corp. polycarbonate is SUPERCOATED on both sides. CLEANING THE SUPERCOAT HARD-COAT Wash with a mild solution of soap or detergent and lukewarm water.
Page 113 MAINTENANCE RECOMMENDED FILLING INSTRUCTIONS FOR HYDRAULIC RESERVIORS When filling or checking the oil level, the unit should be parked on a level surface., shut OFF, and allow sufficient time to cool to ambient temperature. Use caution when removing the pressurized breather. Do not place face over opening when removing breather.
Page 114 MAINTENANCE GREASING CUTTERSHAFT -- FLAIL MOWERS Locate grease zerks on each end of cuttershaft(s), these are located on the bearing cover. Normal conditions require one or two pumps in each bearing, using Lithium-Complex Extreme Pressure grease confirming to NLGI2-ISO 320 specifications. This is to be done with a standard grease gun daily or at 8 hour intervals.
Page 115 MAINTENANCE GREASING GROUND ROLLER SHAFT-- FLAIL Locate grease zerks on eack end of roller tube at lower end of head. Normal conditions require one or two pumps in each bearing, using Lithium-Complex Extreme Pressure grease conforming to NLGI2-ISO 320 specifications. This is to be done with a standard grease gun daily or at 8 hour intervals.
Page 116 Adjust bolt out until the head just touches the boom, and tighten lock nut. NOTE: Bolt should not hit boom before cylinder reaches full travel. GREASING SPINDLE Locate grease fitting on inside of deck housing. Inject Tiger Spindle Lubricant, part number 06540000 into spindle housing. Fill with lubricant until lubricant weeps out of top spindle seal.
Page 117 MAINTENANCE TIGHTENING SPINDLE BOLTS The spindle mounting bolts should be checked and retorqued daily or every 8 hours of service. Torque the (6) bolts shown below to 357 dry or 315 ft. lbs. lubricated. GREASING PUMP DRIVE SHAFT COUPLER With engine stopped, ensure driveshaft alignment by grasping coupler and sliding back and forth.
Page 118 MAINTENANCE DRIVESHAFT YOKE, U-JOINT STUB SHAFT WIth engine stopped, inject Lithium-Complex extreme pressure grease conforming to NLGI2-ISO 320 specifications into universal joints and slip yoke until grease appears at the seal. Grease them daily or every 8 hours. GREASING THE BOOM SWIVEL Locate the zerks on the main swivel boss (if applicable), main boom pivot boss (if applicable) and on both ends of the boom swivel cylinder.
Page 119 MAINTENANCE GREASING BOOM CYLINDER(S) PIVOT POINTS Locate the zerk on the butt end tang of cylinder and on rod end tang. Inject Lithium-Complex Extreme Pressure grease conforming to NLGI2-ISO 320 specifications until grease begins to protrude from ends. This procedure is to be used on the main boom cylinder, secondary boom cylinder, deck pivot, and swivel cylinders daily or at 8 hour intervals.
Page 120 MAINTENANCE Blades Check the Blades for cracks and wear and Blade Bolts for tightness, daily. Blades should be replaced when they are worn excessively, bent, deformed, or out of balance. Blades should always be replaced in pairs. Blades of different weights can cause serious imbalance and damage to the machine and personnel.
Page 121 MAINTENANCE ROTARY KNIFE REPLACEMENT Be sure you have a complete matching set of new knives for replacement. Remove knives and inspect holes for damage. Also watch for cracks in the disk (if applicable) around the holes. Lube threads with anti-seize. Install bolts through knife and disk from bottom side of disk/blade bar. Install new self-locking nuts and torque them to 800 ft.
Page 122 MAINTENANCE Flail Blades Inspection Inspect the Blades daily for abnormal wear. REPLACE ALL BLADES on the carrier IMMEDIATELY if any blades have: • Become bent or deformed from its original shape, or • Wear inside the blade bolt hole, or •...
Page 123 MAINTENANCE Blade Pins and D-Ring Inspection Inspect Blade Pins and D-Rings daily for wear or damage as follows: Inspect the Blade pins and D-Rings daily for abnormal wear. Make sure the cotter pins are in place and properly spread. REPLACE BLADE Pins and D-Rings IMMEDIATELY if they have: •...
Page 124 MAINTENANCE Flail Axe Blades Inspection Inspect the Blades daily for abnormal wear. REPLACE ALL BLADES on the carrier IMMEDIATELY if any blades have: • Become bent or deformed from its original shape, or • Oval shape wear inside the blade bolt hole, or •...
Page 125 MAINTENANCE Flail Axe Blade Bolt Inspection Inspect Blade Bolts daily for wear or damage as follows: Inspect the Blade Bolt daily for abnormal wear. REPLACE ALL BLADE BOLTS on the carrier IMMEDIATELY if any bolts have: • Visible cracks or •...
Page 126 MAINTENANCE 50” FLAIL KNIFE BLADE REPLACEMENT (Light Brush Grass) If knives are damaged or badly worn, they will need to be replaced as a set. Replacing a single knife can cause severe knife can cause severe vibration and possible damage to the mower. The knife should not be welded on for any reason.
Page 127 MAINTENANCE 63” BOOM FLAIL KNIFE REPLACEMENT If knives are damaged or badly worn, they will need to be replaced as a set. Replacing a single knife can cause severe vibration and possible damage to the mower. Assemble knives, clevis, bolts and nuts as shown in part section of manual. Install locking hex nut so that the flat face of nut is towards the knife.
Page 128 MAINTENANCE THE SPINDLE ASSEMBLY See the diagram below for identification of spindle parts, while servicing. Boom Maintenance Section 4-26 ©2020 Alamo Group Inc.
Page 129 Position the spindle housing horizontally with the drain hole oriented “up”. Grease through the zerk with Tiger Spindle Lubricant (part number 06540000) until the grease purges from the drain hole. Install the plug into the drain hole. BEARING ADJUSTMENT...
Page 130 MAINTENANCE Boom Cylinder Removal and Replacement Instructions Clear the area of all personnel before lowering the boom mower head. From the tractor seat with your seat belt fastened around you, lower the boom mower head to the ground. Extend the boom to the furthest reach and lower the mower head flat on the ground. DO NOT attempt to replace the cylinders with the boom in the raised or transport position.
Page 131 MAINTENANCE CUTTERSHAFT BEARING REPLACEMENT Remove existing cuttershaft, bearings and string guards. Make sure that the end knives on each end of the cuttershaft are oriented as shown. Apply anti-seize on cuttershaft as shown on next page. Install non-drive side bearing first. Install the top of the string guard on the non-drive side first.
Page 133 MAINTENANCE DAILY MAINTENANCE SCHEDULE The following services should be performed daily or every 8 hours of service, following the detailed maintenance instructions in the operator’s manual. _______ Pump driveshaft: If required with drive shaft/coupler check for end play and lubricate at zerks. _______ Crankshaft adapter: If equipped with rubber grommets check condition, replace if missing or damaged.
Page 135: Parts Section
JD61xxM/R MY20 BENGAL BRUTE w/ BUMPER TANK PARTS SECTION...
Page 136 PART NAME INDEX PARTS ORDERING GUIDE ..................................3 TRACTOR MOUNT KIT....................................4 TRACTOR MOUNT KIT - HYDRAULICS..............................6 BOOM MOUNT......................................8 COOLER MOUNT...................................... 10 ELECTRONIC PROPORTIONAL LIFT VALVE............................12 JOYSTICK & SWITCHBOX MOUNT ............................... 14 AXLE STABILIZER ....................................16 BOOMREST........................................ 18 POLYCARBONATE SAFETY WINDOW ..............................
Page 139 TRACTOR MOUNT KIT Continued... ITEM PART NO. QTY. DESCRIPTION 06300383 MNFRM,MNT,JD6110M,T4F 06300480 MNFRM,TB,JD6110M,MY20 06300481 AXLBRC,LH,JD6110M,MY20,RS 06300482 AXLBRC,RH,JD6110M,MY20,RS 06370355 HOLDER,NUT,MID 06380112 RISER,LH,IH,JD6M,20 06403829 SPACER,FRONT 06403836 SPACER,FRONT,2 27281 CAPSCREW,20MMX60MM(2.5 PITCH) 06531008 HEX NUT,3/4 NC,GR 8 33880 FLATWASHER,3/4",GR 8,SAE 06530237 CAPSCREW, 3/4 X 2 1/4,NC,GR8 06530542 CAPSCREW,20MM X 130MM 31240...
Page 140 TRACTOR MOUNT KIT - HYDRAULICS ITEM PART NO. QTY. DESCRIPTION 06300480 MNFRM,TB,JD6110M,MY20 06300482 AXLBRC,RH,JD6110M,MY20,RS 06380112 RISER,LH,IH,JD6M,20 23438 PUMP,TNDM,P350-1-3/4-1/2,2BOLT 34626 CLAMP BRKT,62-6420 32382 BRACKET,HOSE 24849 SPACER 06510351 COOLER,ADAMS,OPTIMUM 06505017 CLAMP KIT,HOSE,1X1.4,2PST 06520536 CLAMP,HOSE,2 1/2",INS 21529 CAPSCREW,1/4" X 3/4" NC 22014 FLATWASHER,1/4,GR8 21644 CAPSCREW,3/8"...
Page 141 TRACTOR MOUNT KIT - HYDRAULICS Continued... ITEM PART NO. QTY. DESCRIPTION 30708 CAPSCREW,20MMX90MM(2.5 PITCH) 33880 FLATWASHER,3/4",GR 8,SAE 06530519 CAPSCREW,12MMX70MM(1.75) 06510083 VALVE,BRAKE,SOL,3000PSI,METRI 06340079 COVER,BV,JD6110M,MY20 TF4852 KIT,FLANGE,#20 TF4854 KIT,FLANGE,#24 06503174 KIT,FLANGE,#12 06412711 COVER,BV,06340079,JD6110M,MY20 34666 TANK,RES,BUMP,BLANK,CPLT,ASSY 06310228 STBLZR,AXLE,RH,JD6110M,BUMP 06380150 BRKT,RES,JD6110,MY20 32703 CAPSCREW,20MMX100MM(2.5)10.9 21780 CAPSCREW,5/8 X 1-1/4 NC 33764 FLATWASHER,5/8,GR 8,SAE...
Page 143 BOOM MOUNT Continued... ITEM PART NO. QTY. DESCRIPTION ----- MAINFRAME (REFER TO TRACTOR MOUNT KIT) 21782 CAPSCREW, 5/8" X 1-3/4" NC 21777 NYLOCK NUT, 5/8" NC 32381 PIN, CAPPED 32322 BUSHING 06505186 CLAMP KIT 6T3211 GREASE ZERK, 1/8" NPT 21677 NYLOCK NUT, 7/16"...
Page 145 COOLER MOUNT Continued... ITEM PART NO. QTY. DESCRIPTION 06380124 MOUNT, COOLER, LH, JD6M, 20 06380113 GUARD 06380125 CLAMP, COOLER, JD6M, 20 06510351 COOLER, ADAMS, OPTIMUM 06380118 GUARD, FAN, COOLER, JD6M 22016 FLATWASHER, 3/8" GR8 21631 CAPSCREW, 3/8" X 1-1/4", NC, GR8 06380112 RISER, LH, IH, JD6M, 20 21629...
Page 146 ELECTRONIC PROPORTIONAL LIFT VALVE JD6110-20 M-R MY20 BENGAL BRUTE w BUMPER TANK ©2021 Alamo Group Inc. Parts Section -12...
Page 147 ELECTRONIC PROPORTIONAL LIFT VALVE Continued... ITEM PART NO. QTY. DESCRIPTION 06500245 ELECTRONIC LIFT VALVE 06340063 PLATE,VALVE, JD6110-30M/R T4F 21987 LOCKWASHER,5/16" 21579 CAPSCREW,5/16" X 3/4",NC 21627 NYLOCK NUT,3/8",NC 23888 BRACKET, ACCUMULATOR 24300 ACCUMULATOR 21632 CAPSCREW, 3/8" X 1-1/2" NC 06503029 TEE, RUN 21631 CAPSCREW,3/8"...
Page 148 JOYSTICK & SWITCHBOX MOUNT JD6110-20 M-R MY20 BENGAL BRUTE w BUMPER TANK ©2021 Alamo Group Inc. Parts Section -14...
Page 149 JOYSTICK & SWITCHBOX MOUNT Continued... ITEM PART NO. QTY. DESCRIPTION 33355 MNT,BRKT,SWITCH BOX 33691 JOYST,4AXIS,RH,DF 32829 SCREW,MACHINE,10-32 X 3/4",FLTHD 33693 CBL,EXT,4FT,JOYST 06510196 SWITCH BOX 22014 FLATWASHER, 1/4" 27513 CAPSCREW, 10MM X 25MM (1.5 PITCH) 21529 CAPSCREW, 1/4" X 3/4" NC 21527 NYLOCK NUT, 1/4"...
Page 151 AXLE STABILIZER Continued... ITEM PART NO. QTY. DESCRIPTION 06310216 STBLZR,AXL,JD6140-50R/M 06310209 AXL,STABLIZER,JD6145-55M/R 06310204 LINK,STABILIZER,JD6145-55M/R 34626 CLAMP BRKT,62-6420 06505017 CLAMP KIT,HOSE,1X1.4,2PST 06420140 U-BOLT,.50X5.66X8.25,NF 33785 CYLINDER,1.5X8,.75PIN 06503055 ELBOW,1/4 MOR X 3/8 MJIC 90 06503048 RUN TEE,3/8MJ X 3/8FJX X 3/8MJ 33984 PIN,.75X2.44,W/Ø.28,CAP 34799 PIN,CYLINDER,SNOWBLOWER RD1032...
Page 152 BOOMREST ITEM PART NO. QTY. DESCRIPTION 06310174 BOOMREST,RS,JD6110,MY20 06310207 BOOMREST,RS,TRF,JD6110,MY20 06300481 AXLBRC,LH,JD6110M,MY20,RS 06300482 AXLBRC,RH,JD6110M,MY20,RS 33764 FLATWASHER,5/8",GR 8,SAE 21777 NYLOCK HEX NUT, 5/8 21783 CAPSCREW, 5/8 X 2,NC JD6110-20 M-R MY20 BENGAL BRUTE w BUMPER TANK ©2021 Alamo Group Inc. Parts Section -18...
Page 153 POLYCARBONATE SAFETY WINDOW ITEM PART NO. QTY. DESCRIPTION 31965 TRIM SEAL,3/8" CLIP X 3/4"OD (FEET) 27508 CAPSCREW,8MM X 20MM,1.25P 22015 FLATWASHER,5/16" 21581 CAPSCREW,5/16" X 1-1/4",NC 06490005 POLYCARB,FRMD,DOOR,RH 06490027 POLYCARB,FRMD,REAR,RH 06520040 BRKT,JD,POLY,RETAIN 6T2619 LOCKWASHER,8MM 21577 NYLOCK NUT,5/16",NC JD6110-20 M-R MY20 BENGAL BRUTE w BUMPER TANK ©2021 Alamo Group Inc.
Page 154 WHEEL WEIGHT ITEM PART NO. QTY. DESCRIPTION 06530213 CAPSCREW,7/8" X 16",NC,GR8, 3"THRD 06533000 FLATWASHER,7/8",GR8 32517 WHEEL WEIGHT,1700# 06400410 SPACER 06531000 HEX NUT,7/8",NC,GR8 JD6110-20 M-R MY20 BENGAL BRUTE w BUMPER TANK ©2021 Alamo Group Inc. Parts Section -20...
Page 155 COMMON LEGAL REAR STOW T4 PARTS SECTION Common Section 6-1...
Page 156 PART NAME INDEX PARTS ORDERING GUIDE ..................................4 BENGAL BRUTE HOSE ROUTING................................5 BENGAL BRUTE BOOM ASSY T4................................6 BENGAL BRUTE BOOM HOSES................................8 BOOMREST........................................ 10 LEGAL REAR STOW RTRY PIVOT ASSY............................. 12 LEGAL REAR STOW FLAIL PIVOT ASSY ............................. 14 60IN ROTARY MOWER ASSEMBLY..............................
Page 157 PART NAME INDEX TROUBLESHOOTING....................................61 TROUBLESHOOTING - CONTINUED ..............................62 NOTES......................................... 63 COMMON LEGAL REAR STOW T4 ©2015 Alamo Group Inc. Common Parts Section -3...
Page 159 BENGAL BRUTE HOSE ROUTING ITEM PART NO. QTY. DESCRIPTION ------ 1" HOSE TO MAIN BOOM LOWER TUBE ------ 1" HOSE TO MAIN BOOM UPPER TUBE ------ 1/4" HOSE TO MAIN BOOM 06505085 CLAMP KIT 35131 CLAMP KIT TB3012 CLAMP 06505021 HOSE COVER COMMON LEGAL REAR STOW T4 ©2015 Alamo Group Inc.
Page 161 BENGAL BRUTE BOOM ASSY T4 Continued... ITEM PART NO. QTY. DESCRIPTION 06700016 SWIVEL ASSY *REFER TO TRACTOR MOUNT KIT 6T3711 GREASE ZERK, 1/8" NPT 32321 BUSHING, 1-1/2ID X 2 06700189 MAIN BOOM ARM ASSY TB1044 BUSHING, 1-1/4"ID 06501020 CYLINDER, 5 X 20 6T3014 ROLLPIN, 1/4 X 2 TB1045B...
Page 163 BENGAL BRUTE BOOM HOSES Continued... ITEM PART NO. QTY. DESCRIPTION 06500686 HOSE, #16X218" (RETURN) 06500685 HOSE, #16X226" (PRESSURE) 06500694 HOSE, #4X83" 06500709 HOSE, #4X142" 06500690 HOSE #4X155" 06505021 HOSE WRAP 06505022 HOSE WRAP 06505024 CLAMP KIT 6T3200 SPLIT HOSE 06505019 CLAMP KIT LRS BOOM ASSY *REFER TO BOOM ASSY 06505116...
Page 165 BOOMREST Continued... ITEM PART NO. QTY. DESCRIPTION 06310125 BOOMREST, LRS, CT 21782 CAPSCREW, 5/8" X 1-3/4" NC 21777 NYLOCK NUT, 5/8" NC, GR8 33764 FLATWASHER, 5/8", GR8 SAE AXLE BRACE *REFER TO TRACTOR MOUNT KIT COMMON LEGAL REAR STOW T4 ©2015 Alamo Group Inc.
Page 167 LEGAL REAR STOW RTRY PIVOT ASSY Continued... ITEM PART NO. QTY. DESCRIPTION 06700016 PIVOT ASSEMBLY 06700015 PIVOT ARM ASSEMBLY 06420014 PIN, CLEVIS TB1023 ROLL PIN 06420019 06420020 06420016 06420021 21688 CAPSCREW 7/16” X 2-3/4”, NC 21675 HEX NUT, 7/16”, NC 21635 CAPSCREW 3/8”...
Page 169 LEGAL REAR STOW FLAIL PIVOT ASSY Continued... ITEM PART NO. QTY. DESCRIPTION 06700029 PIVOT ASSEMBLY 06700201 PIVOT ARM ASSEMBLY 06420014 PIN CLEVIS TB1023 ROLL PIN 06420019 06420020 06420018 06420021 21688 CAPSCREW 7/16” X 3 1/4” 21989 LOCKWASHER 7/16” 21675 HEX NUT 7/16” 21635 CAPSCREW 3/8”...
Page 170 60IN ROTARY MOWER ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 06320159 DECK,WLDMNT,60" RTRY 33777 SKID SHOE,RTRY 06320162 SHIELD,60"RTRY 33879 CAPSCREW, 3/4 X 2 1/4,NF GR 8 33880 FLATWASHER,3/4",GR 8,SAE 21993 LOCKWASHER,3/4",GR 8 6T2413 HEX NUT,3/4,NF,GR 8 6T1024H5 SPINDLE ASSY,CPLT,HD,5/8 HOLES COMMON LEGAL REAR STOW T4 ©2015 Alamo Group Inc.
Page 171 60IN ROTARY MOWER ASSEMBLY Continued... ITEM PART NO. QTY. DESCRIPTION 6T2270 PLOW BOLT,3/8" X 1" NC 22016 FLATWASHER,3/8" 21625 HEX NUT,3/8",NC 21988 LOCKWASHER, 3/8" 21633 CAPSCREW, 3/8 X 1 3/4,NC 6T0823 FLAP RETAINER,60" RTRY 06520238 FLAP,60" RTRY 6T1033 COUPLER COVER 6T1029 COUPLER CHAIN 21223...
Page 172 50IN ROTARY MOWER ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 33780 DECK,WLDMNT,50" RTRY 33777 SKID SHOE,50" RTRY 33754 SHIELD,50"RTRY 33879 CAPSCREW, 3/4 X 2 1/4,NF GR 8 33880 FLATWASHER,3/4",GR 8,SAE 21993 LOCKWASHER,3/4",GR 8 6T2413 HEX NUT,3/4,NF,GR 8 6T1024H5 SPINDLE ASSY,CPLT,HD,5/8 HOLES COMMON LEGAL REAR STOW T4 ©2015 Alamo Group Inc.
Page 173 50IN ROTARY MOWER ASSEMBLY Continued... ITEM PART NO. QTY. DESCRIPTION 6T2270 PLOW BOLT,3/8" X 1" NC 22016 FLATWASHER,3/8" 21625 HEX NUT,3/8",NC 21988 LOCKWASHER, 3/8" 21633 CAPSCREW, 3/8 X 1 3/4,NC 33774 FLAP RETAINER,50" RTRY 33775 FLAP,50" RTRY 6T1033 COUPLER COVER 6T1029 COUPLER CHAIN 21223...
Page 174 50IN ROTARY KNIVES AND DISH ITEM PART NO. QTY. DESCRIPTION ------ 06700089 KIT,TRB50,DISK,W/BOLT KIT (INCLUDES ITEMS 1,3 & 7) 06770003 BLADE MOUNTING DISK 6T1023R NYLOCK HEX NUT 1 1/8” 34878 SPACER 06538000 KNIFE MOUNTING BOLT 06521001 STANDARD KNIFE 33764 FLATWASHER 6T2259 CAPSCREW ------...
Page 175 50IN ROTARY BLADE BAR AND KNIVES ITEM PART NO. QTY. DESCRIPTION PT1018H5 SPINDLE,5/8HOLES,HD,WO/TABS 06400388 BAR,BLADE,TRB 06521001 KNIFE,TRB50,5/8 06538000 KNIFE MTG BOLT,5/8 SHOULDER 06533002 FLATWASHER,1 1/8,GR 8 6T1023R KNIFE MTG NUT,1 1/8,NF,GR8 6T2259 CAPSCREW,5/8X1-3/4,NF,GR8 33764 FLATWASHER,5/8,GR 8,SAE COMMON LEGAL REAR STOW T4 ©2015 Alamo Group Inc.
Page 176 60IN ROTARY KNIVES AND DISH ITEM PART NO. QTY. DESCRIPTION 34876 BLADE MOUNTING DISH,60" 6T1023R NYLOCK NUT,1-1/8",NF 34878 SPACER 34684 STANDARD GRASS KNIFE 34685 HIGH SUCTION GRASS KNIFE (OPTIONAL) 34497 KNIFE MOUNTING BOLT 25270 FLATWASHER,5/8",GR8,USS 6T2259 CAPSCREW,5/8" X 1-3/4",NF,GR8 6T1825 LOCKTITE (USED ON ITEM 8) ---- 27167...
Page 177 60IN ROTARY BLADE BAR AND KNIVES ITEM PART NO. QTY. DESCRIPTION PT1018H5 SPINDLE 06400690 BAR,BLADE,RTRY60 6T1023R KNIFE MTG NUT,1-1/8,NYLOCK,NF 06533002 FLATWASHER,1-1/8,GR8 06521001 KNIFE,TRB50,5/8 06538000 KNIFE MTG BOLT,5/8 SHOULDER 33764 FLATWASHER,5/8,GR 8,SAE 6T2259 CAPSCREW,5/8 X 1-3/4,NF,GR8 COMMON LEGAL REAR STOW T4 ©2015 Alamo Group Inc.
Page 179 50IN FLAIL DRIVE ASSEMBLY Continued... ITEM PART NO. QTY. DESCRIPTION 06504132 MOTOR (M350-1 3/4" GEAR) TF3006 BELT GUARD TF3043 SHEAVE TF3013 BUSHING TF3011 BUSHING TF3034 IDLER PULLEY TF3205 IDLER ARM TF3206 IDLER PULLEY SPACER TF3605 IDLER ARM PIN WITH ZERK 6T3004 R - CLIP PT3611A...
Page 180 50IN FLAIL MOWER ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 34787 FLAIL,BOOM,50,BRUSH,CPLT ASSY (LIGHT BRUSH/GRASS) 06742133 FLAIL,BOOM,50,MD GRASS,CPLT ASSY (MEDIUM BRUSH/GRASS) TF3003F CUTTER HEAD BONNET TF3004 FRONT SHIELD COMMON LEGAL REAR STOW T4 ©2015 Alamo Group Inc. Common Parts Section -26...
Page 181 50IN FLAIL MOWER ASSEMBLY Continued... ITEM PART NO. QTY. DESCRIPTION 34783 TBF50 (LIGHT BRUSH/GRASS KNIFE ASSY) ---- 06700115 TBF50 (MEDIUM BRUSH/GRASS KNIFE ASSY) 6T2419 HEX NUT,9/16”,NC,STOVER 41725.01HT BUSHING,1"OD X 5/8"ID 34782 CLEVIS (LIGHT BRUSH/GRASS KNIVES) ---- 06430122 SPACER (MEDIUM BRUSH/GRASS KNIVES) 34786 CAPSCREW,9/16”...
Page 182 50IN FLAIL MOWER ASSY, PASS-THROUGH KNIVES COMMON LEGAL REAR STOW T4 ©2015 Alamo Group Inc. Common Parts Section -28...
Page 183 50IN FLAIL MOWER ASSY, PASS-THROUGH KNIVES Continued... ITEM PART NO. QTY. DESCRIPTION 34172 FLAIL,BOOM,50,CPLT ASSY TF3003F CUTTER HEAD BONNET TF3004 FRONT SHIELD 33717 TBF50,CUTTERSHAFT,PASS THRU KNIVES TF3405 GROUND ROLLER TF3406 GROUND ROLLER TIE ROD TB1006A DEFLECTOR FLAP TB1008 FLAP RETAINING BAR TF3001 SKID SHOE TF3407...
Page 185 63IN FLAIL DRIVE ASSEMBLY Continued... ITEM PART NO. QTY. DESCRIPTION 06504132 MOTOR (M350-1 3/4 GEAR) 32569 BELT GUARD TF3044 UPPER SHEAVE TF3040 LOWER SHEAVE TF3013 BUSHING 28723 BUSHING 28679B MOTOR CHANNEL PT3611A CLEVIS 40496 THREADED ROD 28702 BELT TF3620A TENSIONER SPRING 28572 SQUARE KEY 26142A...
Page 187 63IN FLAIL MOWER ASSEMBLY Continued... ITEM PART NO. QTY. DESCRIPTION ------ 06200271 FLAIL,BOOM,63,GRASS,CPLT ASSY 28659H CUTTER HEAD BONNET 28743 CUTTER SHAFT / KNIFE ASSY STANDARD GRASS ------ 28642C CUTTER SHAFT,63,STD 34011 FLAIL KNIFE MOUNTING BOLT TF1020 FLAIL KNIFE MOUNTING CLEVIS 33713 FLAIL KNIFE - STANDARD 21677...
Page 188 3 IN X 13-7/8 IN WELDED CYLINDER BREAKDOWN ITEM PART NO. QTY. DESCRIPTION 06501029 CYLINDER,WELDED,3" X 13.87" 06501630 PISTON ROD ASSY 06501631 BUTT & TUBE ASSY 06501632 PISTON 34574 GLAND 34575 LOCK NUT,1"-14 UNS (TORQUE TO 315 FT.LB.) 34576 SPACER 34577 CHECK VALVE,KEPNER 06501633...
Page 189 3IN X 18IN WELDED CYLINDER BREAKDOWN ITEM PART NO. QTY. DESCRIPTION ------ 06501023 HYDRAULIC CYLINDER COMPLETE 06501561 06501562 TUBE WELDMENT 06501552 PISTON 06501563 CYLINDER HEAD 06501554 CLEVIS ------ 06501564 SEAL REPAIR KIT (ITEMS 6 THROUGH 12) COMMON LEGAL REAR STOW T4 ©2015 Alamo Group Inc.
Page 190 3-1/2IN X 20IN WELDED CYLINDER BREAKDOWN ITEM PART NO. QTY. DESCRIPTION ------ 06501024 HYDRAULIC CYLINDER COMPLETE 06501565 06501566 TUBE WELDMENT 06501567 PISTON 06501568 CYLINDER HEAD TB3033 CLEVIS ------ 06501569 SEAL REPAIR KIT (ITEMS 6 THROUGH 12) COMMON LEGAL REAR STOW T4 ©2015 Alamo Group Inc.
Page 191 4IN X 20IN WELDED CYLINDER BREAKDOWN ITEM PART NO. QTY. DESCRIPTION ------ 06501022 HYDRAULIC CYLINDER COMPLETE 06501556 06501557 TUBE WELDMENT 06501558 PISTON 06501559 CYLINDER HEAD 6T0172 CLEVIS 30172 CLEVIS (FOR EXTENDED BOOM) ------ 06501560 SEAL REPAIR KIT (ITEMS 6 THROUGH 12) COMMON LEGAL REAR STOW T4 ©2015 Alamo Group Inc.
Page 193 ROTARY MOWER SPINDLE ASSEMBLY Continued... ITEM PART NO. QTY. DESCRIPTION ------ 6T1024H5 SPINDLE ASSEMBLY COMPLETE 6T1031 SPROCKET 6T1016 BEARING LOCK NUT - THICK 22596 JAM WASHER 6T1015 BEARING ADJUSTMENT NUT - THIN 6T1014 BEARING ADJUSTMENT SLEEVE 6T1011 UPPER SEAL - SET OF 2 6T1012 BEARING CONE 6T1013...
Page 194 PUMP AND GRILL GUARD OPTIONS ITEM PART NO. QTY. DESCRIPTION 32430 UNIVERSAL PUMP GUARD 32737 UNIVERSAL GRILL GUARD 21833 CAPSCREW,3/4" X 2-1/4",NC 22021 FLATWASHER,3/4" 21993 LOCKWASHER,3/4" 21825 HEX NUT,3/4",NC COMMON LEGAL REAR STOW T4 ©2015 Alamo Group Inc. Common Parts Section -40...
Page 195 RESERVOIR TANK FILTER ASSEMBLY ITEM PART NO. QTY. DESCRIPTION ------ 06505044 FILTER ASSY SAE 10 MICRON 28583 CAPSCREW,8MM X 25MM(1.25 PITCH) 06505045 COVER 06505046 SEAL KIT 06505047 SPRING 06505048 BYPASS 35259 FILTER,10 MIC,RETURN LINE 06505049 CAN/BODY COMMON LEGAL REAR STOW T4 ©2015 Alamo Group Inc.
Page 196 5 SPOOL ELECTRONIC VALVE - BENGAL BRUTE ITEM PART NO. QTY. DESCRIPTION ----- 06700224 VALVE, 5SP ------ 06502097 VALVE, SUB-ASSEMBLY 06502074 END PLATE 06505013 END PLATE SEAL KIT ------ BONNET 06505042 BONNET SEAL KIT 42197 MAIN BOOM BONNET 42197 SECONDARY BOOM BONNET 42197 DECK ROLL BONNET 42197...
Page 197 5 SPOOL ELECTRONIC VALVE - BENGAL BRUTE Continued... ITEM PART NO. QTY. DESCRIPTION 34308 INLET SECTION 06505013 INLET SECTION SEAL KIT ------ ELECTRONIC ACCUATOR 06502101 MAIN BOOM ELECTRONIC ACCUATOR 06502101 SECONDARY BOOM ELECTRONIC ACCUATOR 06502100 DECK ROLL ELECTRONIC ACCUATOR 06502101 BOOM SWIVEL ELECTRONIC ACCUATOR 06502099 DECK SHIELD ELECTRONIC ACCUATOR...
Page 199 FRONT HYDRAULIC PUMP Continued... ITEM PART NO. QTY. DESCRIPTION 23152 PUMP ASSEMBLY,1-3/4”,COMPLETE 22766 SHAFT END COVER 22779 PORT END COVER 22774 GEAR HOUSING,1-3/4” 22771 GEAR SET 23824 CAPSCREW 06504078 SCREW,DRIVE 22773 DOWEL PINS 06504077 NAMEPLATE 22770 THRUST PLATE 22767 PLUG 06504075 SEAL,BK-UP 06504074...
Page 200 50IN AND 60IN ROTARY MOTOR BREAKDOWN COMMON LEGAL REAR STOW T4 ©2015 Alamo Group Inc. Common Parts Section -46...
Page 201 50IN AND 60IN ROTARY MOTOR BREAKDOWN Continued... ITEM PART NO. QTY. DESCRIPTION 06504011 MOTOR ASSEMBLY,TRB60 06504012 MOTOR ASSEMBLY,TRB50 22790 HOUSING, SEC 06504088 HOUSING, PEC 06504062 HOUSING, GEAR,TRB60 ------ 06504089 HOUSING, GEAR,TRB50 06504090 SET, GEAR SHAFT 06504104 CAP SCREW,TRB60 ------ 06504091 CAP SCREW,TRB50 06504078 SCREW, DRIVE...
Page 203 FLAIL MOTOR BREAKDOWN Continued... ITEM PART NO. QTY. DESCRIPTION 06504132 MOTOR ASSEMBLY 350 - TBF50, TBF63 06504141 SHAFT END COVER 06504040 PORT END COVER 06504041 GEAR HOUSING 06504117 MATCHED GEAR SET TF4402 BALL BEARING 06504043 CAP SCREW 06504044 SET SCREW 06504028 06504045 DOWEL PIN...
Page 204 MANUAL LIFT VALVE SWITCH BOX ITEM PART NO. QTY. DESCRIPTION 06510049 SWITCH BOX ASSEMBLY 06514010 SWITCH BOX 35226 SWITCH,MOWER,COLEHERSEE 33811 SWITCH,MASTER/DECK FLOAT 34532 SWITCH,TRVL LCK 6T3923 INDICATOR LIGHT,ON,RED 06510193 INDICTATOR LIGHT,ON,GREEN 06514006 BREAKER,15A,SWBX 34540 STRAIN RELIEF 06550043 DECAL,SWTCHBX 02964063 KNOB,RED 35227 RELAY,DP,DT,12V,LY2F (NOT SHOWN) COMMON LEGAL REAR STOW T4...
Page 206 ELECTRONIC LIFT VALVE SWITCH BOX ITEM PART NO. QTY. DESCRIPTION 06510195 SWITCH BOX,ASSY 06514008 SWITCH BOX 33811 SWITCH,MASTER/DECK FLOAT 33813 SWITCH,SFTY SHIELD 34532 SWITCH,TRVL LCK 34540 STRAIN RELIEF,3/4",BLACK,NYLON 6T3923 INDICTATOR LIGHT,ON,RED 06514006 BREAKER,15A,SWBX 06550044 DECAL,SWBX,06510047 35226 SWITCH,MOWER,COLEHERSEE 02964063 KNOB,RED 35227 RELAY,DP,DT,12V,LY2F,35226 COMMON LEGAL REAR STOW T4 ©2015 Alamo Group Inc.
Page 207 ELECTRONIC LIFT VALVE SCHEMATIC - REAR STOW COMMON LEGAL REAR STOW T4 ©2015 Alamo Group Inc. Common Parts Section -53...
Page 208 ELECTRONIC LIFT VALVE WIRING DIAGRAM COMMON LEGAL REAR STOW T4 ©2015 Alamo Group Inc. Common Parts Section -54...
Page 209 BOOM TRAVEL LOCK ITEM PART NO. QTY. DESCRIPTION 06510050 HYDRAULIC TRAVEL LOCK VALVE 31329 ADAPTER - STANDARD BOOM 34532 SWITCH,TRAVEL LOCK ------ MAIN BOOM CYLINDER *REFER TO BOOM ASSY ------ HOSE / FITTINGS *REFER TO BOOM HYD ASSY 06510092 COIL ,TRAVEL LOCK COMMON LEGAL REAR STOW T4 ©2015 Alamo Group Inc.
Page 211 BRAKE VALVE ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 06510083 BRAKE VALVE, ASSY 34092 BRAKE VALVE, BLANK 34094 LOGIC ELEMENT 34095 RELIEF VALVE, 3000 PSI 06510095 METRI PAK COIL 34093 CARTRIDGE, 2 POSITION, 3 WAY (WITH NUT & WASHER) 34091 RELIEF VALVE, 2600 PSI 34096 RELIEF SEAL KIT ----...
Page 218 WARRANTY SECTION Warranty Section 7-1...
Page 220: Warranty Information
All Tiger obligation under this warranty shall be terminated if the equipment is modified or altered in ways not approved in writing by Tiger, if repair parts other than genuine Tiger repair parts have been used, or if the equipment has been subject to misuse, neglect, accident, improper maintenance or improper operation.
Page 221 . Common sense should play a large role in the operation of this machine. Since we at Tiger Corporation are constantly striving to improve out products, we reserve the right to change specifications or design at any time.
Page 222 TO THE OWNER / OPERATOR / DEALER To keep your implement running efficiently and safely, read your manual thoroughly and follow these directions and the Safety Messages in this manual and on the machine. The table of contents clearly identifies each section where you can easily find the information you need. The Occupational Safety and Health Act (OSHA 1928.51 subpart C) makes the following minimum requirements for tractor operators.

Tiger BENGAL JD6110-20M/R MY20 Mounting And Operating Instructions

Quick Links

Summary of Contents for Tiger BENGAL JD6110-20M/R MY20

Page 5: Table Of Contents

Page 7: Safety Section

Page 31: Assembly / Mounting Section

Page 57: Operation Section

Page 103: Maintenance Section

Page 135: Parts Section

Page 220: Warranty Information

Tiger BENGAL JD6110-20M/R MY20 Mounting And Operating Instructions

Quick Links

Related Manuals for Tiger BENGAL JD6110-20M/R MY20

Summary of Contents for Tiger BENGAL JD6110-20M/R MY20

Page 5: Table Of Contents

Page 7: Safety Section

Page 31: Assembly / Mounting Section

Page 57: Operation Section

Page 103: Maintenance Section

Page 135: Parts Section

Page 220: Warranty Information
