Hioki RM3543 Operation Manual

September 2011 Edition 1 RM3543A983-00 11-09H Printed in Japan

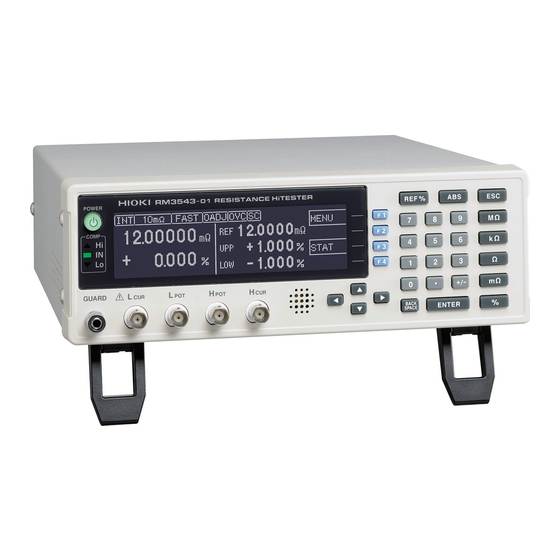

Thank you for purchasing the HIOKI RM3543/3543-01 Resistance HiTester. This guide describes basic screen operations
and comparator setting procedures. Before using the instrument the first time, please read the operating manual.
Power On/Off
• Unlit: power off
(while power is not supplied)
• Red light: power off
(while power is supplied)
• Green light: power on
Comparator Results
(COMP indicator LEDs)
Hi
Measured Value is
above Upper limit
IN
Pass (meets criteria)
Lo
Measured Value is
below Lower limit
Measurement Screen
Measurement screen operations are
shown on the back of this sheet.
Detailed Settings
Screens
(MISC MEAS
Measurement Settings
DELAY1 Adjust the delay from probing to trigger input
DELAY2 Adjust measurement object electrical response
SCALING Scaling function settings
INT(FAST/ MED/ SLOW) Make fine adjustment to integration time
AVERAGE
Averaging function settings
CONT CHECK Contact check threshold settings
CONT IMP Contact Improver function settings
VOLT MONITOR Voltage level monitor function settings
CURRENT MODE Current mode setting (CONT/ PULSE)
(MISC DATA
Data Settings
AUTO MEMORY Turn Auto-Memory on/off
STATISTICS Statistical calculation on/off
DATA OUT Automatically output measured value
RM3543, RM3543-01
RESISTANCE HiTESTER
Operation Guide
Absolute or relative value
Decision criteria
Measurement cable jacks

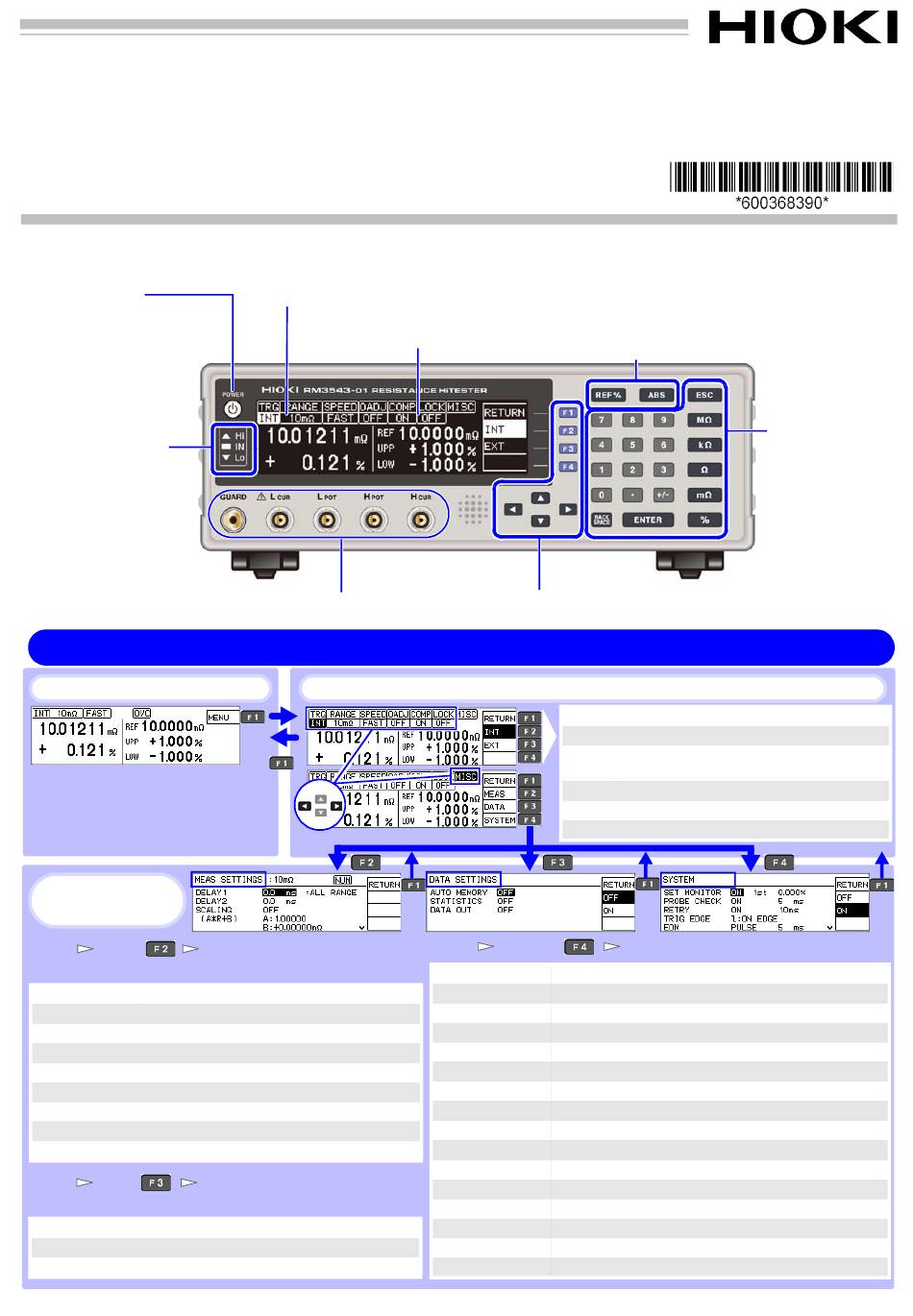

Screen Organization
MEAS SETTINGS)
DATA SETTINGS)
Measurement decision criteria settings
(Comparator function)
REF%
Decide by reference value and tolerance (%)
ABS
Decide by specified threshold values
Select and change display screens and settings
Basic Settings Screen
TRG
RANGE
SPEED
0ADJ
COMP
LOCK
(MISC SYSTEM
SET MONITOR Turn two-instrument setting comparison on/off
PROBE CHECK Turn probe short-circuit detection on/off
RETRY Retry function on/off
TRIG EDGE (External I/O) Set trigger rising/falling edge
EOM (External I/O) Set EOM (end-of-measurement) signal
INTERFACE Communications interface settings
100mΩ CURR 100 mΩ range measurement current 100mA/1A
CALIBRATION Self-calibration operation AUTO/MANU
JUDGE BEEP Comparator beeper settings
KEY BEEP Key beeper on/off
CLOCK(Y-M-D) Set internal clock
LINE FREQ Set power source frequency
CONTRAST Adjust screen contrast
BACKLIGHT Adjust screen backlight
RESET Initialize
ADJUST Instrument Adjustment
1
Numerical value
entry and related
settings
Change trigger source (INT/EXT)
Change range (10mΩ to 1000Ω)
Change measurement speed (FAST/MED/
SLOW)
Turn zero-adjust on/off
Turn comparator on/off
Enable/disable key lock (OFF/FULL/MENU)
SYSTEM) System Settings
