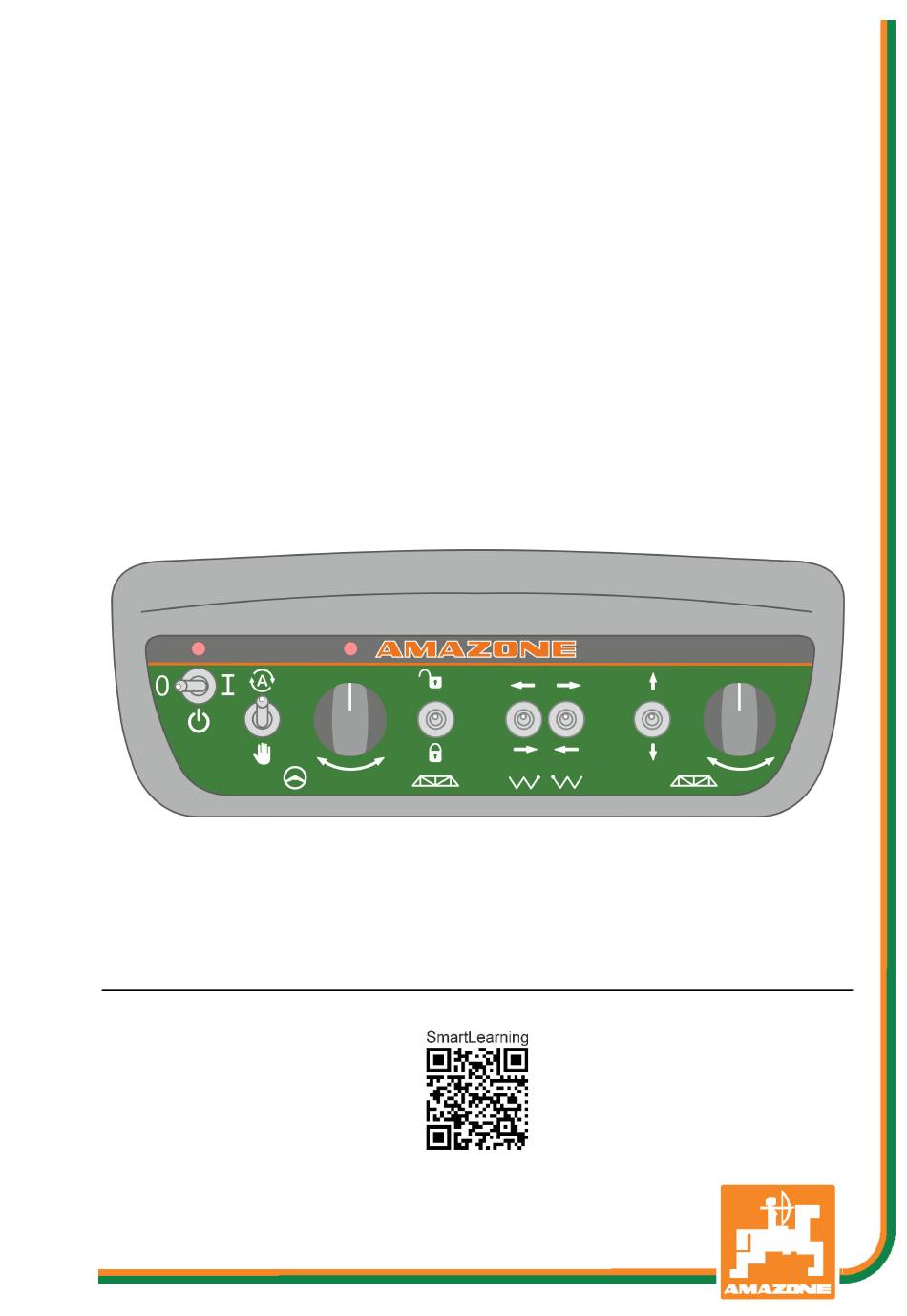

- Page 1 Operating instructions AMAz ProfiClick Dashboard to operate the hydraulic functions Please read this operating MG5668 manual before initial operation. BAG0138.1 03.15 Keep it in a safe place for future Printed in Germany use!
- Page 2 Proficlick BAG0138.1 03.15...
- Page 3 + 49 (0) 5405 501-234 E-mail: amazone@amazone.de Spare part orders Spare parts lists are freely accessible in the spare parts portal at www.amazone.de. Please send orders to your AMAZONE dealer. Formalities of the operating manual Document number: MG5162 Compilation date: 03.15 ...
-
Page 4: Table Of Contents
Error messages ........................8 Transportation ..................... 9 Settings ...................... 10 Teaching in the boom centre position ................... 10 Teaching in the centre position for the steering ..............10 Adjusting the steering control factor ..................11 Attachment ....................12 Proficlick BAG0138.1 03.15... -
Page 5: Product Description
To do so, the field sprayer must be equipped accordingly. During operation, the field sprayer is constantly supplied with hydrau- lic fluid through an oil circuit. The ProfiClick is available in versions with or without steering func- tion. Proficlick BAG0138.1 03.15... -
Page 6: Operation

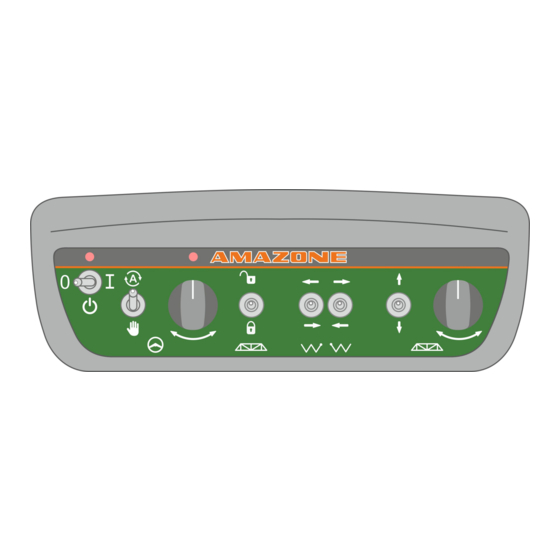

Operation Operation ProfiClick main switch Latching rocker switch 0 ProfiClick switched off 1 ProfiClick switched on AutoTrail (optional) Latching rocker switch Steering in automatic mode (precise tracking of the implement) The steering angle is constantly regulated • in the defined target position. - Page 7 To move the sprayer boom into working position and transport posi- tion, please also refer to the implement operating manual. To fold both boom sections at the same time, actuate both rocker switches simultaneously until the end position is reached. Proficlick BAG0138.1 03.15...
-
Page 8: Error Messages
When driving on road, interrupt the oil circulation and switch the Pro- fiClick off. Error messages If an error is detected by the sensors, none of the ProfiClick functions should be executed. However, the rotary knobs can be operated. As long as the error persists, it is displayed by: a recurrent acoustic signal, •... -
Page 9: Transportation
Move to the middle position. 1.3 Move the machine until the centre po- sition is reached. 2. Switch off the red tractor control unit. 3. Secure the steering drawbar (1) by closing the stop tap (3) in position 0. Proficlick BAG0138.1 03.15... -
Page 10: Settings
Press down the left-hand rocker switch for folding and the rocker switch for the boom locking mechanism. 4. At the same time, switch on the main switch. An acoustic signal is issued and the centre → position is saved. Proficlick BAG0138.1 03.15... -
Page 11: Adjusting The Steering Control Factor
Settings Adjusting the steering control factor Only with steered axle! Default value 1.25 (cannot be read off) Put the steering into . Switch off ProfiClick. 3. Put the boom locking mechanism on and simultaneously Switch on ProfiClick. → Two beeps indicate that the calibration menu is active. -
Page 12: Attachment
Attachment Attachment • Install the bracket within easy reach in the tractor cab. Attach the ProfiClick using the tube sleeves. • Adjust the angle using the wing nuts. • Couple the implement wiring harness with • the 23-pin plug on the ProfiClick. - Page 13 Proficlick BAG0138.1 03.15...
