PRIVACY VINYL FENCE INSTALLATION GUIDE
A
BEFORE YOU START, CHECK THE FOLLOWING
1. That you meet local codes for frontage locations, property lines, fence heights and any permit requirements.
IMPORTANT
2.
Call before you dig, is the law or visit 811.com. Check with your local utility companies to locate underground pipelines,
power lines or cables.
B
TOOLS NEEDED FOR INSTALLATION
• String and Marking Stakes
• Line Level
• Speed Square
• Safety Glasses
• #4 Rebar
• Miter Saw/Chop Saw (if cutting down rails, pickets, or posts)
• Concrete/Quickcrete® and Gravel Mix
• Post Hole Digger or Power Auger
• PVC Vinyl Cement
• Gloves
• Shovel
Advertisement
Table of Contents
Related Manuals for DuraMax DRPV717
Summary of Contents for DuraMax DRPV717

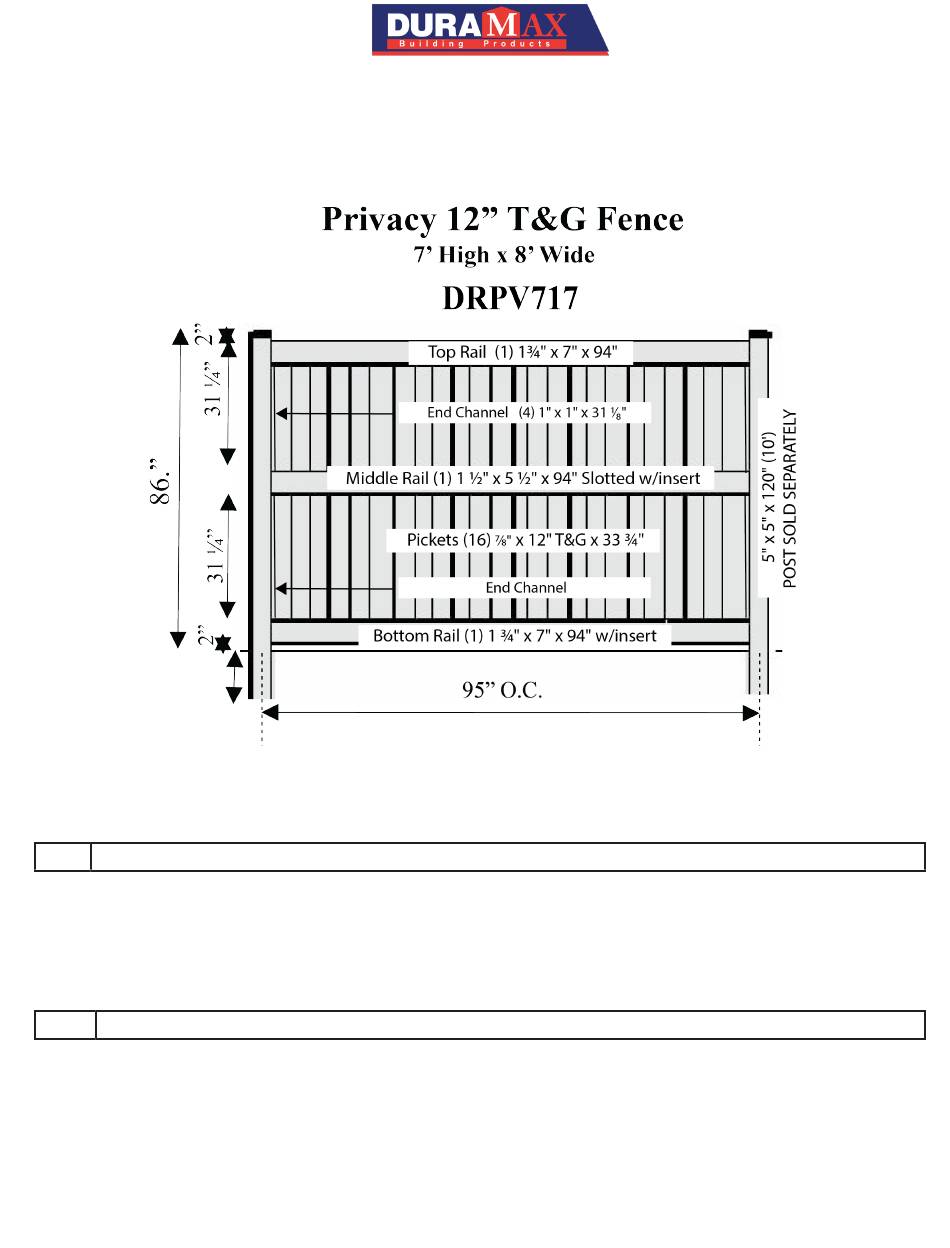

- Page 1 PRIVACY VINYL FENCE INSTALLATION GUIDE BEFORE YOU START, CHECK THE FOLLOWING 1. That you meet local codes for frontage locations, property lines, fence heights and any permit requirements. IMPORTANT Call before you dig, is the law or visit 811.com. Check with your local utility companies to locate underground pipelines, power lines or cables.
- Page 2 5 TYPES OF VINYL POST EACH POST SOLD SEPERATELY...
- Page 3 Duramax Vinyl fences are designed for level or sloping terrain. For significant sloping terrain you will need to modify some of the posts and panel components. Lengthing out the routed holes in the posts and cutting the pickets at the angle of slope will help with assembly on uneven terrain.
- Page 4 LAYOUT FENCE AND POSITION POSTS Step 2 SETTING VINYL FENCE POSTS IMPORTANT Post depth and width will be determined by local weather and soil conditions. In frost regions, dig the post holes deep enough to ensure concrete extends below the frost line. Please check the building code in your area specifies a frost line depth.
- Page 5 LAYOUT FENCE AND POSITION POSTS Step 3 FILL END-CORNER POSTS WITH RE-BAR & CONCRETE Mix concrete according to manufacturers specications. Place and hold the post while pouring concrete 6” at a time, tamping to eliminate air pockets. Leave enough space at the top of the concrete to allow sod to grow around the post. Set the correct post height, plumb and level each post.
- Page 6 ASSEMBLE AND INSTALL SECTIONS Having set your posts, you are now ready to assemble the fence sections for your specific Privacy Product Item Model as below. IMPORTANT Protect the finish of your fence during assembly by assembling on a dry, clean and smooth surface. NOTE: Rail Style, Picket Panels Style and number of pickets panels may differ depending on the Privacy Product Item Model.
- Page 7 ASSEMBLE AND INSTALL SECTIONS STEP A1: INSTALL END CHANNEL Center the end channel on the post between the bottom and middle rail holes. Position the flat side of the end channel against the post and secure the channels to the posts using 3, #8 x ¾” stainless steel self tapping screws (Fig.
- Page 8 STEP A7 Channel STEP A5 Pickets STEP A6 Post Middle Rail STEP A4 Mount Centered Vertically the End Channel to the post. Channel STEP A1 Pickets STEP A3 Bottom Rail STEP A2 Property of Duramax Building Products © September 2021...
