Note: There may be slight differences in functionality due to the existence of different product
series.
IMPORTANT: Due to specific hardware limitations within your camera it is important to note
that these devices will not be able to automatically pan/tilt or pivot in either the app or via the
web UI on a computer. For this reason, it is imperative to make sure to mount the cameras
properly and position them as efficiently as you can to the areas you wish to monitor. All
positioning actions to the camera will have to be performed manually.

2 Device Overview

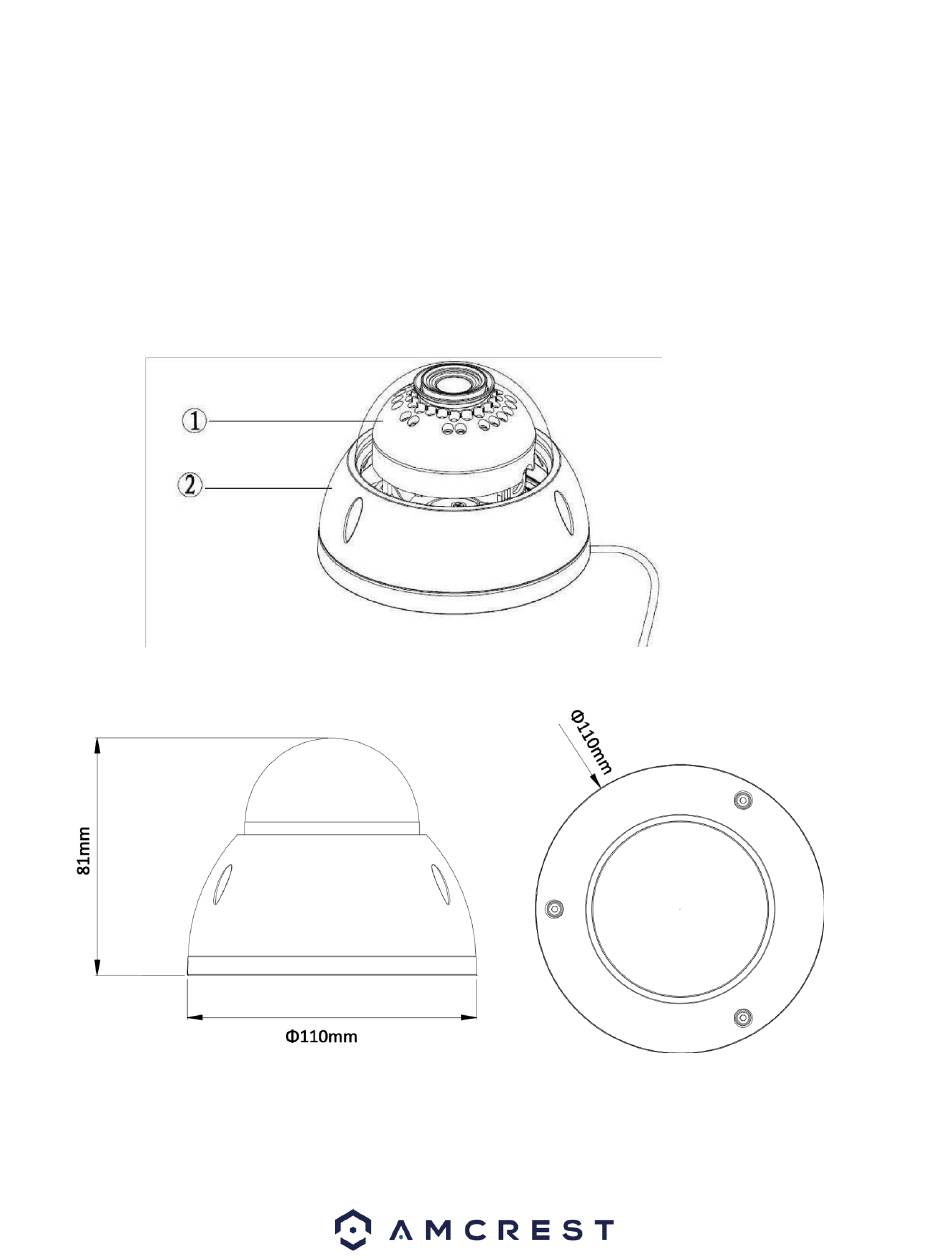

The image below shows the structure of the camera:
The images below show the dimensions for the camera. The measurements are in
millimeters (mm):
To access the reset button and to adjust the camera angle, use a Torx/Hex wrench to
open the camera assembly by removing the 3 screws.
