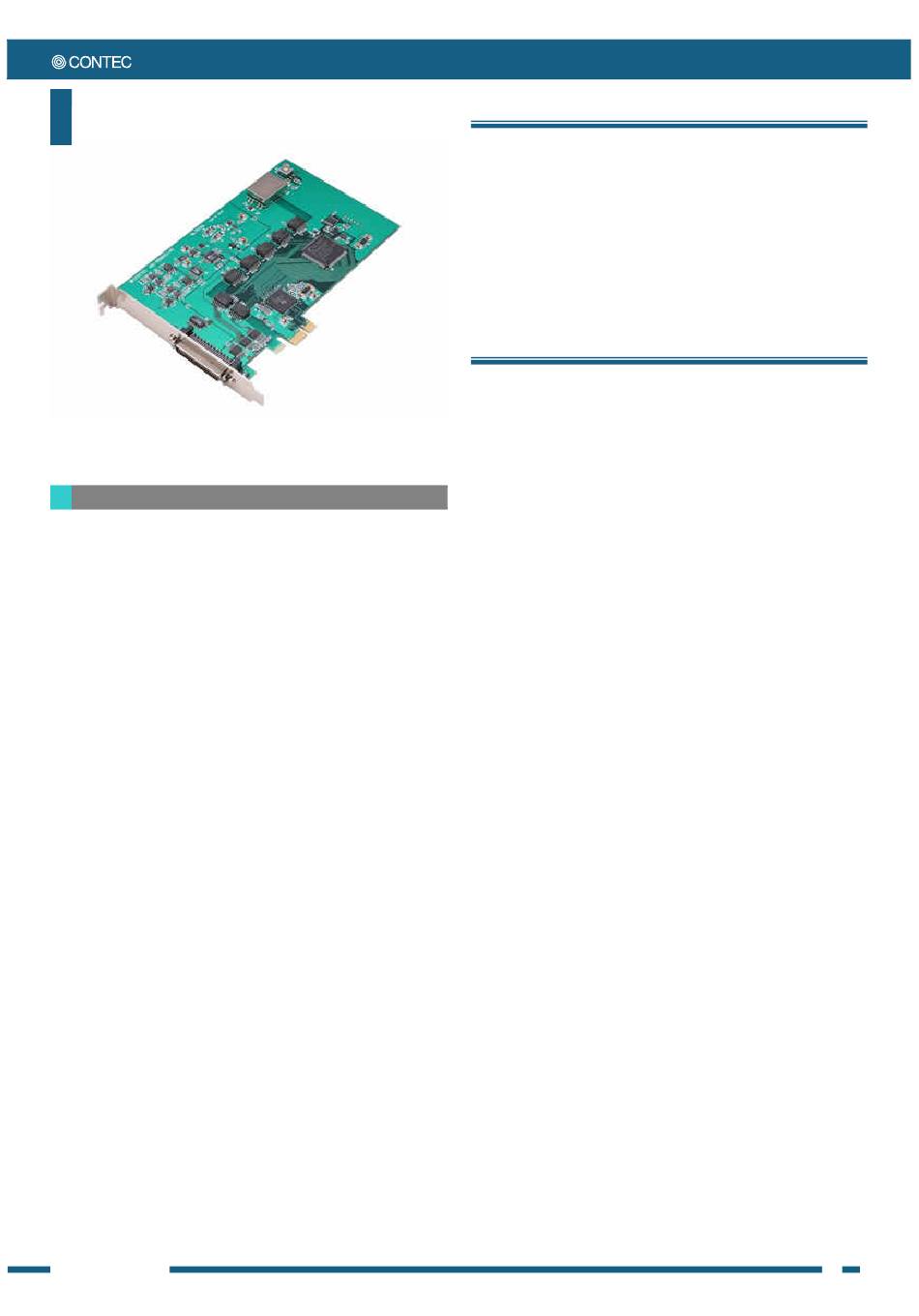

Contec AIO-160802LI-PE Quick Start Manual

Isolated 16-bit Analog I/O Board
for PCI Express
AIO-160802LI-PE
* Specifications, color and design of the products are subject to change
without notice.
Features
Bus isolated high precision analog input 8 channels / output 2 channels,
each 4 channels for digital I/O, counter 1 channel
This product has analog input (10µsec / channel [100KSPS], 16-bit, 8
channels), analog output (10µsec [100KSPS], 16-bit, 2 channels),
analog I/O control signal (Isolation TTL level 6 channels), digital I/O (4
channels each for Isolation TTL level), counter (32-bit, Isolation TTL
level 1 channel).
Functions and connectors are compatible with PCI compatible board
ADAI16-8/2(LPCI)L
The functions same with PCI compatible board ADAI16-8/2(LPCI)L are
provided. In addition, as there is compatibility in terms of connector
shape and pin assignments, it is easy to migrate from the existing
system.
Bus isolation between PC and external I/O signals by a digital isolator
Isolation between PC and external I/O circuit by a digital isolator
improves noise tolerance.
The start/end of sampling can be controlled by software, comparison of
conversion data, an external trigger, etc.
You can select from software, comparison of conversion data or an
external trigger to control the start of sampling. You can select from
completion of sampling for a specified number of sessions, comparison
of conversion data, an external trigger or software to control the end of
sampling. The sampling cycle can be selected from the internal clock
or an external clock.
Equipped with buffer memory (1K data) that can be used in the FIFO
or RING format
The analog input block contains buffer memory (1K data) that can be
used in the FIFO or RING format. This allows for background analog
I/O that does not depend on the operation status of the software or PC.
Bus isolation between PC and external analog output circuit by a digital
isolator
Isolation between PC and external analog output circuit by a digital
isolator improves noise performance.
The start/end of sampling can be controlled by software, an external
trigger , etc.
You can select from software, an external trigger to control the start of
sampling. You can select from completion of sampling for a specified
number of sessions, an external trigger or software to control forcibly
the end of sampling. The sampling cycle can be selected from the
internal clock or an external clock.
AIO-160802LI-PE
PLUG-IN Electronic GmbH • Am Sonnenlicht 5 • 82239 Alling • Tel.: +49 (0) 8141 3697-0 • info@plug-in.de • www.plug-in.de
This product is a PCI Express bus-compliant interface board used to
provide an analog signal I/O, input and output function on a PC.
AIO-160802LI-PE features bus isolated 16-bit analog input 8 channels
and 16-bit analog output 2 channels.
Equipped with digital I/O and counter, this product is multifunction and
bus isolated type that provides isolation between PC and external
analog I/O circuit. This product carries buffer memory for 1K of data,
allowing sampling to be performed in a variety of trigger / clock
conditions.
Windows/Linux driver and full-fledged data logger software
"C-LOGGER" is bundled with this product. Possible to be used as a
data recording device for MATLAB and LabVIEW, with dedicated
libraries.
* The contents in this document are subject to change without notice.
* Visit the CONTEC website to check the latest details in the document.
* The information in the data sheets is as of January, 2018.
Safety design to adjust output voltage to 0V when power supply is
turned on
To prevent the unstable voltage and the connected device of D/A
converter from fault and malfunctions when the power supply is turned
on, the circuit is designed to adjust output voltage of the analog output
to 0V.
Equipped with buffer memory (1K data) that can be used in the FIFO
or RING format
The analog output block contains buffer memory (1K data) that can be
used in the FIFO or RING format. This allows for background analog
output that does not depend on the operation status of the software or
PC.
Digital filter function included to prevent misdetection due to chattering
on external signals
A digital filter is included to prevent misdetection due to chattering on
the control signal (external trigger input signal, sampling clock input
signal, etc.), digital input signal and counter input signal.
(Except from external clock input signal and counter gate signal)
Software-based calibration function
Calibration can be all performed by software. Apart from the
adjustment information prepared before shipment, additional
adjustment information can be stored according to the use
environment.
Data logger software, Windows/Linux compatible driver libraries are
attached.
Using the bundled data logger software "C-LOGGER" allows you to
display recorded signal data in graphs, save files without any special
program. In addition, the driver library API-PAC(W32) which makes it
possible to create applications of Windows/Linux is provided.
MATLAB and LabVIEW is supported by a plug-in of dedicated library
VI-DAQ.
Using the dedicated library MATLAB and VI-DAQ makes it possible to
make a LabVIEW application.
