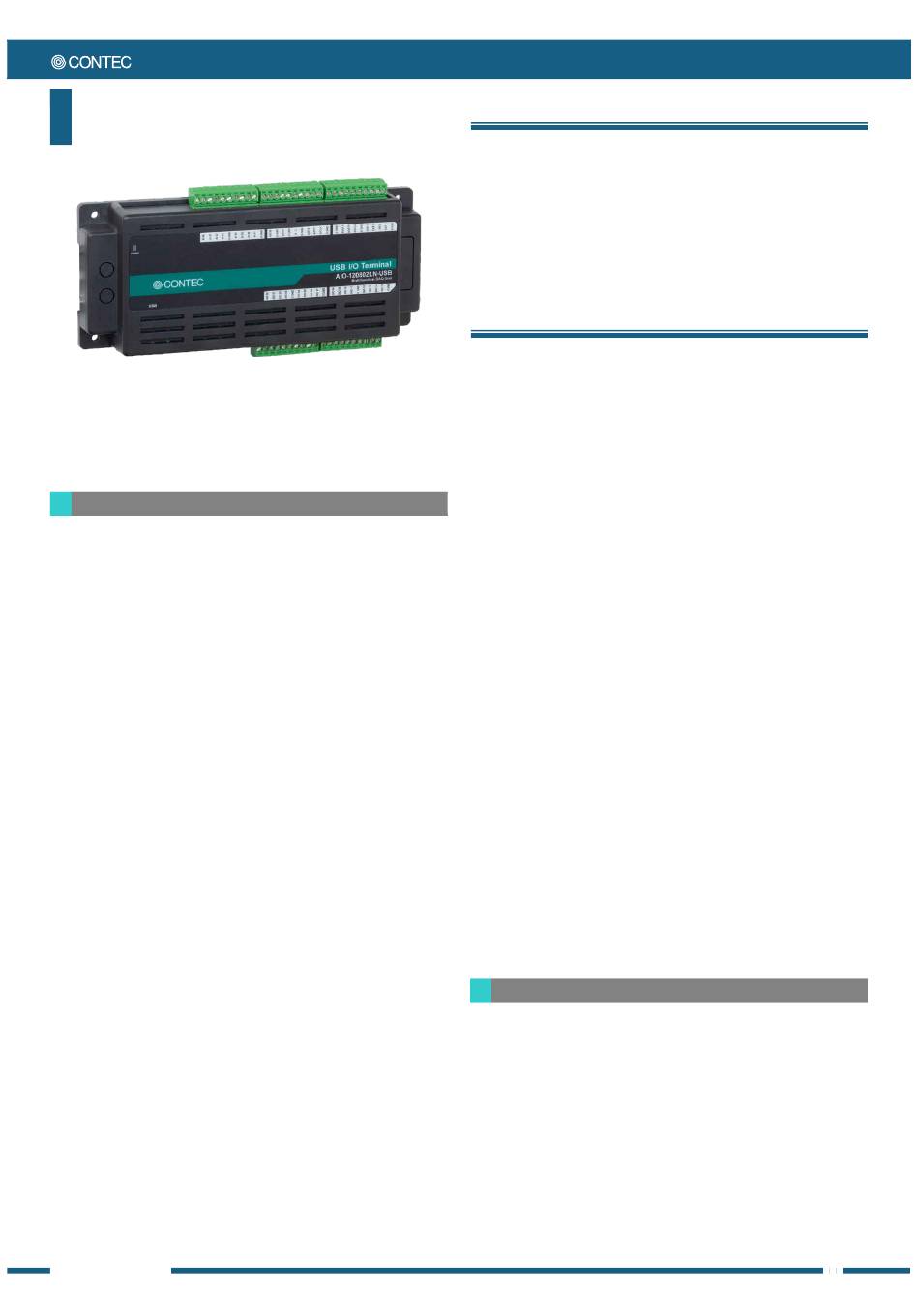

Contec N Series Quick Start Manual

N Series for USB
Multifunction DAQ Unit (8ch AI, 2ch AO, 16ch DIO)
AIO-120802LN-USB
* Specifications, color and design of the products are subject to change
without notice.
Features
Multi-function
Analog I/O can be implemented in a compact system. The series consists
of two different models from which you can select the best model to suit
your application.
This product contains the analog input (12bit, 8ch), analog output (12bit,
2ch). All two models include bi-directional digital inputs / outputs
(16points, TTL level) and a counter (32bit 1ch, TTL level). You can select
the input/output by the application software in eight signals units.
Analog I/O can be synchronized with an internal timer or external
clock.
Analog I/O can both be performed at fixed time intervals and
synchronized with an external signal.
Digital filter function to prevent wrong recognition of external signal
chattering is provided.
This product has analog input / output control signal, digital input signal
and digital filter function to prevent it from chattering in counter input
signal. (Excluding external clock input signal, counter gate signal)
Buffer memory available for background processing independent of
software
The boards include buffer memory (1K Word each for analog input and
output) which can be used in either FIFO or ring format. This allows
analog I/O to be performed independently of the operating state of the
PC or software.
Software-based calibration function
Calibration of analog input/output can be all performed by software.
Apart from the adjustment information prepared before shipment,
additional adjustment information can be stored according to the use
environment.
Compact design not restricting installation location (188.0(W) x 78.0(D)
x 30.5(H))
Compact design of 188.0(W) × 78.0(D) × 30.5(H) does not require special
installation location.
Compatible to USB1.1/USB2.0
Compatible to USB1.1/USB2.0 and capable to achieve high speed
transfer at HighSpeed (480 Mbps).
AIO-120802LN-USB
PLUG-IN Electronic GmbH • Am Sonnenlicht 5 • 82239 Alling • Tel.: +49 (0) 8141 3697-0 • info@plug-in.de • www.plug-in.de
This product is a USB2.0-compliant analog I/O unit that extends the
analog I/O function of USB port of PCs.
Compact design not restricting installation location (188.0(W) x 78.0(D) ×
30.5(H)) makes it easy to install the product within the panel or device
using DIN rail mounting jigs, or on the floor or wall.
Windows driver library is supplied. Possible to be used as a data
recording device for LabVIEW, with dedicated libraries.
* The contents in this document are subject to change without notice.
* Visit the CONTEC website to check the latest details in the document.
* The information in the data sheets is as of Janey 2019.
Diverse installations such as screw fastening, magnet, DIN rail are
possible
Installation on the floor / wall /ceiling is possible by screw fastening,
magnet, rubber feet, etc. In addition, DIN rail mounting mechanism is
equipped as standard with the product, making it easy to install the
product within the panel or the device.
Easy-to-wire terminal connector adopted
Adoption of terminal connector (with screws) enables to achieve easy
wiring.
Windows compatible driver libraries are attached.
Using the attached analog I/O driver API-USBP(WDM) makes it possible
to create applications of Windows. In addition, a diagnostic program by
which the operations of hardware can be checked is provided.
Supported to the data logger software [C-LOGGER] (Analog input
only)
Supporting the data logger software [C-LOGGER] that enables the graph
display of recorded signal data, file saving, and dynamic transfer to the
spreadsheet software program "Excel".
Plug-ins for the dedicated libraries, the board also supports MATLAB
and LabVIEW.
We offer a dedicated library [ML-DAQ], which allows you to use this
product on MATLAB by The MathWorks as well as another dedicated
library [VI-DAQ], which allows you to use the product on LabVIEW.
These dedicated libraries are available, free of charge (downloadable), on
our web site.
Interface Connector
Unit (AIO-120802LN-USB) ...1
USB cable (1.8m) ...1
USB cable attachment on the main unit's side ...1
First step guide ... 1
I/O connector...5
Rubber feet ...4
Magnet ...2
CD-ROM *1 [API-USBP(WDM)] ...1
Warranty Certificate...1
Serial number label ...1
*1 The CD-ROM contains the driver software and User's Guide.
Ver.1.20
