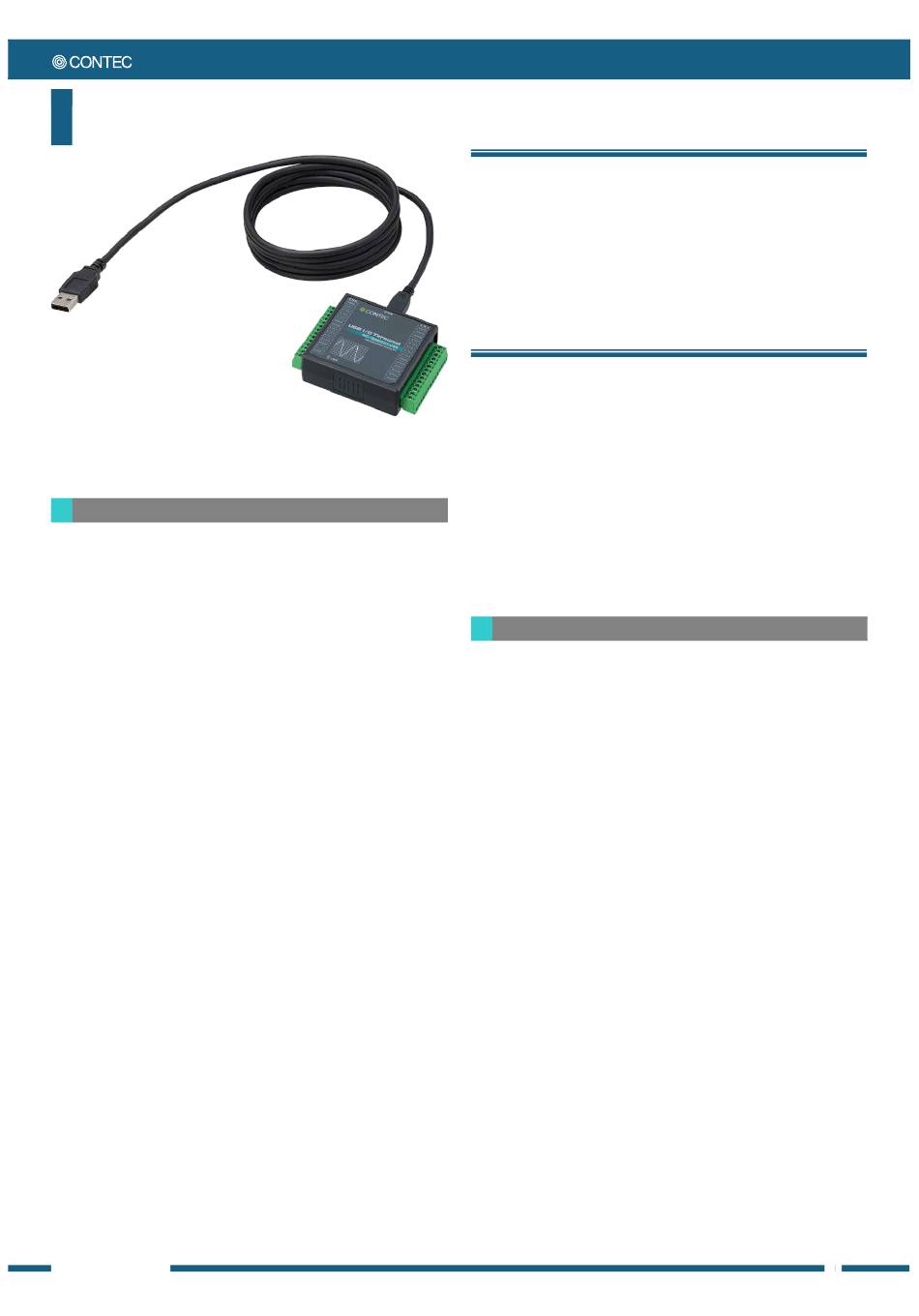

Contec AIO-160802GY-USB Quick Start Manual

Terminal for USB2.0
High-Resolution Analog I/O
AIO-160802GY-USB
* Specifications, color and design of the products are subject to change
without notice.
Features
Input 4µsec/ch, 8ch, output 10µsec, 2ch, 16bit resolution
Equipped with the analog input (4µsec/ch, 16bit, 8ch) and digital I/O (4ch
each, LVTTL level)
Compatible to USB1.1/USB2.0 and not necessary to power this product
externally as the bus power is used.
Compatible to USB1.1/USB2.0 and capable to achieve high speed
transfer at HighSpeed (480 Mbps). Not necessary to power this product
externally as the bus power of USB is used.
Equipped with the buffer memory which can be used in either FIFO or
ring format
This product includes buffer memory (8K data for analog input and 1K
data for output) which can be used in either FIFO or ring format. You
can perform analog I/O in the background, independent of software and
the current status of the PC.
Windows compatible driver libraries are attached.
Using the attached driver library API-USBP(WDM) makes it possible to
create applications of Windows. In addition, a diagnostic program by
which the operations of hardware can be checked is provided.
Supported to the data logger software [C-LOGGER]
Supporting the data logger software [C-LOGGER] that enables the graph
display of recorded signal data, file saving, and dynamic transfer to the
spreadsheet software program "Excel".
Sampling can be driven by a clock or by various triggers
Sampling can be started and stopped by software or by an external
trigger (timing controlled by an externally input control signal).
The sampling period can be controlled by the internal clock (high-
precision timer included on the board) or by an external clock (externally
input control signal).
Terminal connector facilitating wiring
Wiring is easy as the terminal connector (screw type) is used.
Software-based calibration function
Calibration of analog input/output can be all performed by software.
Apart from the adjustment information prepared before shipment,
additional adjustment information can be stored according to the use
environment.
AIO-160802GY-USB
PLUG-IN Electronic GmbH • Am Sonnenlicht 5 • 82239 Alling • Tel.: +49 (0) 8141 3697-0 • info@plug-in.de • www.plug-in.de

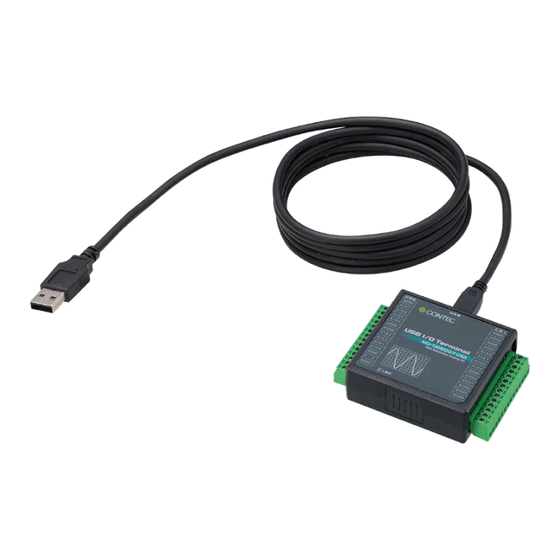

This product is a USB2.0 compatible terminal module that extends the
analog I/O function of USB port of PCs. 8ch/16bits analog inputs and
2ch/16bits analog outputs are employed and signal lines can be directly
connected to the screw terminals in the system. Compact design to
match Note PCs and excellent in mobility as operation is powered by
USB bus. This product accompanies Windows driver and full-fledged
data logger software "C-LOGGER".
With plug-ins for the dedicated libraries, this product also supports
LabVIEW.
* The contents in this document are subject to change without notice.
* Visit the CONTEC website to check the latest details in the document.
* The information in the data sheets is as of June 2020.
Plug-ins for the dedicated libraries, this product also supports
LabVIEW.
We offer a dedicated library [DAQfast for LabVIEW], which allows you to
use the product on LabVIEW by National Instruments.
These dedicated libraries are available, free of charge (downloadable), on
our web site.
Support Software
Windows version of analog I/O driver API-AIO(WDM)
[Stored on the bundled disk driver library API-USBP(WDM)]
The API-AIO(WDM) is the Windows version driver library software that
provides products in the form of Win32 API functions (DLL). Various
sample programs such as Visual Basic and Visual C++, etc and diagnostic
program useful for checking operation is provided.
For more details on the supported OS, applicable language and new
information, please visit the CONTEC's Web site.
Data Logger Software C-LOGGER
[Stored on the bundled disk driver library API-USBP(WDM)]
C-LOGGER is a data logger software program compatible with our
analog input products. This program enables the graph display of
recorded signal data, zoom observation, file saving, and dynamic transfer
to the spreadsheet software "Excel". No troublesome programming is
required.
For details on the supported operating systems and applicable
languages and to download the latest version, see the services on the
CONTEC website
LabVIEW VI Library for Data Acquisition DAQfast for LabVIEW
(Available for downloading (free of charge) from the CONTEC web
site.)
This is a data collection library to use our devices in the LabVIEW by
National Instruments. With Polymorphic VI, our design enables a
LabVIEW user to operate seamlessly. Our aim is for the customers to
perform easily, promptly what they wish to do.
For more details on the library and download of DAQfast for LabVIEW,
please visit the CONTEC's Web site.
Ver.1.03
