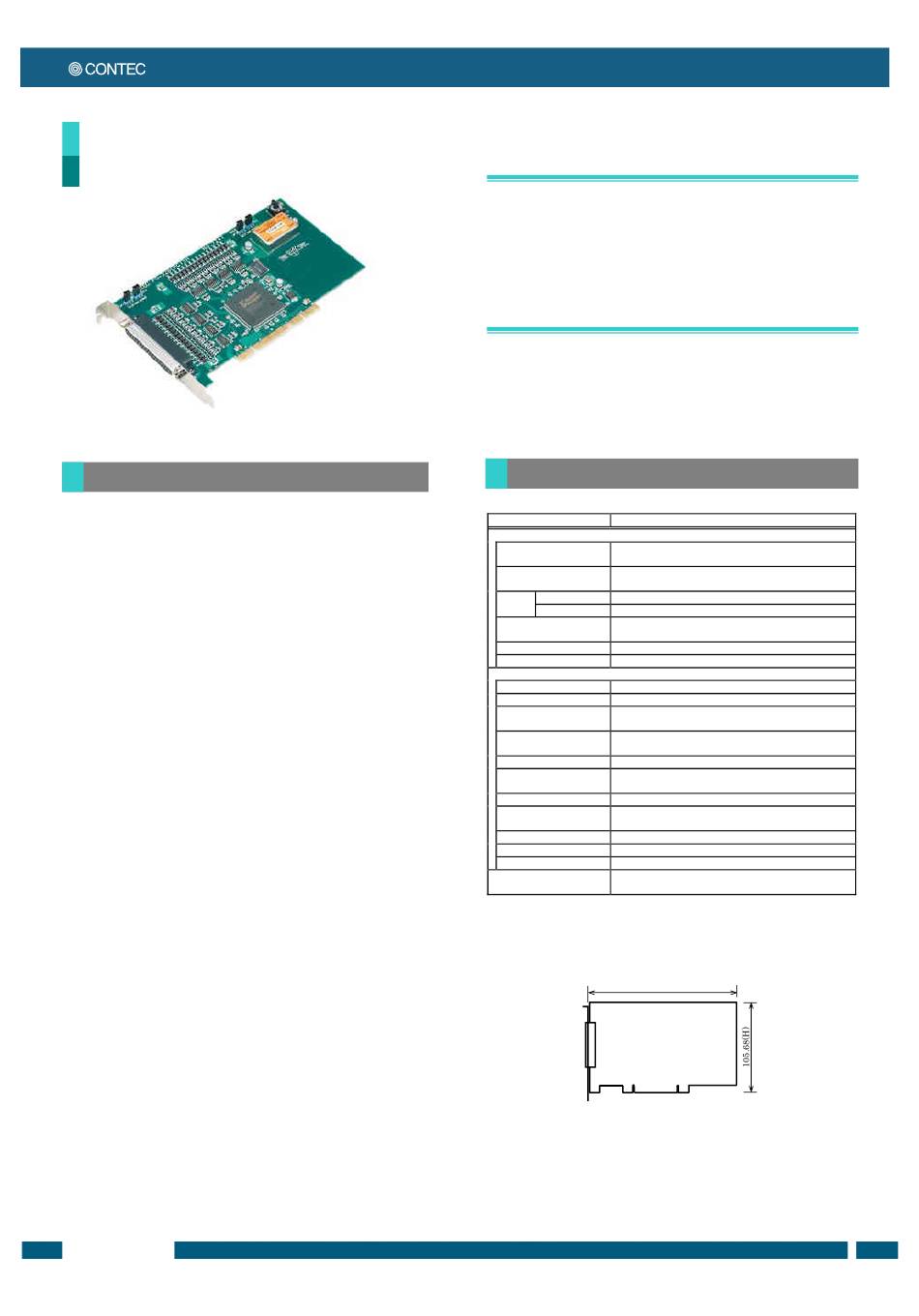

Contec PO-32B(PCI)H Quick Start Manual

Isolated Digital Output Board
for PCI (Internal power supply)
PO-32B(PCI)H
* Specifications, color and design of the products are subject to
change without notice.
Features
A different external power supply can be used for each
common pin as it is shared by 16 channels.
The PCI bus (personal computer) and the output interface are
isolated from each other by an Optocoupler, offering good
noise immunity.
Up to 35VDC, 100mA per signal, max. output.
Zener diode connected to output transistors for protection from
surge voltage. Overcurrent protective device provided for
every eight channels of output transistors.
The board carries an Optocoupler driving power supply. You
can select whether to use the internal power supply or an
external power supply.
PO-32B(PCI)H
PLUG-IN Electronic GmbH • Am Sonnenlicht 5 • 82239 Alling • Tel.: +49 (0) 8141 3697-0 • info@plug-in.de • www.plug-in.de
This board is a PCI-compliant interface board for output of
digital signals.
The PC can be used to input the on/off state of a switch and to
control a relay.
This product can output up to 32 channels.
Using the bundled driver library package [API-PAC(W32)], you
can create Windows application software for this board in your
favorite programming language supporting Win32 API functions,
such as Visual Basic or Visual C/C++.
* The contents in this document are subject to change
without notice.
* Visit the CONTEC website to check the latest details in the
document.
* The information in the data sheets is as of April, 2018.
Specification
Item
Output section
Optocoupler isolated input (Compatible with current sink
Output format
output)(Negative logic *1)
Number of output signal
32 channels(One common power supply per 16 channels)
channels
Output voltage 35VDC (Max.)
Output
rating
Output current 100mA (par channel) (Max. )
Residual voltage with 0.5V or less (Output current≤50mA), 1.0V or less (Output
output on current≤100mA)
Surge protector Zener diode RD47FM(NEC) or equivalent
Response time 200µsec within
Common section
I/O address Any 32-byte boundary
Interruption level Not used
Max. board count for
16 boards including the master board
connection
External circuit power
12 - 24VDC(±10%)
supply
Internal power 12VDC 240mA *2
5VDC 1200mA (Max.) (Using the internal power)
Power consumption
5VDC 300mA (Max.) (Using the External power)
Operating condition 0 - 50°C, 10 - 90%RH (No condensation)
Allowable distance of
Approx. 50m (depending on wiring environment)
signal extension
PCI bus specification 32bit, 33MHz, Universal key shapes supported *3
Dimension (mm) 176.41(L) x 105.68(H)
Weight 150g
VCCI Class A, CE Marking (EMC Directive Class A, RoHS
Standard
Directive)
*1 Data "0" and "1" correspond to the High and Low levels, respectively.
*2 When the internal power supply is used, the switch section of output channel consumes a
maximum of 40 mA and thus the output current to be supplied from the board is 200 mA.
*3 This board requires +5V power supply from expansion slots (it does not operate in the
environment of only +3.3V power supply).
Board Dimensions
176.41(L)
The standard outside dimension (L) is
the distance from the end of the board
to the outer surface of the slot cover.
Ver.1.12
Specification
[mm]
