Contec PIO-64(PCI)H Quick Start Manual

Digital I/O Board with Opto-Isolation for PCI
PIO-64/64L(PCI)H
Digital Input Board with Opto-Isolation for PCI
PI-128L(PCI)H
Digital Output Board with Opto-Isolation for PCI
PO-128L(PCI)H
with Driver Library [API-PAC(W32)]
Features
- Common power-supply configuration in 16 channel units, capable of supporting different external power supplies.
- Opto-coupler used to electrically isolated I/O signal interface from the PCI bus, offering good noise immunity.
- Capable of using up to 16 channels of input signals as interrupt inputs.
Also capable of selecting the input signal edge for generating interrupts
< PIO-64/64L(PCI)H >, < PI-128L(PCI)H >
- Digital filtering that prevents input signal noise and chattering.
< PIO-64/64L(PCI)H >, < PI-128L(PCI)H >
- Up to 35VDC, 100mA per signal, max. output.
< PIO-64/64L(PCI)H >, < PO-128L(PCI)H >
- Zener diode connected to output transistors for protection from surge voltage. Over-current protective device provided for every eight channels
of output transistors.
< PIO-64/64L(PCI)H >, < PO-128L(PCI)H >

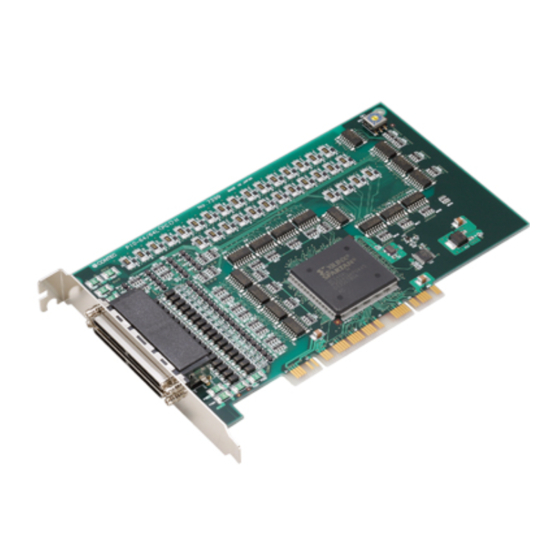

PIO-64/64L(PCI)H, PI-128L(PCI)H, PO-128L(PCI)H
This board is a PCI-compliant interface board for input/output of
digital signals.
The board can input the open/closed circuit states of switches and
can control relays.
< PIO-64/64L(PCI)H > can input and output up to 64 channels.
< PI-128L(PCI)H > can input up to 128 channels.
< PO-128L(PCI)H > can output up to 128 channels.
Using the bundled Driver Library [API-PAC(W32)], you can create
Windows application software for this board in your favorite
programming language supporting Win32 API functions, such as
Visual Basic or Visual C/C++.
Ver.1.00
1
