Contec PIO-16(PCI)H Quick Start Manual

Digital I/O Board with Opto-Isolation for PCI
PIO-16/16L(PCI)H
Digital Input Board with Opto-Isolation for PCI
PI-32L(PCI)H
Digital Output Board with Opto-Isolation for PCI
PO-32L(PCI)H
with Driver Library [API-PAC(W32)]

Features

- A different external power supply can be used for each common pin as it is shared by 16 channels.
- The PCI bus (personal computer) and the I/O interface are isolated from each other by an opto-coupler, offering good noise immunity.
- You can use all of the input signals as interrupt inputs. You can also select the interrupt trigger edge of the input signal.
<PIO-16/16L(PCI)H>, <PI-32L(PCI)H>
- The board has a digital filter feature to prevent noise or chatter from causing erroneous inputs.
<PIO-16/16L(PCI)H>, <PI-32L(PCI)H>
- Up to 35VDC, 100mA per signal, max. output.
<PIO-16/16L(PCI)H>, <PO-32L(PCI)H>
- Zener diode connected to output transistors for protection from surge voltage. Overcurrent protective device provided for every eight channels
of output transistors.
<PIO-16/16L(PCI)H>, <PO-32L(PCI)H>

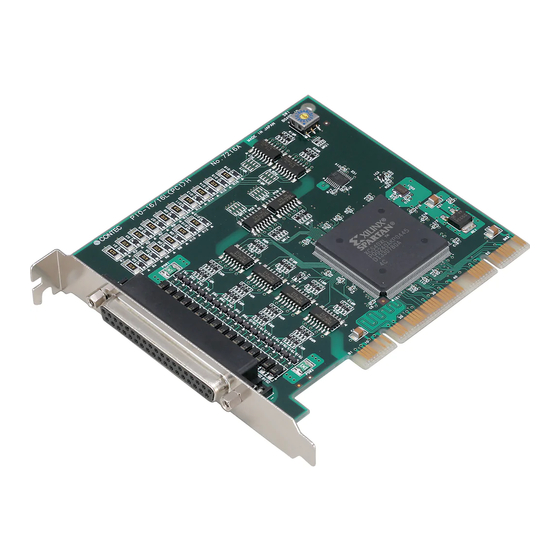

PIO-16/16L(PCI)H, PI-32L(PCI)H, PO-32L(PCI)H
This board is a PCI-compliant interface board for input/output of
digital signals.
The board can input and output digital signals at 12 - 24 VDC.
<PIO-16/16L(PCI)H> can input and output up to 16 channels.
<PI-32L(PCI)H> can input up to 32 channels.
<PO-32L(PCI)H> can output up to 32 channels.
Using the bundled API function library package [API-PAC(W32)],
you can create Windows application software for this board in your
favorite programming language supporting Win32 API functions,
such as Visual Basic or Visual C/C++.
Ver.1.00
1
