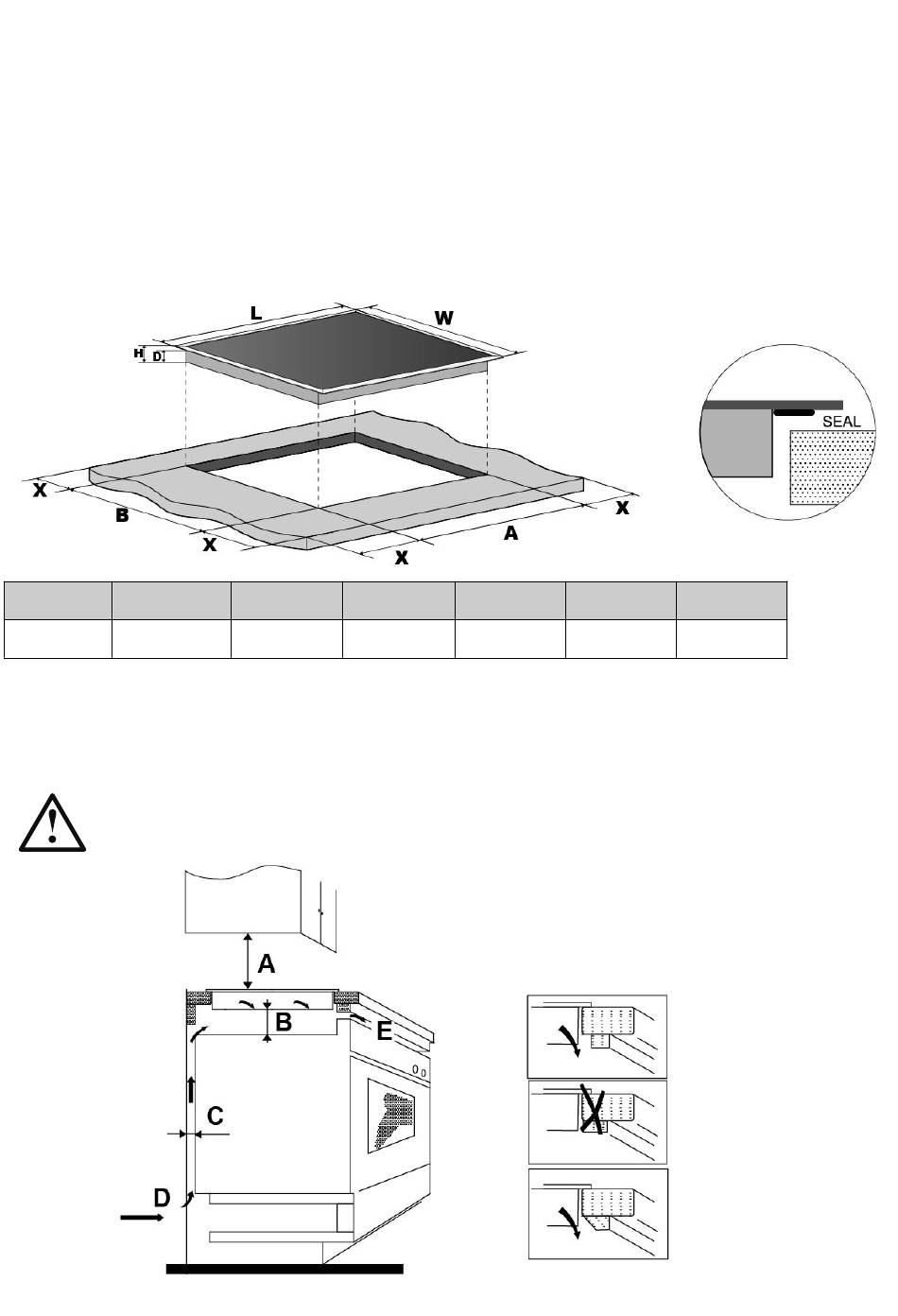

Cut out the work surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 5 cm space shall be
preserved around the hole.
Be sure the thickness of the work surface is at least 30 mm. Please select
heat-resistant work surface material to avoid larger deformation caused by the
heat radiation from the hotplate. As shown below:
L(mm) W(mm)
590 520
Make sure the Induction cooker hob is well ventilated and the air inlet and outlet
are not blocked. Ensure the induction cooker hob is in good work state. As
shown below.
Note: The safety distance between the hotplate and the cupboard above
the hotplate should be at least 760 mm.
H(mm) D(mm)
58 54
A(mm) B(mm)
565 495
19
X(mm)
50 mini
