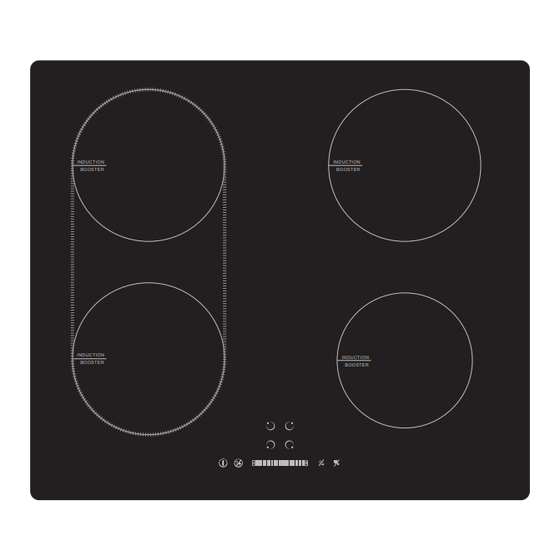

- Page 1 User Manual Instruction Manual Induction Hob MODEL: UBINDECO60BZ INDUCTION INDUCTION BOOSTER BOOSTER INDUCTION INDUCTION BOOSTER BOOSTER...
-
Page 2: Safety Warnings
Safety Warnings This instructions are for your safety. Please read them thoroughly prior to installation and retain them for future reference. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. - Page 3 Danger of fire: Do not store items on the cooking surfaces. CAUTION:The cooking process has to be supervised. A short term cooking process has to be supervised continuously. WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in a fire.
- Page 4 WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g.
-
Page 5: Product Overview
Congratulations on the purchase of your new Induction Hob. We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section. Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference. - Page 6 Reference Description Zone select key Child lock key/Connectivity key ON/OFF key D Power/Timer slider regulating key Boost control key/Keep warm Timer key/ pause key Heating zone Power Max.Power Max.Power Heating Zone （220-240V~ 50/60Hz） 1500/2000W 1200/1500W 1500/2000W 1200/1500W Total Rating Power 6400W...
-
Page 7: A Word On Induction Cooking
A Word on Induction Cooking Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up. iron pot magnetic circuit ceramic glass plate... -
Page 8: Choosing The Right Cookware
Choosing the right Cookware • Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan. • You can check whether your cookware is suitable by carrying out a magnet test. -
Page 9: Using Your Induction Hob
Using your Induction Hob To start cooking 1. Touch the ON/OFF control for 3 secnds. Th e ho b will bee p once an d th e zone s will sho w “- ” t o indicat e tha t standb y mode. Note：I f yo u d o no t select a cookin g zon e an d powe r level withi n on e minute , th e ho b will switch of f automatically. -
Page 10: When You Have Finished Cooking
If the display flashes alternately with the heat setting This means that: •You have not placed a pan on the correct cooking zone or, •The pan you’re using is not suitable for induction cooking or, •The pan is too small or not properly centred on the cooking zone. No heating takes place unless there is a suitable pan on the cooking zone. -
Page 11: Using The Pause Function
Using Child Lock Function You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). When the controls are locked, all the controls except the OFF control are disabled. To lock the controls Touch the keylock control for 3 seconds. -
Page 12: Flexible Area
FLEXIBLE AREA • Thi s are a can b e use d as a singl e zone , accordingl y t o th e cookin g need s anytime. • Flexibl e are a i s mad e of tw o independen t inductors th at can b e controlle d separately . -
Page 13: Over Temperature Protection
To activate the flexible area as a single big zone,press front left zone key and rear left zone key simultaneously. 1. The flexible zone indicator next to the power lever indicator will be light up. 2. According to the heating zone where the pan is placed, adjust heat setting by touching the Power/Timer slider regulating key(D) control. -
Page 14: Using The Timer As A Minute Minder
Power level Default working timer (min) When the pot is removed, the induction hob can stop heating immediately and the hob automatically switch off after 2 minutes. People with a heart pace maker should consult with their doctor before using this unit. -
Page 15: Setting The Timer To Turn One Or More Cooking Zones Off
Touch and hold the “-“or ”+” control of the timer to decrease or increase by 10 minutes. Touching the “-“ and ”+” together, the timer is canceled, and the timer indicator will turn off. When the time is set, it will begin to count down immediately. Th e display will show the remaining time . - Page 16 NOTE: The red dot next to power level indicator will illuminate indicating th a t zone is selected. When cooking timer expires, the corresponding cooking zone will be swit c h off automatically. Other cooking zone will keep operating if they are turned on previously. When using “the timer as an alarm”...
- Page 17 Press the keys together on the hob and the connection indicator will flash to confirm connection. The control panel of the hood will show A for five seconds to indicate connectivity has been made with the hob. Press the keys together on the hob one more time to store the connectivity settings.
-
Page 18: Technical Specification
The above are the judgment and inspection of common failures. Please do not disassemble the unit by yourself to avoid any dangers and damages to the induction hob and please contact the service department. Technical Specification UBINDECO60BZ Cooking Hob Cooking Zones 4 Zones... -
Page 19: Selection Of Installation Equipment
Installation Selection of installation equipment Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30 mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. -
Page 20: Before Locating The Fixing Brackets
A(mm) B(mm) C(mm) 50 mini 20 mini Air intake Air exit 5mm Before you install the hob, make sure that The work surface is square and level, and no structural members interfere with space requirements. The work surface is made of a heat-resistant material. ... - Page 21 packaging). Do not apply force onto the controls protruding from the hob. fig.1 Fig.2 INDUCTION INDUCTION BOOSTER BOOSTER INDUCTION INDUCTION BOOSTER BOOSTER...
-
Page 22: Connecting The Hob To The Mains Power Supply
Cautions The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics. -
Page 23: Customer Service
Customer Service If your product breaks down. To arrange an in guarantee service call, please contact customer services on the following numbers. UK and N.Ireland T: 0344 800 1128 E: uksupport@apelson.co.uk www.spareszone.co.uk Republic of Ireland (ROI) T: 014475261 E: uksupport@apelson.co.uk... - Page 24 Notes...
- Page 28 Apelson Appliances UK Ltd Unit 3 Normandy Landings Pope Street Castleford WF6 2AG United Kingdom UBINDECO60BZ User Handbook V1b...
