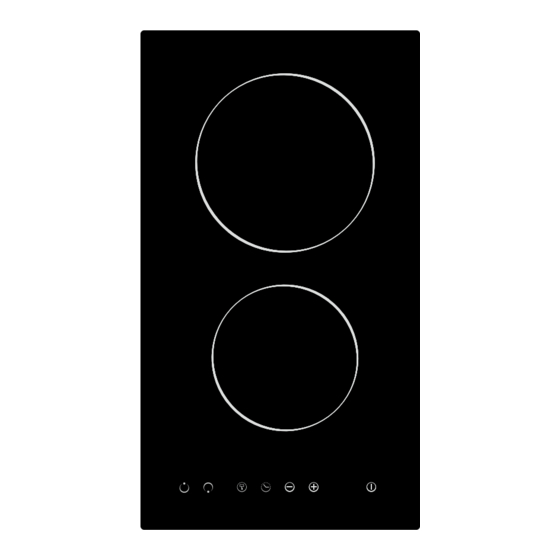

- Page 1 User Manual Instruction Manual Touch Control Ceramic Hob MODEL: UBTC30FLC...
- Page 2 [01] x 1 [03] x 4 [02] x 4 Note: Items 2 and 3 are pre-fitted in the factory there is no assembly of these components required. [04] x 1...
- Page 3 Touch Control Ceramic Hob UBTC30FLC Installation Installation...
-
Page 4: Table Of Contents
Let's get started ... Getting started... Safety Before you start more detail... Product functions Operation Care maintenance Troubleshooting Recycling disposal Technical legal information Appendix Installation... -
Page 5: Getting Started
Getting Started ... Safety Before start... - Page 6 Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried out by a competent person or qualified electrician. • This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer’s instructions.
- Page 7 Safety Make sure that the power cord is not caught under or in the appliance and avoid damage to the power cable. Do not allow the electric cables to touch the hot parts of the appliance. Do not install the appliance outdoors in a damp place or in an area which may be prone to water eaks such as under or near a sink unit In the vent of a water leak allow the machine to dry aturally.
- Page 8 Safety The Manufacturer declines all liability for personal or material damage as a result of misuse or incorrect installation of this appliance. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way...
- Page 9 Before you start Before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. Please keep this instruction booklet for future reference and pass it on to any future owners.
-
Page 10: In More Detail
more detail... Product functions Operation Care maintenance Troubleshooting Recycling disposal Technical legal information... -
Page 11: Product Functions
Operation Product functions > The ceramic hob caters for all kind of cooking, with its radiant heat cooking zones and its electronic touch controls and multi-functions, making it the ideal choice for the modern family. > The ceramic hob is extremely user-friendly, durable and safe. Special functions Protection from over-heating >... -
Page 12: Operation
Operation The following shows how to reduce total environmental impact (e.g. energy use)of the cooking process). 1. Use suitable size of pan for cooking. 2. Cover the pan with lid if possible during cooking. 3. Choose pan which has better retaining heat capacity. 4. - Page 13 Operation Operation Touch sensitive keys. All operations can be performed using touch sensitive keys (capacitive sensors) located on the front of the ceramic glass (control panel). Each key has a corresponding display. All actions are confirmed by an audible beep. Preparation before use >When the power is switched on, the buzzer will sound once and all the indicators will switch on for one second and then switch...
- Page 14 Operation Touch the key E ( ) " " for 3 seconds The timer indicator will show Loc " " Make sure the hob is turned on. 2 Touch the key E ( ) " " for 3 seconds You can now start using your hob. You can set the timer to turn one cooking zone off after the set time is up.
-
Page 15: Care And Maintenance
Care and maintenance Warning Always switch off the electricity supply before performing maintenance work. In the event of a fault, contact customer services. Care and maintenance Care Damaged power cables should be replaced by a competent person or qualified electrician. For domestic use only. - Page 16 Care and maintenance Avoid banging pots and pans down on the hob. The ceramic surface is tough but not unbreakable. Do not put detergents or flammable materials beneath the hob. Care and maintenance Appliance cleanliness Caution • Avoid rubbing with any abrasive or with the base of the pans, etc, as this will wear the markings on the top of the ceramic hob over time.
-
Page 17: Troubleshooting
Care and maintenance Troubleshooting If an problem occurs, the induction hob will enter the protective state automatically and display corresponding protective codes: Error Possible Cause What to do Message Release the key and then the Press any key more than 10 seconds appliance reset automatically The temperature inside the appliance is too Stop and cooling the appliance... -
Page 18: Recycling And Disposal
Technical and legal information Recycling and Disposal Environmental Protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. -
Page 19: Technical And Legal Information
Technical and legal information All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood. Warning: THIS APPLIANCE MUST BE EARTHED . - Page 20 Technical and legal information Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. Regulations and local electricity company regulations. For your own safety a qualified electrician or contractor who is on the roll of the National Inspection Council for Electrical Installation Contracting (NICEIC) should undertake the electrical installation.
-
Page 21: Appendix
Appendix Installation... - Page 22 Installation Hob installation Caution The ceramic hob must be installed by a suitably qualified person. Never try to install the appliance yourself. The ceramic hob must not be installed above refrigerators, freezers, washing machines or tumble dryers. The wall and the area above the hob should be able to withstand heat.
- Page 23 Installation Clearance Warning Good ventilation is required around the appliance for easier dissipation of heat and low power consumption. Sufficient clearance is required around the appliance. The gap between the hob and any cupboard above it should be at least 50mm. If a cooker hood is to be installed above the hob please consult the hood instruction manual for this minimum distance.
- Page 24 Installation Technical Specification Cooking zones 2 zones Supply voltage 220-240V~ 2900W (230V~) Total power Product size L×W×H (mm) 290×520×60 Build-in dimension A×B (mm) 260×490 Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.
- Page 25 Installation Cut out worktop to supplied dimensions shown (fig. 1) with suitable equipment. Seal the cut edge of the worktop using silicone or PTFE and allow to dry prior to fitting the hob. [02] [0 ] 4 x 1 Stretch out the supplied seal along the underside edge of the hob, ensuring the ends overlap.
- Page 26 Customer Service If your product breaks down. To arrange an in guarantee service call, please contact customer services on the following numbers. UK and N.Ireland T: 0344 800 1128 E: uksupport@apelson.co.uk www.spareszone.co.uk Republic of Ireland (ROI) T: 014475261 E: uksupport@apelson.co.uk...
- Page 27 Notes...
- Page 28 Apelson Appliances UK Ltd Unit 3 Normandy Landings Pope Street Castleford WF6 2AG United Kingdom UBTC30FLC User Handbook V1b...
