Summary of Contents for Apelson UBINDECO60F

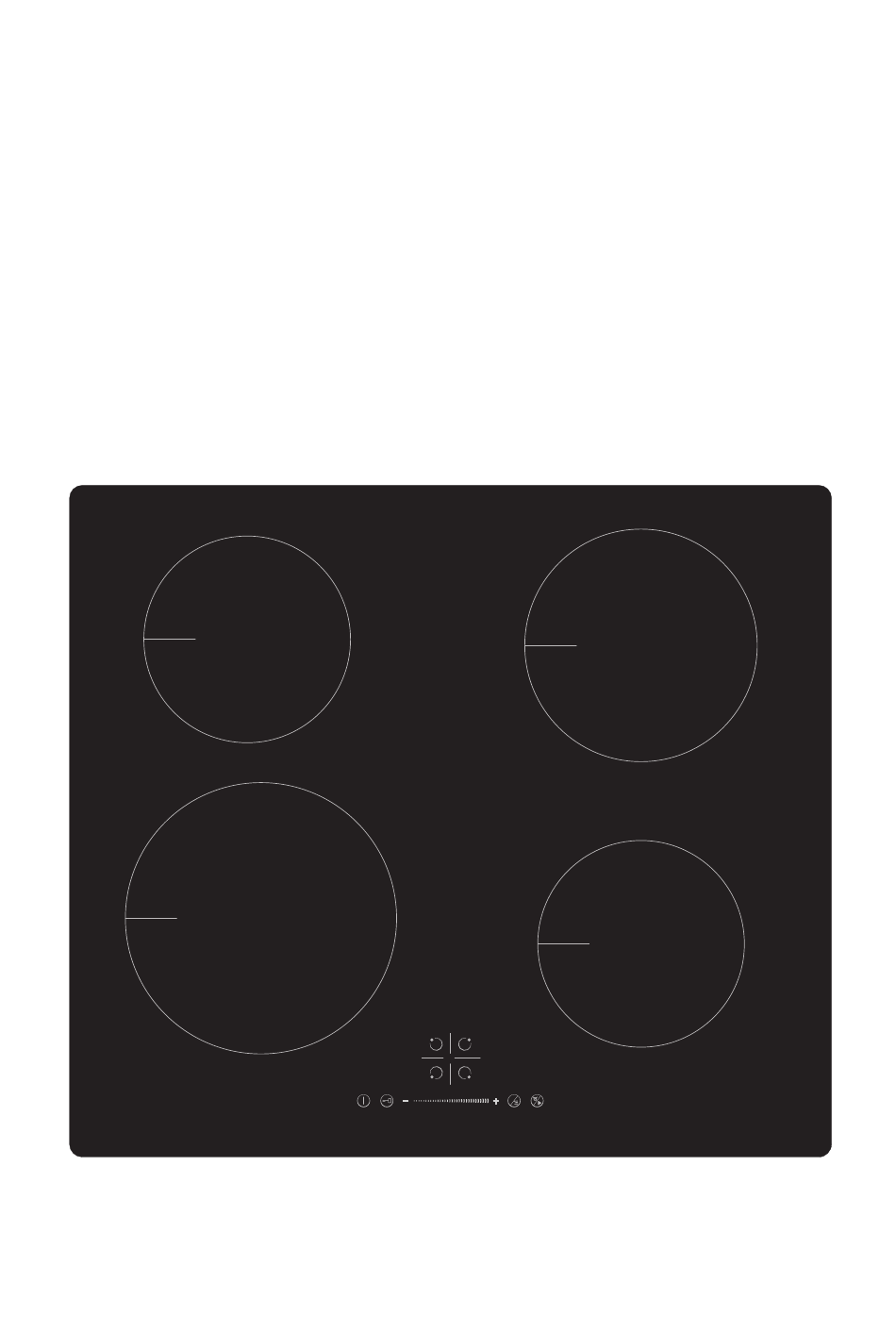

- Page 1 User Manual Instruction Manual Induction Hob MODEL:UBINDECO60F INDUCTION INDUCTION INDUCTION INDUCTION...
-
Page 2: Safety Warnings
Safety Warnings Your safety is important to us. Please read this information before using your cooktop. The appliance i s no t t o be use d by persons (including children) wit h reduce d physical , sensor y o r mental capabilities, o r lack o f experienc e and knowledge , unless the y have bee n give n supervisio n o r instruction. - Page 3 CAUTION : The cooking process has t o be supervised. A shor t ter m cooking process has t o be supervise d continuously. WARNING: Unattende d cooking o n a ho b wit h fat o r oil can be dangerous and may resul t i n a fire.
- Page 4 WARNING: Unattende d cooking o n a ho b wit h fat o r oil can be dangerous and may resul t i n fire. NEVER tr y t o extinguish a fir e wit h water , but ...
-
Page 5: Product Overview

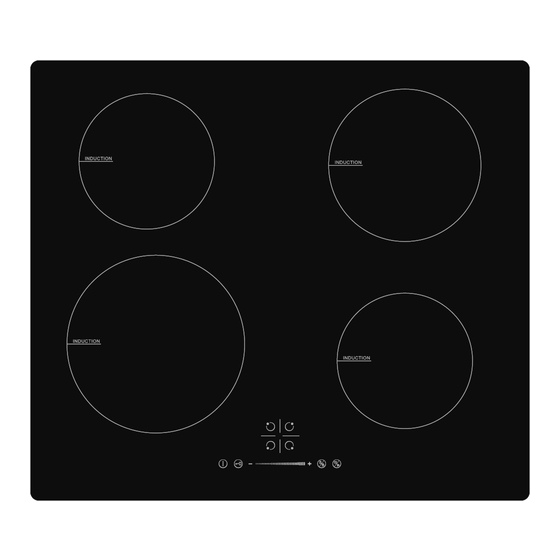

Product Overview Top View INDUCTION INDUCTION INDUCTION INDUCTION User interface... - Page 6 Reference Description Zone select key Child lock key ON/OFF key D Power/Timer slider regulating key Boost control key/Keep warm Timer key/Pause key Heating zone Power Max.Power（220-240V~ 50/60Hz） Heating Zone ITS704B2/A-S 2000W/2300W 1200W/1500W 1800W/2300W 1200W/1500W Total Rating Power 7000W...
-
Page 7: A Word On Induction Cooking
A Word on Induction Cooking Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up. iron pot magnetic circuit ceramic glass plate... -
Page 8: Choosing The Right Cookware
Choosing the right Cookware • Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan. • You can check whether your cookware is suitable by carrying out a magnet test. -
Page 9: Using Your Induction Hob
Using your Induction Hob To start cooking 1. Touch the ON/OFF control for 3 secnds. After power on, the buzzer beeps once, all displays show “ – “, indicating that the induction hob has entered the state of standby mode. 2. -
Page 10: When You Have Finished Cooking
again at step 1. • You can modify the heat setting at any time during cooking. If the display flashes alternately with the heat setting This means that: • you have not placed a pan on the correct cooking zone or, •... -
Page 11: Using The Keep Warm Function
Cancel the Boost function 1. Touching the relevant zone select key(A) that you wish to cancel. 2. Touching the slider regulating key(D) to cancel the Boost function, then the cooking zone will revert to level 9. • The function can work in any cooking zone. •... -
Page 12: Over Temperature Protection
Touch the keylock control for 3 seconds. The timer indicator will show “Lo “ To unlock the controls 1. Make sure the Induction hob is turned on. 2. Touch and hold the keylock control for a while 3. You can now start using your Induction hob. When the hob is in the lock mode, all the controls are disable except OFF can always turn the hob off with the OFF control in an emergency, but you shall unlock the hob first in the next operation... -
Page 13: Using The Timer As A Minute Minder
• You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up. • You can set it to turn one cooking zone off after the set time is up. •... - Page 14 2. Press the , the timing indicator flashes, and you can set Timer key(F) the timer at this point. 3. Using the “+” and “-“buttons, you can realize the setting of timing from 1 to 99 minutes. Hint: Touch the “-“ or “+” control of the timer once will decrease or increase by 1 minute.
-
Page 15: Failure Display And Inspection
Failure Display and Inspection If an abnormality comes up, the induction hob will enter the protective state automatically and display corresponding protective codes: Error Possible Cause What to do Message No pot or pot not suitable; Replace the pot; ER03 Water or pot on the glass over the control Clean the user interface The connection between the display board and the... -
Page 16: Selection Of Installation Equipment
Installation Selection of installation equipment Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30 mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. - Page 17 A(mm) B(mm) C(mm) 50 mini 20 mini Air intake Air exit 5mm Before you install the hob, make sure that • the work surface is square and level, and no structural members interfere with space requirements • the work surface is made of a heat-resistant material •...
-
Page 18: Before Locating The Fixing Brackets
Before locating the fixing brackets The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob. locating the fixing brackets • The unit should be placed on a stable, smooth surface (use the packaging). - Page 19 INDUCTION INDUCTION INDUCTION INDUCTION • Fix the hob on the work surface by screw four brackets on the bottom of hob (see picture) after installation. • Adjust the bracket position to suit for different work surface’s thickness.
-
Page 20: Connecting The Hob To The Mains Power Supply
Cautions 1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. 2. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics 3. - Page 21 temperature will not exceed 75˚C at any point. Check with an electrician whether the domestic wiring system is suitable without alterations.Any alterations must only be made by a qualified electrician. • If the cable is damaged or to be replaced, the operation must be carried out the by after-sale agent with dedicated tools to avoid any accidents.
-
Page 22: Customer Service
Customer Service If your product breaks down. To arrange an in guarantee service call, please contact customer services on the following numbers. UK and N.Ireland T: 0344 800 1128 E: uksupport@apelson.co.uk www.spareszone.co.uk Republic of Ireland (ROI) T: 014475261 E: uksupport@apelson.co.uk... - Page 23 Notes...
- Page 24 Apelson Appliances UK Ltd Unit 3 Normandy Landings Pope Street Castleford WF6 2AG United Kingdom UBINDECO60F User Handbook V1b...
