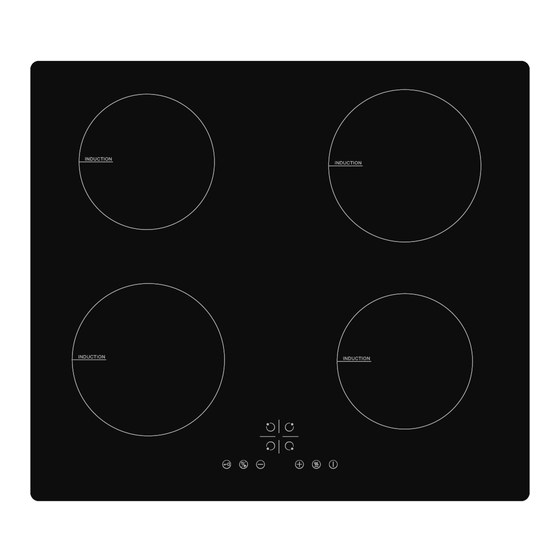

- Page 1 User Manual Instruction Manual Induction Hob MODEL: UBIND60FLC INDUCTION INDUCTION INDUCTION INDUCTION...
-
Page 2: Safety Warnings
Safety Warnings This instructions are for your safety. Please read them thoroughly prior to installation and retain them for future reference. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. - Page 3 Danger of fire: Do not store items on the cooking surfaces. CAUTION:The cooking process has to be supervised. A short term cooking process has to be supervised continuously. WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in a fire.
- Page 4 WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g.
-
Page 5: Product Overview
Congratulations on the purchase of your new Induction Hob. We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section. Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference. -
Page 6: User Interface
User interface Reference Description Zone select key Child lock key ON/OFF key Power regulating key(reduce) Power regulating key(increase) Timer key/Pause key Keep warm key Heating zone Power Heating Zone Max.Power 2000W 1200W 2000W 1200W... -
Page 7: A Word On Induction Cooking
A Word on Induction Cooking Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up. iron pot magnetic circuit ceramic glass plate... -
Page 8: Choosing The Right Cookware
Choosing the right Cookware • Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan. • You can check whether your cookware is suitable by carrying out a magnet test. -
Page 9: Using Your Induction Hob
Using your Induction Hob To start cooking 1. Touch the ON/OFF control for 3 secnds. After power on, the buzzer beeps once, all displays show “ – ”, indicating that the induction hob has entered the state of standby mode. 2. -
Page 10: When You Have Finished Cooking
If the display flashes alternately with the heat setting This means that: • you have not placed a pan on the correct cooking zone or, • the pan you’re using is not suitable for induction cooking or, • the pan is too small or not properly centred on the cooking zone. No heating takes place unless there is a suitable pan on the cooking zone. -
Page 11: Using The Pause Function
When the hob is in the lock mode, all the controls are disable except OFF can always turn the hob off with the OFF control in an emergency, but you shall unlock the hob first in the next operation Usin g th e Kee p war m Function 1.Touch th e cookin g zon e selectio n butto n that yo u wish t o use kee p warm,an indicato r nex t t o th e ke y will flash. -
Page 12: Using The Timer As A Minute Minder
working times for various power levels are shown in the below table: . Power level Default working timer (min) When the pot is removed, the induction hob can stop heating immediately and the hob automatically switch off after 2 minutes. People with a heart pace maker should consult with their doctor before using this unit. -
Page 13: Setting The Timer To Turn One Or More Cooking Zones Off
4.When th e time i s set , i t will begi n t o coun t dow n immediately . Th e displ ay will sho w th e remainin g time . 5.Buzzer will bip s fo r 3 0 second s an d th e time r indicato r will turn of f whe n th e sett ing ti me finished. -
Page 14: Failur E Displa Y An D Inspection
zones ” together , the display will show the remaining time of alarm as first priority. Press cooking zone to show the remaining time of switch off timer. Failur e Displa y an d Inspection I f an abnormalit y come s up , th e inductio n ho b will ente r th e protectiv e stat e automaticall y an d displ ay correspondin g protectiv e codes: Error Possible Cause... -
Page 15: Technical Specification
Technical Specification UBIND60FLC Cooking Hob Cooking Zones 4 Zones Supply Voltage 220-240V~ Installed Electric Power 6400W Product Size L×W×H(mm) 590X520X58 Building-in Dimensions A×B (mm) 565X495 Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice. -
Page 16: Befor E Locatin G Th E Fixin G Brackets
and the air inlet and outlet are not blocked. Ensure the induction cooker hob is in good work state. As shown below Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760 mm. A(mm) B(mm) C(mm) - Page 17 locatin g th e fixin g brackets • Th e uni t shoul d b e place d o n a stable , smoot h surfac e (us e th e packaging) . D o no t appl y forc e ont o th e control s protrudin g fro m th e hob.
- Page 18 INDUCTION INDUCTION INDUCTION INDUCTION Cautions The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics.
-
Page 19: Connecting The Hob To The Mains Power Supply
Connecting the hob to the mains power supply This hob must be connected to the mains power supply only by a suitably qualified person. Before connecting the hob to the mains power supply, check that: 1. The domestic wiring system is suitable for the power drawn by the hob. 2. - Page 20 This appliance is labeled in compliance with European directive 2002/96/EC for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.
-
Page 21: Customer Service
Customer Service If your product breaks down. To arrange an in guarantee service call, please contact customer services on the following numbers. UK and N.Ireland T: 0344 800 1128 E: uksupport@apelson.co.uk www.spareszone.co.uk Republic of Ireland (ROI) T: 014475261 E: uksupport@apelson.co.uk... - Page 22 Notes...
- Page 24 Apelson Appliances UK Ltd Unit 3 Normandy Landings Pope Street Castleford WF6 2AG United Kingdom UBIND60FLC User Handbook V1b...
