Summary of Contents for Apelson UBINDB60F

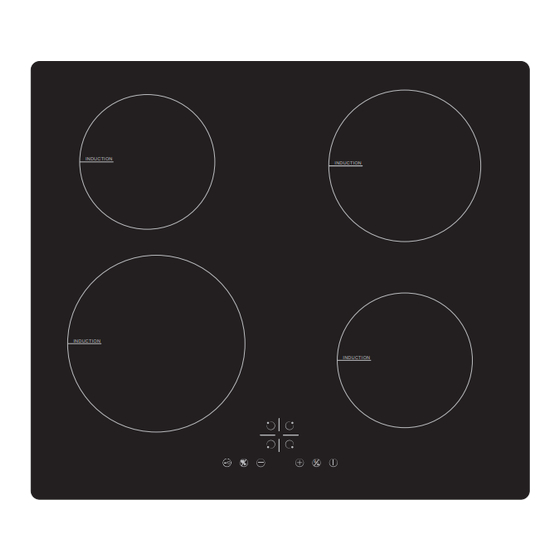

- Page 1 User Manual Instruction Manual Induction Hob MODEL: UBINDB60F INDUCTION INDUCTION INDUCTION INDUCTION...
-
Page 2: Safety Warnings
Safety Warnings This instructions are for your safety. Please read them thoroughly prior to installation and retain them for future reference. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. - Page 3 Danger of fire: Do not store items on the cooking surfaces. CAUTION:The cooking process has to be supervised. A short term cooking process has to be supervised continuously. WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in a fire.
- Page 4 WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g.
-
Page 5: Product Overview
Congratulations on the purchase of your new Induction Hob. We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section. Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference. - Page 6 Reference Description Zone select key Child lock key ON/OFF key Power regulating key(reduce) Power regulating key(increase) Boost control key/Keep warm Timer key/Pause key Heating zone Power Max.Power（220-240V~ 50/60Hz） Heating Zone 2000W/2300W 1200W/1500W 1800W/2300W 1200W/1500W Total Rating Power 7000W...
-
Page 7: A Word On Induction Cooking
A Word on Induction Cooking Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up. iron pot magnetic circuit ceramic glass plate... -
Page 8: Choosing The Right Cookware
Choosing the right Cookware • Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan. • You can check whether your cookware is suitable by carrying out a magnet test. -
Page 9: Using Your Induction Hob
Using your Induction Hob To start cooking 1 . Touch the ON/OFF control for 3 seconds. After power on, the buzzer beeps once, all displays show“ – “, indicating that the induction hob has entered the state of standby mode. 2. -
Page 10: When You Have Finished Cooking
If the display flashes alternately with the heat setting This means that: •You have not placed a pan on the correct cooking zone or, •The pan you’re using is not suitable for induction cooking or, •The pan is too small or not properly centred on the cooking zone. No heating takes place unless there is a suitable pan on the cooking zone. -
Page 11: Using The Pause Function
2. Touchin g th e slide r regulatin g key(D ) t o cancel th e Boost function , the n th e cookin g zon e will revert t o level 9. • The functio n can work i n an y cookin g zone. •... - Page 12 To unlock the controls 1. Make sure the Induction hob is turned on. 2. Touch and hold the keylock control for a while 3. You can now start using your Induction hob. When the hob is in the lock mode, all the controls are disable except OFF can always turn the hob off with the OFF control in an emergency, but you shall unlock the hob first in the next operation Over-Temperatur e Protection...
-
Page 13: Using The Timer As A Minute Minder
Using the Timer as a Minute Minder If you are not selecting any cooking zone 1.Mak e sure at least on e cookin g i s turne d on. Note : yo u can use th e minut e minde r eve n if you’re no t selectin g an y cookin g zone. - Page 14 3. Using the “+” and “-” buttons, you can realize the setting of timing from 1 to 99 minutes. Hint: Touch the “-” or “+” control of the timer once will decrease or increase by 1 minute. Touch and hold the “-” or “+”control of the timer will decrease or increase by 10 minutes.
-
Page 15: Failur E Displa Y An D Inspection
The above are the judgment and inspection of common failures. Please do not disassemble the unit by yourself to avoid any dangers and damages to the induction hob and please contact the service department. Technical Specification UBINDB60F Cooking Hob Cooking Zones 4 Zones... -
Page 16: Selection Of Installation Equipment
Installation Selection of installation equipment Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30 mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. -
Page 17: Before Locating The Fixing Brackets
A(mm) B(mm) C(mm) 50 mini 20 mini Air intake Air exit 5mm Before you install the hob, make sure that The work surface is square and level, and no structural members interfere with space requirements. The work surface is made of a heat-resistant material. ... - Page 18 locating the fixing brackets • Th e uni t shoul d b e place d o n a stable , smoot h surfac e (us e th e packaging) . D o no t appl y forc e ont o th e control s protrudin g fro m th e hob.
- Page 19 INDUCTION INDUCTION INDUCTION INDUCTION Cautions The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics.
-
Page 20: Connecting The Hob To The Mains Power Supply
Connecting the hob to the mains power supply This hob must be connected to the mains power supply only by a suitably qualified person. Before connecting the hob to the mains power supply, check that: 1. The domestic wiring system is suitable for the power drawn by the hob. 2. - Page 21 This appliance is labeled in compliance with European directive 2011/65/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.
-
Page 22: Customer Service
Customer Service If your product breaks down. To arrange an in guarantee service call, please contact customer services on the following numbers. UK and N.Ireland T: 0344 800 1128 E: uksupport@apelson.co.uk www.spareszone.co.uk Republic of Ireland (ROI) T: 014475261 E: uksupport@apelson.co.uk... - Page 23 Notes...
- Page 24 Apelson Appliances UK Ltd Unit 3 Normandy Landings Pope Street Castleford WF6 2AG United Kingdom UBINDB60F User Handbook V1b...
