Set Intrusion Detection - HIKVISION IDS-2CD7546G0-IZHSY 8-32 MM User Manual

Network Camera User Manual
Set Arming Schedule
3. Refer to
linkage method.
4. Click Save.
6.2.6

Set Intrusion Detection

Detects objects entering and loitering in a pre-defined virtual region. If it occurs, the device can take
linkage actions.
Steps
1. Go to Configuration → Event → Smart Event → Intrusion Detection.
2. Check Enable.
3. Select a Region. For the detection region settings, refer to
4. Set rules.
•
Sensitivity: The percentage of the body part of an acceptable target that enters the pre-defined
region. Sensitivity = 100 - S1/ST × 100. S1 stands for the target body part that crosses the pre-
defined region. ST stands for the complete target body. The higher the of sensitivity value, the more
easily the alarm will be triggered.
•
Threshold: The threshold for the time of the object loiters in the region. If the time that one object
stays exceeds the threshold, the alarm is triggered. The larger the value of the threshold, the
longer the alarm triggering time.
•
Object: Specify the object type to be detected and the device detects only the selected type of
object.
5. Optional: You can set the parameters of multiple areas by repeating the above steps.
6. For the arming schedule settings, refer to
Linkage Method Settings
to
UM Network Camera User Manual 071421NA
for setting scheduled time. Refer to

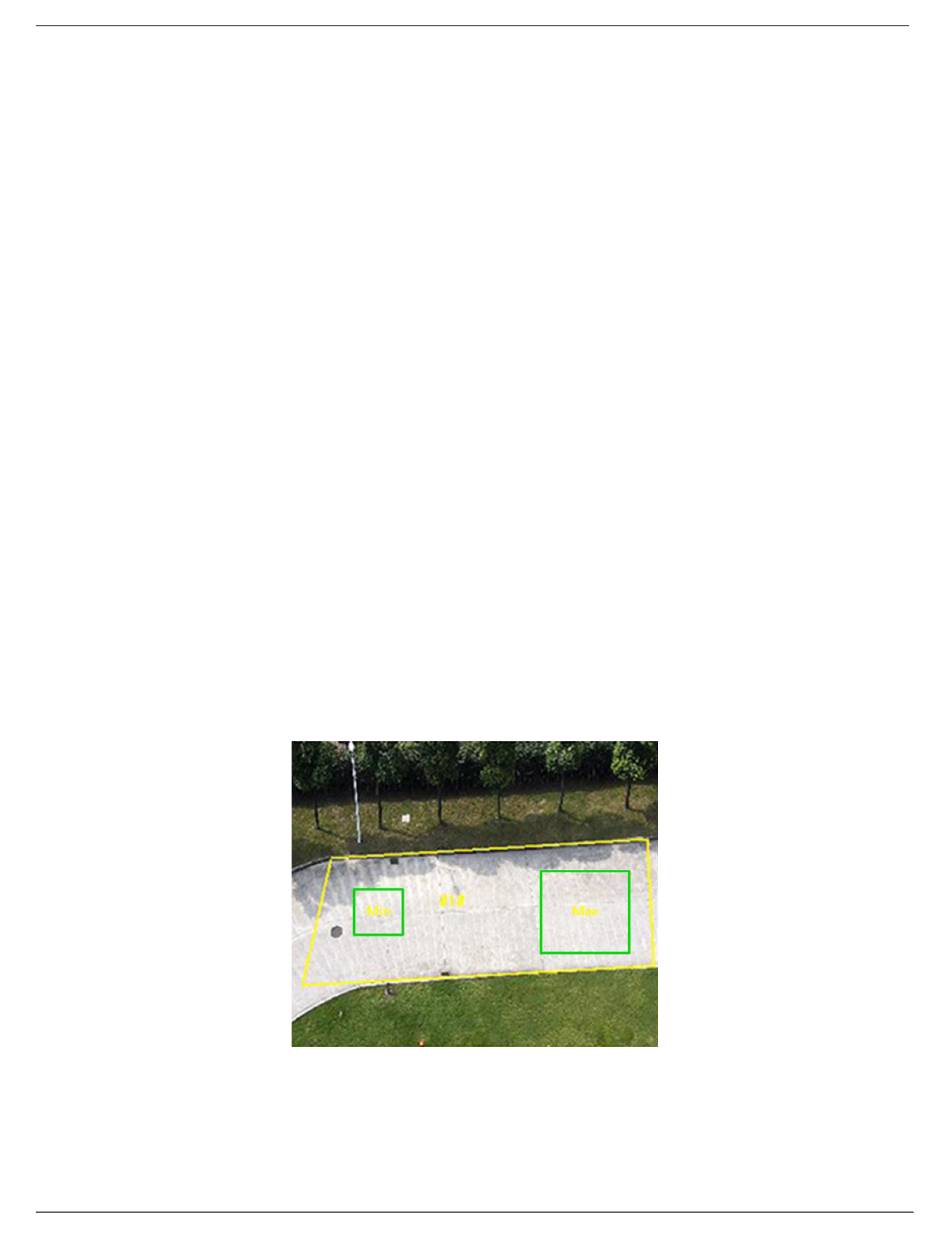

Figure 4, Set Rule
Set Arming Schedule
.
Linkage Method Settings
Draw Area
.
. For the linkage method settings, refer
for setting
50
