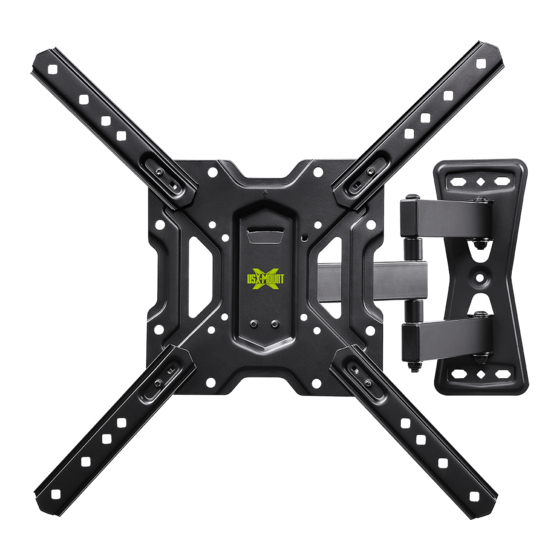

- Page 1 XMM006-1 INSTRUCTION MANUAL For 26-55" TV If you have any questions along the way, just give us a call 1-800-460-0956 or mail to customerservice@x-mount.com. We’re ready to help! USA-A1...
- Page 2 Before getting started, let’s check below lists to make sure it is just right for you! MAX:400mm/15.74" (MIN:75mm/2.95") Check your TV VESA is within No? This mount is NOT compatible. Min and Max size MAX:400mm/15.74" (MIN:75mm/2.95") Yes? Perfect ! CAUTION: DO NOT exceed the maximum weight Does your TV No? Perfect –...
- Page 3 TV INTERFACE 400mm [15.75in] 400mm [15.75in] WALL PLATE TOP VIEW - EXTENDED SIDE VIEW - EXTENDED 50mm [1.97in] +5° 224mm 481mm 281mm [8.82in] [18.95in] [11.04in] 112mm [4.41in] -15° SIDE VIEW - RETRACTED FULLY ASSEMBLED MOUNT TOP VIEW - RETRACTED 444mm [17.48in] 71mm 444mm...
- Page 4 WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.
- Page 5 Parts and Hardware for STEP 2 Lag Bolt Wall Plate Contact us at telephone 1-800-460-0956 (USA) or mail to customerservice@x-mount.com. to have Concrete Wall Anchor these additional pieces shipped directly to you. 4pcs M6x10mm Bolt Velcro x3...
- Page 6 1-1 Choose Configuration If your TV VESA size is above 200*200mm, you need to assemble extended arms onto TV plate using bolts and Alley key per below option 3 - option 6 shown. Option 1 Option 3 ⑤ ③ ③ ⑤...
- Page 7 Option 6 Option 5 300X300 400X300 400X400...
- Page 8 1-2 Select TV Screws...
- Page 9 1-4 Attach the TV Plate 1-3 Need Spacer? No, choose suitable screws and washers. VESA≤200X200mm Yes, choose suitable screws, washers and spacers. Tips: If you need to combine M6/M8(c/e/f) screws with 200X200mm<VESA≤400X400mm 2.5mm spacers( i ), you have to remove the inner circle.
- Page 10 CAUTION: Avoid potential personal injury or property damage! ● Drywall covering the wall, must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm) ●...
- Page 11 3. Drill pilot holes using a 5/32 in. (4.0 mm) diameter drill bit. IMPORTANT: Pilot holes must be drilled to a depth of 2.36 in. (60 mm). Be sure to drill into the center of the studs. 4. Install wall plate using three lag bolts .
- Page 12 CAUTION: Avoid potential personal injury or property damage! ● Mount the wall plate assembly directly onto the concrete surface ● Minimum solid concrete thickness: 8 in. (203 mm) 1. Position the wall plate on the wall at your desired height. Level the wall plate and mark the hole locations.
- Page 13 3. Insert four anchors. CAUTION: Be sure the anchors are seated flush with the concrete surface. 4. Insert wall plate using four lag bolts .Tighten the lag bolts only until they are pulled firmly against the wall plate. CAUTION: Improper use could reduce the holding power of the lag bolt. DO NOT over-tighten the lag bolts.
- Page 14 Before hanging TV, please try to pull the mount to make sure that it has been assembled on the wall tightly. Wall plate...
- Page 16 5-1 TV leveling adjustment (±4°): Loosen 2 leveling bolts on the rear of TV plate by maximum 2 turns, adjust to level, and retighten to secure. Loosen Tighten...
- Page 17 5-2 Tilting angle adjustment (+5°/-15°) ： Pull TV to your desired angle then fasten 2 tilting bolts with allen key Handle Tilting bolts -15° +5°...
- Page 18 5-3 Cables manage: Manage TV cables orderly and guide them through the velcros. Velcro...
