USE AND CARE GUIDE

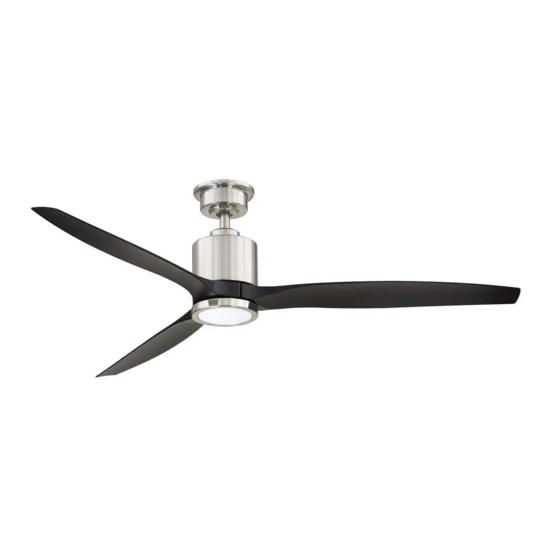

TRIPLEX 60 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
HOMEDEPOT.COM/HOMEDECORATORS
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to find
this fan and click the link of visual instruction in the product overview section.
1-800-986-3460
THANK YOU
THANK YOU
Item #1003 823 860
#1003 823 861
#1003 823 859
Model # YG749-BN
# YG749-BRB
# YG749-PN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection YG749-BN
Summary of Contents for Home Decorators Collection YG749-BN
- Page 1 USE AND CARE GUIDE TRIPLEX 60 IN. CEILING FAN Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Visual instruction of how to install this fan: Visit www.homedepot.com and enter either the Item or Model number to find...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............Operation ..............Preparing the Transmitter ............Safety Information ............Learning Process ..............Operating Your Fan and Remote Control ....... Warranty ................. Warm/Cool Weather Operating Instructions ......Pre-Installation .............. Care and Cleaning ............Tools Required ................. Troubleshooting ............ -
Page 3: Safety Information
The fan must be mounted with a minimum of 7 ft. (2.1m) responsible for this declaration: clearance from the trailing edge of the blades to the floor. Model Number: YG749-BN, YG749-BRB, YG749-PN Company Name: TAL INTERNATIONAL CORPORATION Avoid placing objects in the path of the blades. -
Page 4: Warranty
Warranty The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of five years after the date of purchase by the original purchaser. -
Page 5: Hardware Included
Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Part Description Description Quantity Quantity Plastic wire nut Canopy mounting screw with lock washer (preassembled) Blade screw with lock washer and metal washer Clevis pin (preassembled) Cotter pin (preassembled) Cross pin (preassembled) Setscrew (preassembled) -
Page 6: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Part Description Description Quantity Quantity Part Part Description Description Quantity Quantity Mounting bracket (preassembled) Fan motor assembly Canopy ring (preassembled) Blade Canopy Light kit mounting plate Canopy bottom cover (preassembled) 14 watt LED Light kit Hanger ball/downrod assembly Plastic shade Coupling cover... -
Page 7: Dual Mounting Instructions
Pre-Installation (continued) DUAL MOUNTING INSTRUCTIONS DUAL MOUNTING INSTRUCTIONS This ceiling fan is supplied with two types of hanging assemblies: the standard ceiling installation using the downrod with ball and socket mounting, and the "close-to-ceiling" mounting. The "close-to-ceiling" mounting is recommended in rooms with less than 8 ft. ceilings or in areas where additional space is desired from the floor to the fan blades. -
Page 8: Installation
Installation MOUNTING OPTIONS MOUNTING OPTIONS NOTE: You may need a longer downrod to maintain proper WARNING: To reduce the risk of fire, electric shock, or blade clearance when installing on a steep, sloped ceiling. personal injury, mount the fan to an outlet box marked The maximum angle allowable is 18°... -
Page 9: Assembly
Assembly — Standard Ceiling Mounting Preparing the canopy Preparing the motor □ □ Remove the cotter pin (EE) and clevis pin (DD), and Remove the canopy ring (B) from the canopy (C). loosen the two collar setscrews (HH) from the motor collar. -
Page 10: Close-To-Ceiling Mounting
Assembly — Close-to-Ceiling Mounting Preparing the canopy Preparing the motor □ □ Remove the canopy ring (B) from the canopy (C). Remove the cotter pin (EE), clevis pin (DD) and two collar setscrews (HH) from the motor collar. □ Remove the mounting bracket (A) from the canopy (C) by loosening the four canopy mounting screws (BB) □... -
Page 11: Hanging The Fan
Assembly — Hanging the Fan Attaching the fan to the electrical box WARNING: To reduce the risk of fire, electric shock or other personal injury, mount the fan only to an outlet box or supporting system marked acceptable for fan support and use the mounting screws provided with the outlet box. - Page 12 Assembly — Hanging the Fan (continued) Making the electrical connections Ground WARNING: To avoid possible electrical shock, be sure conductor Neutral electricity is turned off at the main fuse box before wiring. Black White WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire).
- Page 13 Assembly — Hanging the Fan (continued) Standard ceiling mounting Close-to-ceiling mounting WARNING: Make sure the tab on the mounting bracket (A) WARNING: Locking slots of the canopy (C) are provided properly sits in the groove in the hanger ball (E) before only as an aid to mounting.
-
Page 14: Attaching The Fan Blades
Assembly — Attaching the Fan Blades Fastening the blade Removing the rubber assemblies to the motor packing mounts □ The fan motor assembly (G) is shipped with rubber WARNING: To reduce the risk of personal injury, do not packing mounts (SS) to prevent movement during insert foreign objects between rotating fan blades (H). -
Page 15: Installing The Light Kit
Assembly — Installing the Light Kit Attaching the light kit mounting Attaching the LED light kit plate to the mounting ring and plastic shade □ Remove one of the three light kit mounting plate CAUTION: Before starting installation, disconnect the screws (JJ) from the mounting ring (TT) and loosen power by turning off the circuit breaker or removing the fuse the other two screws. -
Page 16: Operation
Operation PREPARING THE TRANSMITTER Batteries will weaken with age and should be NOTE: replaced before leaking takes place as this will damage the remote control. Dispose of used batteries properly and keep them out of the reach of children. □ Remove the battery cover by pressing firmly on the arrow and sliding the cover off. - Page 17 Operation (continued) To clear all other remotes from your fan’s memory, use the steps below: □ Ensure AC power to the fan is OFF to begin the learning process. □ Slide the dip switch in the battery compartment to the "0" position.
-
Page 18: Operating Your Fan And Remote Control
Operation (continued) OPERATING YOUR FAN AND REMOTE CONTROL NOTE: The fan will store the last used speed setting for the next time it is turned on. NOTE: You must turn the fan on prior to using the speed or time functions. NOTE: On each start up of your ceiling fan, the fan blades will oscillate back and forth. -
Page 19: Warm/Cool Weather Operating Instructions
Operation (continued) 4. Timer □ Pressing the timer buttons will automatically turn fan and light (if light is on) off after 2, 4, or 8 hours. When you activate the timer mode, the LED to the left of the time above the clock will illuminate. Disables timer 5. -
Page 20: Care And Cleaning
Care and Cleaning Do Do Do not Do not □ □ Check the support connections, brackets, and blade Use water when cleaning. Water could damage the motor, attachments twice a year. Make sure they are secure. or the wood, or possibly cause an electrical shock. Because of the fan’s natural movement, some □... - Page 21 Troubleshooting (continued) Problem Problem Solution Solution □ Do not connect the fan with wall mounted variable speed control(s). The remote control is not working. □ Make sure the frequency switches are set correctly. □ Reset the transmitter by going through the transmitter “LEARNING PROCESS”. □...
-
Page 22: Service Parts
Service Parts Part Part Description Description Part Part Description Description Mounting bracket (preassembled) Plastic wire nut Canopy ring (preassembled) Canopy mounting screw with washer (preassembled) Canopy Blade screw with lock washer and metal washer Canopy bottom cover (preassembled) Clevis pin (preassembled) Hanger ball/downrod assembly Cotter pin (preassembled) Coupling cover... - Page 23 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
