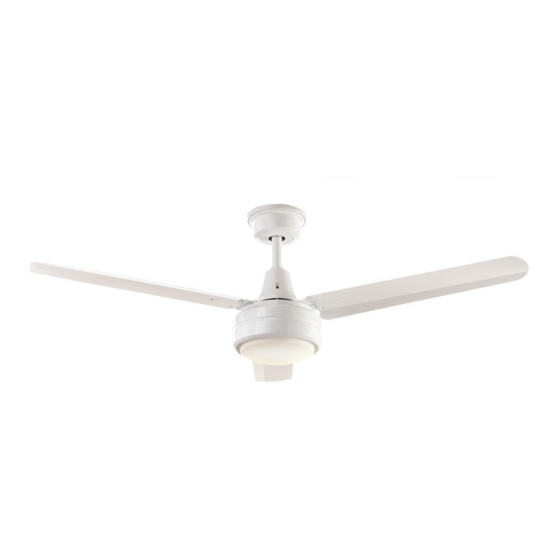

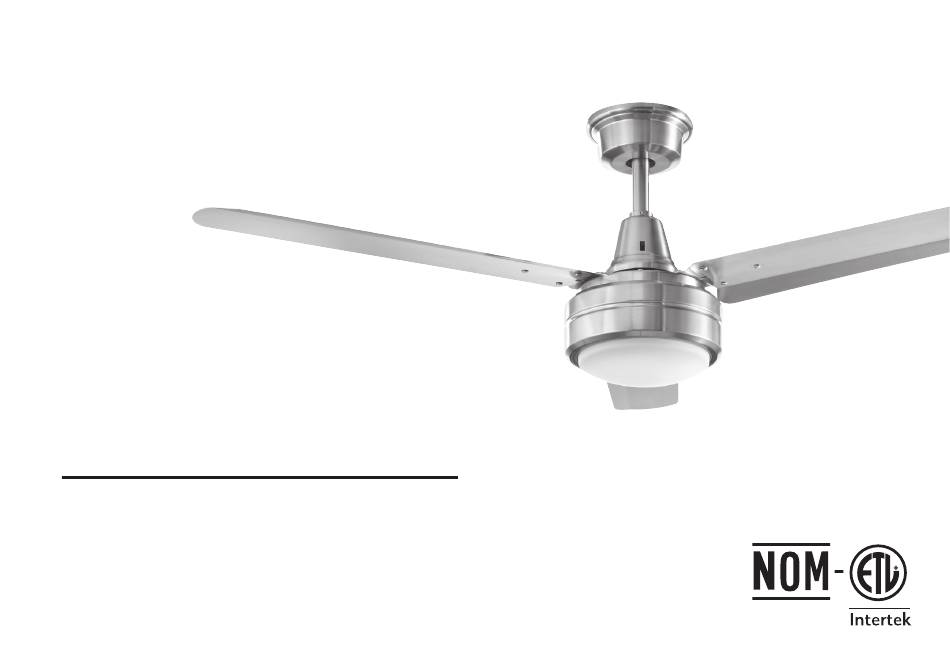

- Page 1 Model: YG583-BN 122 891 120 V~ 60 Hz 70 W Read and follow all the instructions before using this product. Merryn Ceiling Fan Owner’s Manual Merryn Ventilador de Techo de 1,32 Manual del Propietario...
- Page 2 Home Decorators Collections Merryn...
- Page 3 VENTILADOR DE TECHO/CEILING FAN Marca/Brand: Home Decorators Collection Modelo/Model: 122891 120 V~ 60 Hz 70 W Consumo de energía por unidad de tiempo en operación (Energy Consumption): 62.28 Wh Importador/Importer: SERVICIOS HOME DEPOT, S. DE R.L. DE C.V. Ricardo Margain 605, Santa Engracia, San Pedro Garza García, Nuevo León, C.P.
-
Page 4: Table Of Contents
52” Merryn Thank you for purchasing our ceiling fan. This product has been manufactured with the highest standards of safety and quality. The finish of this fan is weather resistant, but over time will Ceiling Fan naturally weather and fade. -
Page 5: Safety Rules
Safety Rules - Read and Save These Instructions To reduce the risk of electric shock, insure electricity has been turned off conductor on one side of the outlet box and ungrounded conductor on the at the circuit breaker or fuse box before beginning. other side of the outlet box. -
Page 6: Unpacking Your Fan
Unpacking Your Fan Unpack your fan and check the contents. You should have the following items: Set of blades (3) Mounting plate Blade Attachment Hardware (7 Screws, 7 Lock Washers) Canopy assembly LED Light kit Ball/downrod assembly Glass shade Electrical Hardware Decorative downrod ring 4-speed wall control with 2 mounting (3 Plastic Wire Nuts) -
Page 7: Installing Your Fan
Installing Your Fan Provide Strong Support Tools Required Figures 1~3 are examples of different ways to mount the outlet box. Phillips screwdriver, straight slot screwdriver, step ladder and wire cutters. Recessed Ceiling Outlet Box Mounting Plate Mounting Options Figure 3 Outlet Box Note: You may need a longer downrod to If there isn't an existing NOM listed mounting box,... - Page 8 Hanging the Fan Carefully feed the motor wires up through the Loosen but Remove downrod. Thread the downrod into the collar. do not Remove Align the holes and replace the clevis pin and REMEMBER to turn off the power. Follow the cotter pin.
- Page 9 Installing Fan to NOM Listed the Electrical Box Ground Lead Cross pin Outlet Box Set Screw Hanger Ball Downrod WARNING Mounting TO REDUCE THE RISK OF FIRE, ELECTRIC Motor Wires SHOCK OTHER PERSONAL INJURY. Screws (Supplied Pin in Locked Ceiling Canopy MOUNT FAN ONLY TO AN OUTLET BOX OR with Outlet Box) Positioon...
- Page 10 Making the Electrical Connections WARNING TO AVOID POSSIBLE ELECTRICAL SHOCK, BE SURE ELECTRICITY IS TURNED OFF AT THE Wall Outlet Box Switch Wall Plate MAIN FUSE BOX BEFORE WIRING. NOTE Screws Screws INSTALLATION OF THIS FAN REQUIRES THAT A THREE-CONDUCTOR CABLE WITH GROUND WIRE BE RUN BETWEEN CEILING AND WALL OUTLET BOX, OR THE OSCILLAT- ING FEATURE WILL NOT WORK.
- Page 11 Ground conductor Black White Wall Outlet Box Speed/oscillation Switch Blue Green Black White Blue Black Black Black/white Ac To Wall Switch Yellow/green Wall Switch Ground Wall Outlet Box Figure 12 Figure 13...
- Page 12 Finishing the Fan Installing the Wall WARNING MAKE SURE THE TAB ON THE HANGING Installation Transmtter BRACKET PROPERLY SITS IN THE GROOVE IN THE HANGER BALL BEFORE ATTACHING THE CANOPY TO THE BRACKET BY TURNING THE Remember to shut the power off at the circuit WARNING HOUSING UNTIL IT DROPS INTO PLACE.
- Page 13 Attaching the Fan Blades Align the holes from the blade to the holes from the motor, and secure the blade in place with screws and and lock waher provided. (Fig. Motor Repeat this process to attach the other two Screws with blades.
- Page 14 Blade Balancing All blades are grouped by weight during assembly. Because natural woods vary in density, the fan may wobble even though the blades are weight Touching Ceiling matched. The following procedure should correct most fan wobble. Check after each step. Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by loose parts).
-
Page 15: Installing The Light Kit
Installing the Light Kit Installing the Mounting Plate NOTE BEFORE STARTING INSTALLATION, DISCON- Remove 1 of the 3 screws from the mounting NECT THE POWER BY TURNING OFF THE ring and loosen the other 2 screws. (Do not CIRCUIT BREAKER OR REMOVING THE FUSE remove) AT FUSE BOX. -
Page 16: Operating Your Transmitter
Operating Your Transmitter Restore power to the ceiling fan, and test for The reverse switch is located on the surface of the proper operation. coupling cover. This switch controls directions: forward (switch down) or reverse (switch up). button: The button is used to set the fan NOTE speed as follows: WAIT FOR FAN TO STOP BEFORE REVERSING... -
Page 17: Care Of Your Fan
Care of Your Fan Troubleshooting PROBLEM SOLUTION Here are some suggestions to help you maintain your fan. The fan will not start. Check the main and branch circuit fuses or breakers. Because of the fan's natural movement, some Check the line wire connections to the fan and switch wire connections connections may become loose. -
Page 18: Specifications
Specifications FAN SIZE SPEED VOLTS AMPS WATTS N.W. G.W. C.M. 0.17 10.23 65.09 0.25 21.40 106.82 MEDIUM 8.58 kg 9.72 kg 52” 0.040 (18.88 lbs) (21.38 lbs) 0.29 30.19 135.36 MED. HIGH 0.34 40.30 159.58 HIGH These are approximate measures. They do not include Amps and Wattage used by the light kit. Importer: SERVICIOS HOME DEPOT, S.
