Item #1005 711 231
Model #YG786-MBK
USE AND CARE GUIDE

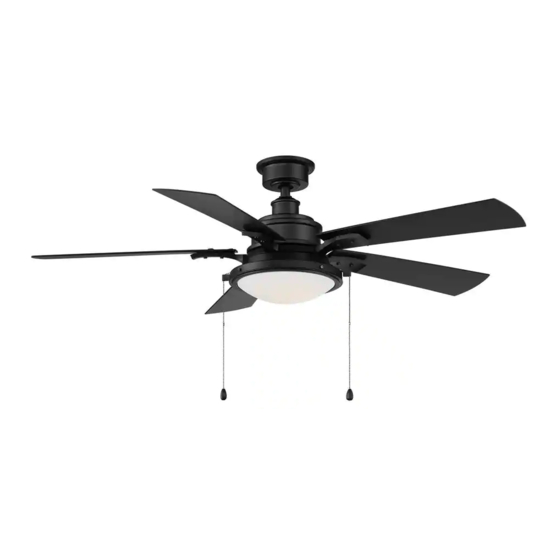

BAXLEY POINT OUTDOOR 54 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to find
this fan and click the link of visual instruction in the product overview section.
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Home Decorators Collection!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BAXLEY POINT OUTDOOR YG786-MBK and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Decorators Collection BAXLEY POINT OUTDOOR YG786-MBK

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............Operation ..............Pull Chain Operating Instructions .......... Safety Information ............Reverse Switch Operating Instructions ........Warranty ................. Care and Cleaning ............Pre-installation .............. Troubleshooting ............Specifications ................Tools Required ................. Service Parts ..............Hardware Included ..............
  • Page 3: Safety Information

    Safety Information To reduce the risk of electric shock, ensure electricity has However, there is no guarantee that interference will not occur been turned off at the circuit breaker or fuse box before in a particular installation. If this equipment does cause harmful beginning.
  • Page 4: Warranty

    Warranty The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of five years after the date of purchase by the original purchaser.
  • Page 5: Hardware Included

    Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Part Description Description Quantity Quantity Plastic wire nut Pull chain and fob Hex wrench Hex screw HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance.
  • Page 6: Package Contents

    Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Part Description Description Quantity Quantity Part Part Description Description Quantity Quantity Mounting bracket (preassembled) Blade Canopy ring (preassembled) Blade arm Canopy Switch housing Hanger ball/downrod assembly 20W LED Light kit Coupling cover Plastic shade assembly Fan motor assembly...
  • Page 7: Installation

    Installation MOUNTING OPTIONS MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock, or NOTE: You may need a longer downrod to maintain proper personal injury, mount the fan to an outlet box marked blade clearance when installing on a steep, sloped ceiling. acceptable for fan support using the screws provided with the The maximum angle allowable is 18°...
  • Page 8: Assembly

    Assembly Preparing the canopy Preparing the motor □ □ Remove the cotter pin (FF) and clevis pin (GG), and Remove the canopy ring (B) from the canopy (C). loosen the two collar setscrews (HH) from the motor collar. □ Remove the two non-slotted canopy mounting screws with lock washers (EE) from the canopy (C), and □...
  • Page 9: Hanging The Fan

    Assembly — Hanging the Fan Hanging the fan to the mounting Installing the mounting bracket bracket to the electrical box WARNING: To reduce the risk of fire, electric shock or WARNING: The tab in the ring must rest in the groove of other personal injury, mount the fan only to an outlet box or the hanger ball/downrod assembly (D).
  • Page 10 Assembly — Hanging the Fan (continued) Making the electrical connections Ground WARNING: To avoid possible electrical shock, be sure conductor Neutral electricity is turned off at the main fuse box before wiring. Black White WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire).
  • Page 11 Assembly — Hanging the Fan (optional) Single Switch Connections Dual Switch Connections □ □ On a single switch the fan and light can be turned on or On a dual switch the fan and light can be turned on or off off together.
  • Page 12 Assembly — Hanging the Fan (continued) Installing the canopy Outlet Box WARNING: Make sure the tab on the mounting bracket (A) properly sits in the groove in the hanger ball/downrod assembly (D) before attaching the canopy (C) to the mounting bracket (A) by turning the canopy (C) until it drops into place.
  • Page 13: Attaching The Fan Blades

    Assembly — Attaching the Fan Blades Removing the rubber packing mounts □ The fan motor assembly (F) is shipped with rubber packing mounts (NN) to prevent movement during transportation. Remove the five rubber packing mounts (NN) from the fan motor assembly (F) and discard prior to attaching the blade arms (H).
  • Page 14 Assembly — Attaching the Fan Blades (continued) Fastening the blade assemblies to the motor WARNING: To reduce the risk of personal injury, do not bend the blade arms (H) while installing, balancing the blades (G), or cleaning the fan. Do no insert foreign objects between rotating fan blades (G).
  • Page 15: Installing The Light Kit

    Assembly — Installing the Light Kit Attaching the switch housing Attaching the light kit to the to the mounting ring switch housing □ Remove one of the three light kit mounting screws (XX) CAUTION: Before starting installation, disconnect the from the switch housing (I) and loosen the other two power by turning off the circuit breaker or removing the fuse screws (XX).
  • Page 16 Assembly — Installing the Light Kit (continued) Installing the light plastic shade assembly CAUTION: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at the fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock.
  • Page 17: Operation

    Operation PULL CHAIN OPERATING INSTRUCTIONS PULL CHAIN OPERATING INSTRUCTIONS Install two pull chains and fobs (BB) onto the pull chains located in the switch housing (I). Turn on the power and check the operation of the fan. The pull chain controls the fan speed as follows: 1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off.
  • Page 18: Care And Cleaning

    Care and Cleaning Do Do Do not Do not □ Check the support connections, brackets, and blade □ Use water when cleaning. Water could damage the motor, attachments twice a year. Make sure they are secure. or the wood, or possibly cause an electrical shock. Because of the fan’s natural movement, some connections may become loose over time.
  • Page 19 Troubleshooting (continued) Problem Problem Solution Solution □ Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan self-adjust.
  • Page 20: Service Parts

    Service Parts Part Part Description Description Part Part Description Description Mounting bracket (preassembled) Plastic wire nut Canopy ring (preassembled) Pull chain and fob Canopy Hex wrench Hanger ball/downrod assembly Hex screw Coupling cover Fan motor assembly Blade Blade arm Switch housing 20W LED Light kit Plastic shade assembly...
  • Page 21 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
