Summary of Contents for KOBE IS2336SQB-1

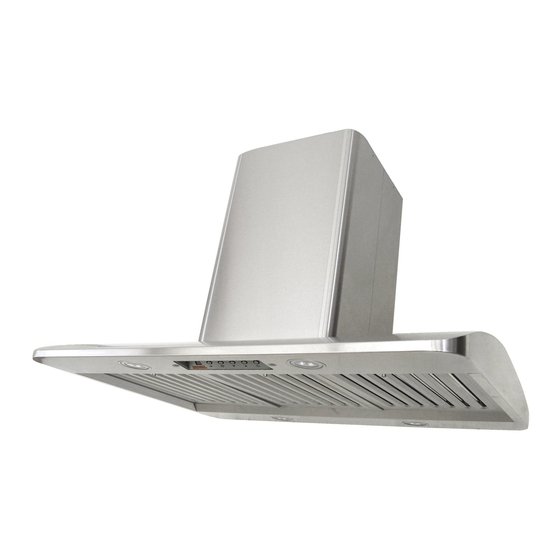

- Page 1 KOBE Brand Range Hood Model No. IS2336SQB-1 (36”) IS2342SQB-1 (42”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 3. Contact your merchant for product replacement due to shipping damages, cosmetic damages or defects. 4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to info@koberangehoods.com NO RETURN, NO REFUND, NO EXCHANGE IF: 1. PRODUCT HAS BEEN INSTALLED 2.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................2 COMPONENTS OF PACKAGE....................4 INSTALLATION .......................... 5 OPERATING INSTRUCTION ....................10 MAINTENANCE ........................13 SPECIFICATIONS ........................13 MEASUREMENTS & DIAGRAMS .....................13 PARTS LIST ..........................16 CIRCUIT DIAGRAM ........................18 TROUBLE SHOOTING ......................19 WARRANTY ..........................20 PRODUCT REGISTRATION .....................22 - READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -... -
Page 4: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
COMPONENTS OF PACKAGE (Must keep all material for returns or refunds) Range Hood Box (Box 1 of 2) {A} KOBE Range Hood {B} Baffle Filters {C} Warranty Registration Card {D} Mounting Template {E} Quick Reference Guide Pre-installed Duct Cover Box (Sold Separately) Box 2 of 2... -
Page 7: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Preferred Height of Counter Top to Hood Bottom (Recommended 30”... - Page 8 Preparations of Ductwork and Location NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1. A straight, short venting run will allow the hood to perform more efficiently. Try to avoid as many transitions, elbows, and long run as possible.
- Page 9 Figure 2 Figure 3 Figure 4...
- Page 10 Duct Cover Installation Slide the inner duct cover up and secure with four (4x8 mm) screws (provided) to the upper telescopic stack. Refer to Figure 5. Hood Installation Slide outer duct cover up and place 4 temporary screws to hold the duct cover. Refer to Figure 6. Install the hood using eight (3/16x3/8 mm) screws (provided) to secure hood to telescopic stack.
- Page 11 Wiring to Power Supply SAFETY WARNING RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.
-
Page 12: Operating Instruction
OPERATING INSTRUCTION Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. Power Control Press Power Control to turn On/Off the range hood. Speed Control The fan will start on Speed #3. Press button to decrease the speed level.Press button to increase the speed level. - Page 13 ECO Mode Control ECO Mode is set to turn fan on QuietMode™ setting for 10 minutes every hour to remove excess moisture, microscopic particles and odors for better kitchen air quality. ECO Mode is independent from the Power Control and delay shutoff. ECO Mode can be activated while fan is running or off.
-
Page 14: Maintenance
MAINTENANCE For optimal performance, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. -
Page 15: Specifications
6-Speed Electronic Button Control with LED Display LIGHTS 3-Level Lighting 4 x LED Lights (3W) HOOD (IS2336SQB-1) 35-3/4” x 27” x 7” DIMENSION (W x D x H) (IS2342SQB-1) 41-3/4” x 27” x 7” DUCT COVER Two-Piece Adjustable Telescopic Stack... -
Page 16: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS All measurements in ( ) are millimeters. All inch measurements are converted from millimeters. Inch measurements are estimated. Duct Cover Sold Separately MODEL NO. MAX. HT. INTSALLED IS123DC-1 18-1/8” 19-1/4” 37-3/8 14-5/8” 22-5/8” 37-1/4” 36-3/8” (460) (490) (950) (370) (575) -
Page 17: Parts List
PARTS LIST MODEL NO.: IS2336SQB-1 IS2342SQB-1 BOX 1of 2 DESCRIPTION MODEL /SIZE PART NO. 6” Round Plastic Exhaust L1-0505-0003 L1-0403-0301 LED Light (3W) Motor (B) L1-0301-0120-102B Motor (A) L1-0301-0120-102AL L1-0251-0737-B Turbine Impeller (B) Turbine Impeller (A) L1-0251-0737-A Plastic Oil Tunnel... - Page 18 MODEL NO.: IS2336SQB-1 IS2342SQB-1 Box 2 of 2 (Duct Cover)
-
Page 19: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: IS2336SQB-1 IS2342SQB-1... -
Page 20: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s Installation, power is ON. Use a voltage meter to check both motors the power supply. and lights are The wire connection is not secure. Check and tighten wire connection. -
Page 21: Warranty
TWO-YEAR LIMITED WARRANTY FOR PARTS AND LABOR ON KOBE PREMIUM/BRILLIA SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will, at our sole discretion, choose to repair or replace the product free of charge that failed due to manufacturing defects. - Page 22 3. Have the model number 4. Have the serial number 5. Have a description of the nature of any defect in the product or part TO REQUEST WARRANTY SERVICE, PLEASE CONTACT THE KOBE RANGE HOODS SERVICE CENTER: KOBE SERVICE CENTER (USA ONLY)
- Page 23 1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center (USA ONLY) Toll Free: 1-855-800-KOBE (5623) Email: kobe@adcoservice.com For service in Canada and to report a problem, please contact:...
- Page 24 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
