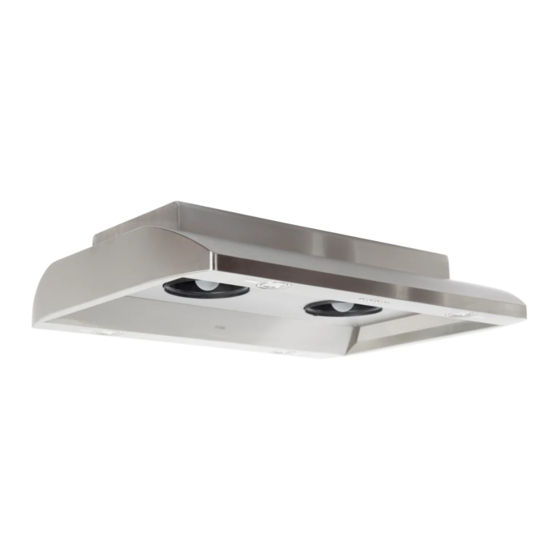

- Page 1 KOBE Brand Range Hood Model No. IS2336SQ IS2342SQ IS-123 SERIES – 7” HEIGHT INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
-
Page 2: Table Of Contents
- READ AND SAVE THESE INSTRUCTIONS - CONTENTS Important Safety Instructions………………………………………………………………. Components of Package.………………………………………………………………….. Installation…………………………………………………………………………………… Operating Instructions…………………………………...…………………………………. Maintenance…………………………………………………………………………………. Specifications…………………………………………………….……..…………………... Measurements & Diagrams…………………………………………………………...…… Parts List…………………………………………………………………..…………………. Circuit Diagram………………………………………………………………...……………. Disclaimer……………………………………………………………………………………. Warranty…………………………………………………………………...………………… Product Registration………………………………………………………...……………… - READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING - A L L W IR IN G M U S T B E D O N E B Y A P R O F E S S IO N A L A N D IN A C C O R D A N C E W IT H N AT IO N A L A N D L O C A L E LE C T R IC A L C O D E S . -
Page 3: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 4 What to Do In The Event Of a Range Top Grease Fire SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 5: Components Of Package
COMPONENTS OF PACKAGE (M u s t k e e p a ll m a te ria l fo r re tu rn s o r re fu n d s ) BOX 1: {A} KOBE Range Hood {B} Mounting Template {C} Warranty Registration Card {D} Instructions Manual ORIGINAL KIT... -
Page 6: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installations To calculate the length of the installation, please refer to Table 1. (All calculation is measure in inches.) TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Preferred Height of Counter Top to Hood Bottom (Recommended... - Page 7 Telescopic Stack Installation Note: Duct cover with telescopic stack sold separately. Mark centerlines of cook top or range on ceiling above. Use centerlines marked on ceiling to position the mounting template as shown in Figure 2. Remove and save template. Cut and remove ceiling drywall. Install 2” x 4” cross framing lumber (not provided) between ceiling joists.
- Page 8 Duct Cover Installation Slide the duct cover up and secure the inner duct cover to the telescopic stack with four (4x8 mm) screws (provided). Refer to Figure 5. Hood Installation Place temporary screws to hold the duct cover up. Install the hood as shown in Figure 6. Use eight (3/16x3/8 mm) screws (provided) to secure hood to telescopic stack.
- Page 9 Ductwork Installation Note: Skip this step if installing recirculating kit. 14. Use 6” round pipe to connect the plastic exhaust on the hood to the ductwork above. 15. Use duct tape to make all joints secure and air tight. Final Assembly 16.
-
Page 10: Operating Instructions
OPERATING INSTRUCTION This KOBE hood is equipped with four electronic controls with a 10-second standby startup & 30-second delay shutoff, two powerful centrifugal turbine impellers, and four bright 12-volt 20- watt halogen lights. The four control buttons are Light Control, Speed Control A (cycles through Low, Medium, High, QuietMode), Speed Control B (cycles through Low, QuietMode, High, Medium) and the Power Control (On/Off). -
Page 11: Maintenance
MAINTENANCE CAUTION: NEVER PUT YOUR HAND INTO THE AREA HOUSING THE FAN WHILE THE FAN IS OPERATING. For the optimal level of operation, clean the range hood surface, filter set, and oil containers regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. - Page 12 To Replace Light Bulb CAUTION: HALOGEN LIGHT UNIT MAY BE HOT! WAIT UNTIL UNIT IS COOL. 1) Make sure all control switches are off, and range hood is unplugged. 2) Use a flat head screwdriver to pop out the protective covering as shown in Figure 10. 3) Gently pull out the defective light bulb and discard.
-
Page 13: Specifications
Electronic Control (4 Buttons) – 10-Second Standby Startup 30-Second Delay Shutoff 12V 20W x 4 (IS2336SQ) 35-3/4” x 27” x 7” (IS2342SQ) 41-3/4” x 27” x 7” Two-Piece Adjustable Telescopic Stack 1) Original Kit (Sold Separately): (IS123DC) 11-1/8” x 9-1/8” x (22-5/8”~36-3/8”) (IS123-16DC) 11-1/8”... -
Page 14: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters. ORIGINAL KIT (Sold Separately) MODEL NO. IS123DC 18-1/8” (460) IS123-16DC 9-1/4” (235) IS123-59DC 30-1/4” (770) DUCT COVER 19-1/4” 37-3/8 14-5/8”... - Page 15 RECIRCULATING KIT (Sold Separately) MODEL NO. IS123DCD 18-1/8” (460) IS123-16DCD 9-1/4” (235) IS123-59DCD 30-1/4” (770) DUCT COVER 19-1/4” 37-3/8 14-5/8” (490) (950) (370) 8-1/4” 17-1/2” (210) (445) 29” 59-1/4” 25-5/8” (735) (1505) (650) TELESCOPIC STACK MAX. HT. INTSALLED 22-5/8” 37-1/4” 36-3/8”...
-
Page 16: Parts List
PARTS LIST MODEL NO.: IS2336SQ IS2342SQ KEY NO. DESCRIPTION Power Cord 6” Round Plastic Exhaust Round Head Screw (TS 4 x 6) Hood Roof Hood Casing Transformer Bracket Transformer (Light) Transformer Bracket Screw (3/16” x 3/8”) Halogen Light (12V 20W Max.) Transformer Support (Light) Screw (3/16”... - Page 17 MODEL NO.: IS123DC KEY NO. DESCRIPTION Duct Cover Round Head Screw (3/16” x 3/8”) Telescopic Stack Round Head Screw (3/16” x 3/8”) Duct Cover Screw (3 x 8 mm) Round Head Screw (TS 4 x 6) Filter Set Mesh Filter Safety Screen Oil Container (Round) Safety Screen Screw...
- Page 18 MODEL NO.: IS2336SQ IS2342SQ...
-
Page 19: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: IS2336SQ IS2342SQ... -
Page 20: Disclaimer
DISCLAIMER 1. CAREFULLY INSPECT ALL ITEMS FOR DAMAGES BEFORE ACCEPTING DELIVERY. NOTE ANY DAMAGES ON THE FREIGHT BILL OR EXPRESS RECEIPT. REQUEST NAME AND SIGNATURE OF THE CARRIER’S AGENT AND KEEP COPY TO SUPPORT YOUR CLAIM. Upon acceptance of items, owner assumes responsibility for its safe arrival. Damages should be reported to carrier and a claim filed. -
Page 21: Warranty Certificate
WARRANTY KOBE Range Hoods, Inc. warrants all products manufactured or supplied by it to be free from defects in workmanship and materials. Its obligations pursuant to this warranty are limited to a period of two years from the date of purchase and to the repair or replacement at its option and subject to the terms and conditions stated below, of any component part, which its examination shall disclose to be so defective. -
Page 22: Consequential Damage
KOBE Range Hoods Agent as applicable, for any traveling expenses and any costs of transporting the range hood or... -
Page 23: Product Registration
KOBE Range Hoods Agent or KOBE Range Hoods as applicable. Keep proof of purchase (original invoice) handy for inspection.
