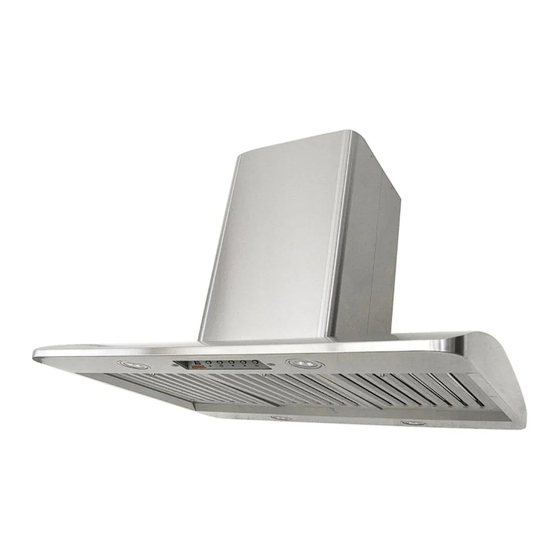

- Page 1 KOBE Brand Range Hood Model No. IS2236SQB-1 (36”) IS2242SQB-1 (42”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 3. Contact your merchant for product replacement due to shipping damages, cosmetic damages or defects. 4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to info@koberangehoods.com NO RETURN, NO REFUND, NO EXCHANGE IF: 1. PRODUCT HAS BEEN INSTALLED 2.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................3 COMPONENTS OF PACKAGE....................5 INSTALLATION .......................... 6 OPERATING INSTRUCTIONS....................10 MAINTENANCE……………………………………………………….……………..………….………12 SPECIFICATIONS ........................13 MEASUREMENTS & DIAGRAMS .....................14 PARTS LIST ..........................15 CIRCUIT DIAGRAM ........................17 TROUBLE SHOOTING ......................18 WARRANTY ..........................19 WARRANTY INFORMATION FORM ..................21 - READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING - A L L W I R I N G M U S T B E D O N E B Y A P R O F E S S I O N A L A N D I N... -
Page 4: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
Knob attached to baffle filter Duct Cover Box (Box 2 of 2 ) BOX 2 {F} Telescopic Stack {G} Two-Piece Duct Cover {H} Screw Package FOR MORE INFORMATION, PLEASE VISIT OUR W EBSITE www.koberangehoods.com OR CONTACT KOBE RANGE HOODS AT (626) 775-8880. -
Page 7: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Preferred Height of Counter Top to Hood Bottom (Recommended 30”... - Page 8 Preparations of Ductwork and Location Figure 1 NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1. A straight, short venting run will allow the hood to perform more efficiently.
-
Page 9: Safety Warning
Figure 3 Wiring to Power Supply SAFETY WARNING RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY A SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL APPLICABLE NATIONAL LOCAL ELECTRICAL CODES. BEFORE CONNECTING WIRES, SWITCH POWER OFF AT SERVICE PANEL LOCK SERVICE... - Page 10 Hood Installation Figure 5 Place four (4 x 8 mm) temporary screws (provided) to hold the duct cover up. Install the hood as shown in Figure 5. Use eight (3/16x3/8 mm) screws (provided) to secure hood to telescopic stack. Make sure to tighten screws securely.
-
Page 11: Operating Instructions
OPERATING INSTRUCTIONS Figure 6 Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. Power Control Press Power Control to turn On/Off the range hood. Speed Control The fan will start on Speed #3. - Page 12 ECO Mode is independent from the Power Control and delay shutoff. ECO Mode can be activated while fan is running or off. Press and hold button until icon briefly appears in the LED Display. While fan is running you can change the speed, use delay shutoff or turn off fan without disabling ECO Mode.
-
Page 13: Maintenance
MAINTENANCE SAFETY WARNING NEVER PUT YOUR HAND INTO AREA HOUSING THE FAN WHILE THE FAN IS OPERATING. Cleaning Hood Surface CAUTION NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. DO NOT USE PAPER TOWEL ON STAINLESS STEEL. For optimal operation, clean range hood and all baffle/spacer/filter/oil tunnel/oil container regularly. *** Regular care will help preserve the appearance of the hood. -
Page 14: Specifications
SPECIFICATIONS MODEL / SIZE IS2236SQB-1 / 36” IS2242SQB-1 / 42” COLOR Commercial Grade Stainless Steel CONSUMPTION / AMPERE 211W / 1.82A VOLTAGE 120V 60Hz NUMBER OF BLOWER DESIGN Seamless / Satin Finish FAN TYPE Double Horizontal Squirrel Cage EXHAUST Top 6" Round CONTROLS Electronic Control (5 Buttons) with LED Display –... -
Page 15: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS All measurements in ( ) are millimeters. All inch measurements are converted from millimeters. Inch measurements are estimated. IS22DC-1 Dimension: 37-3/8” (950) MAX. 22” (559) MIN. IS22DC-16-1 Dimension: 16-1/8” (410) MIN IS22DC-59-1 Dimension: 58-6/8“ (1493) MAX. 33-3/8” (848) MIN 2212019181716151413121114... -
Page 16: Parts List
PARTS LIST MODEL NO.: IS2236SQB-1 IS2242SQB-1 BOX 1of 2 DESCRIPTION MODEL /SIZE PART NO. LED Light (3W) L1-0403-0301 Control Panel L1-0404-6001-A Baffle Filter L1-0214-0122 BOX 2 of 2 DESCRIPTION MODEL /SIZE PART NO. 6” Round Plastic Exhaust (pre-installed) L1-0505-0003 Duct Cover... - Page 17 MODEL NO.: IS2236SQB-1 IS2242SQB-1...
-
Page 18: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: IS2236SQB-1 (36”) IS2242SQB-1 (42”) 2212019181716151413121114... -
Page 19: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the Installation, unit’s power is ON. Use a voltage meter to both motors check the power supply. and lights The wire connection is not secure. Check and tighten wire connection. are not working. -
Page 20: Warranty
TWO-YEAR LIMITED WARRANTY FOR PARTS AND LABOR ON KOBE PREMIUM SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will, at our sole discretion, choose to repair or replace the product free of charge that failed due to manufacturing defects. - Page 21 3. Have the model number 4. Have the serial number 5. Have a description of the nature of any defect in the product or part TO REQUEST WARRANTY SERVICE, PLEASE CONTACT THE KOBE RANGE HOODS SERVICE CENTER: KOBE SERVICE CENTER (USA ONLY)
-
Page 22: Warranty Information Form
1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center (USA ONLY) Toll Free: 1-855-800-KOBE (5623) Email: kobe@adcoservice.com For service in Canada and to report a problem, please contact:... - Page 23 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
