6.1 Installation of recording paper

6.1.1 The device adopts high-speed recording paper, its specification is 110 mm(W)×20 m(L).
6.1.2 The installation method of recording paper is described as below:
(1) Slide the cover switch to the left to open the paper compartment cover. Take out the
paper axis, insert it into the roll paper. The paper side with grids should be faced downwards,
and then install it to proper position in the paper compartment.
(2) Pull out the recording paper from the slot of the paper compartment cover, and close
the cover.
6.1.3 If the recording paper runs out during recording, the device will stop printing automatically,
and the screen will display a prompt of lack of paper, as shown in Figure 6-2.

6.2 Power supply connection

6.2.1 AC
Insert one end of the provided three-core power cord into the device's input socket, and
insert the other end into a three-core power socket that meets the requirements. Ensure that the

Chapter 6 Preparations before Operation

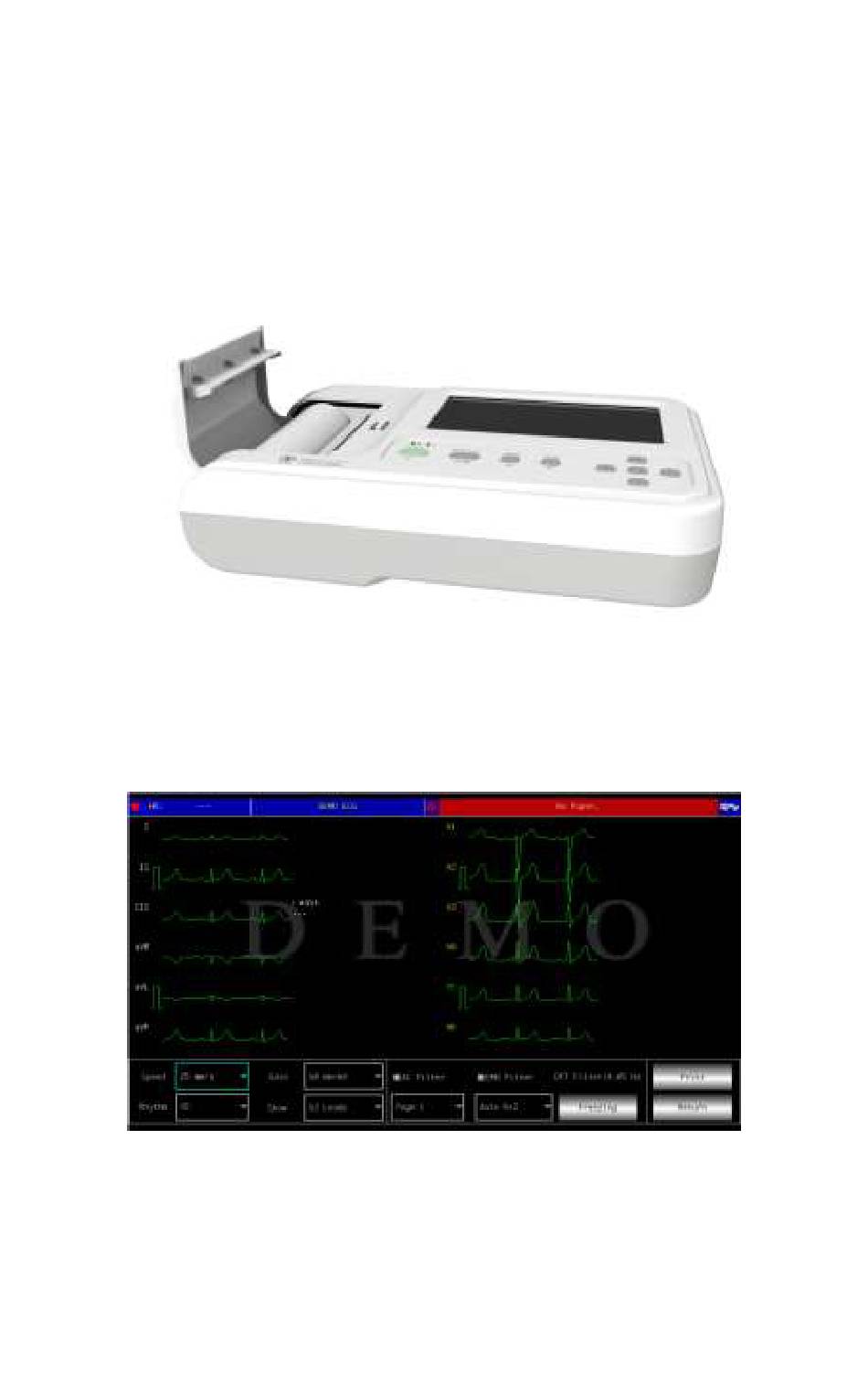

Figure 6-1 Installation of recording paper
Figure 6-2 Lack of paper prompt
