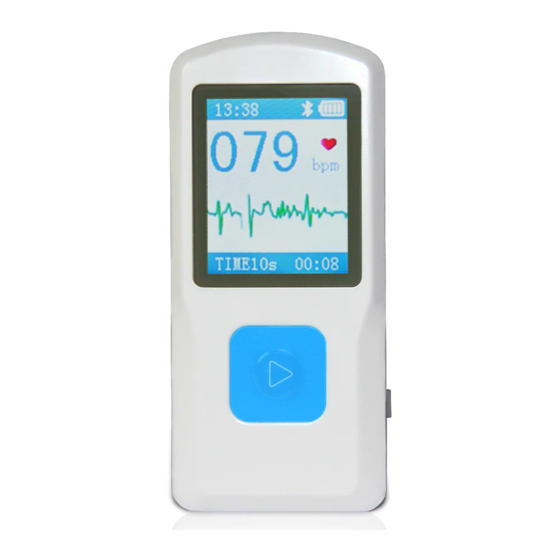

- Page 1 PM10 Portable ECG Monitor Contec Medical Systems Co., Ltd.
-
Page 2: Table Of Contents
Contents Foreword ............................II Chapter 1 Notice ..........................1 1.1 Generic notice ........................1 1.2 Measurement notice ......................1 1.3 Safety notice .......................... 1 1.4 EMC notice ........................... 1 Chapter 2 Introduction ........................2 2.1 Characteristic ........................2 2.2 Application ..........................2 Chapter 3 Primary Technical Orders .................... -
Page 3: Foreword
Foreword Thank you very much for purchasing the PM10 Portable ECG Monitor. This user manual introduces detail product information about its character, requirement, structure, performance, specification, appropriate methods of transportation, installation, usage, operation, repair, maintenance and storage, and safety measures of how to protect the operator and product. -
Page 4: Chapter 1 Notice
Chapter 1 Notice 1.1 Generic notice Do not use the device in locations subject to high temperatures or humidity. Use in the temperature within 5 to 40˚C and humidity within 25% to 80%RH. Do not wash the device with water. Do not use or store the device in the following ambient conditions: ... -
Page 5: Chapter 2 Introduction
This equipment needs to be installed and put into service in accordance with the information provided in the ACCOMPANYING DOCUMENTS Wireless communications equipment can affect and should be kept at least ME EQUIPMENT a distance d away from the equipment. The distance d is calculated by the from the 800 MHz to 2,5 GHz column of Table 5 or Table 6 of IEC MANUFACTURER 60601-1-2:2007. -
Page 6: Chapter 3 Primary Technical Orders
Chapter 3 Primary Technical Orders 3.1 Normal work environment Operation environment Temperature: +5 ~+40 ℃ ℃ Relative humidity: 25%～80% Atmospheric pressure:70kPa～106kPa Power supply: built-in rechargeable lithium battery, voltage: 3.7V Transportation and storage environment Temperature: -40℃～+55℃ ... -
Page 7: Chapter 4 Operation Directions
Chapter 4 Operation Directions 4.1 How to use There are several measurement methods as shown in the following pictures. 4.2 Menu operations Start-up Long press the on/off key for 2 seconds, you will hear a beep sound and see the screen lighting. The device will keep level off when not measuring. - Page 8 Figure 4.1 Pre-sample Interface When the waveform becomes stable, the device will start formal sampling automatically, the color of waveform turns to green, sample time countdown on the bottom right corner begins until finished one time sample. See Figure 4.2: Figure 4.2 Formal Sample Interface The device will enter into case review interface after completed sampling.
-
Page 9: Sync Software Operations
When the device enters into case review interface, it will display the latest sampled case. Click the button to review other cases information. The device can store 99 pieces of cases at most. If reaches to the limit, new stored case will cover the original case, the one that stored at the earliest, piece by piece. -
Page 10: Chapter 5 Trouble Shooting And Solution
Chapter 5 Trouble Shooting and Solution If the device has a problem account, please look up the following sheet for solutions first, if not included in the following issues and you can not solve either, please contact with the customer service. -
Page 11: Transportation And Storage
6.3 Transportation and storage The device transportation adopts general transportation means or follows the contract requirements. Avoid violent shock, vibration, rain and snow splash during the process of transportation. Store the packaged device in an environment with temperature -40℃～+55℃, relative humidity no more than 95%, atmospheric pressure 500hPa～1060hPa, no corrosion gas and well-ventilated room. - Page 12 -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Contec Medical Systems Co., Ltd. Address:No.112 Qinhuang West Street, Economic ＆ Technical Development Zone, Qinhuangdao, Hebei Province, PEOPLE’S REPUBLIC OF CHINA...
