CONTEC MEDICAL SYSTEMS ESA0015 User Manual

CONTEC MEDICAL SYSTEMS CO.,LTD
Product name:
Pulse Oximeter Probe
Product model:
ESA0015,ESC0029,ESA0004,ESA0014,ESA0005,ESA0016,LSA0019
Scope of application:
This product is used to match CONTEC Patient Monitor 、Pulse Oximeter and Electronic sphygmomanometer ,collect and transmit the
SpO signal from patient with continuance and no trauma. It is inapplicable to monitor the weak perfusion moving state and monitor for
2
long, so check the measuring position or change for another position per 4 hours.
Taboo disease:
Don't fix the product on the position with tissue injury. It is inapplicable for the patient or users allergic to PVC、TPU、TPE、ABS plastic.
Product performance:
1) The range of SpO measurement: 70%～100%;
2
Accuracy: 70~100%:±2%; Below 70%: unspecified.
2) The range of pulse measurement: 30～250bpm;
Accuracy: ±2bpm or ±2%(select larger).
3) Optical Sensor:
Red light (wavelength is 650~670nm, 6.65mW)
Infrared (wavelength is 880~910nm, 6.75mW)
Main configuration:
Consisting of plug, cable and probe.
Power supply requirement:
and Electronic sphygmomanometer which are applicable to the requirements of IEC60601-1.
Directions for use:
Note:
This product is type BF applied part;
Sketch map

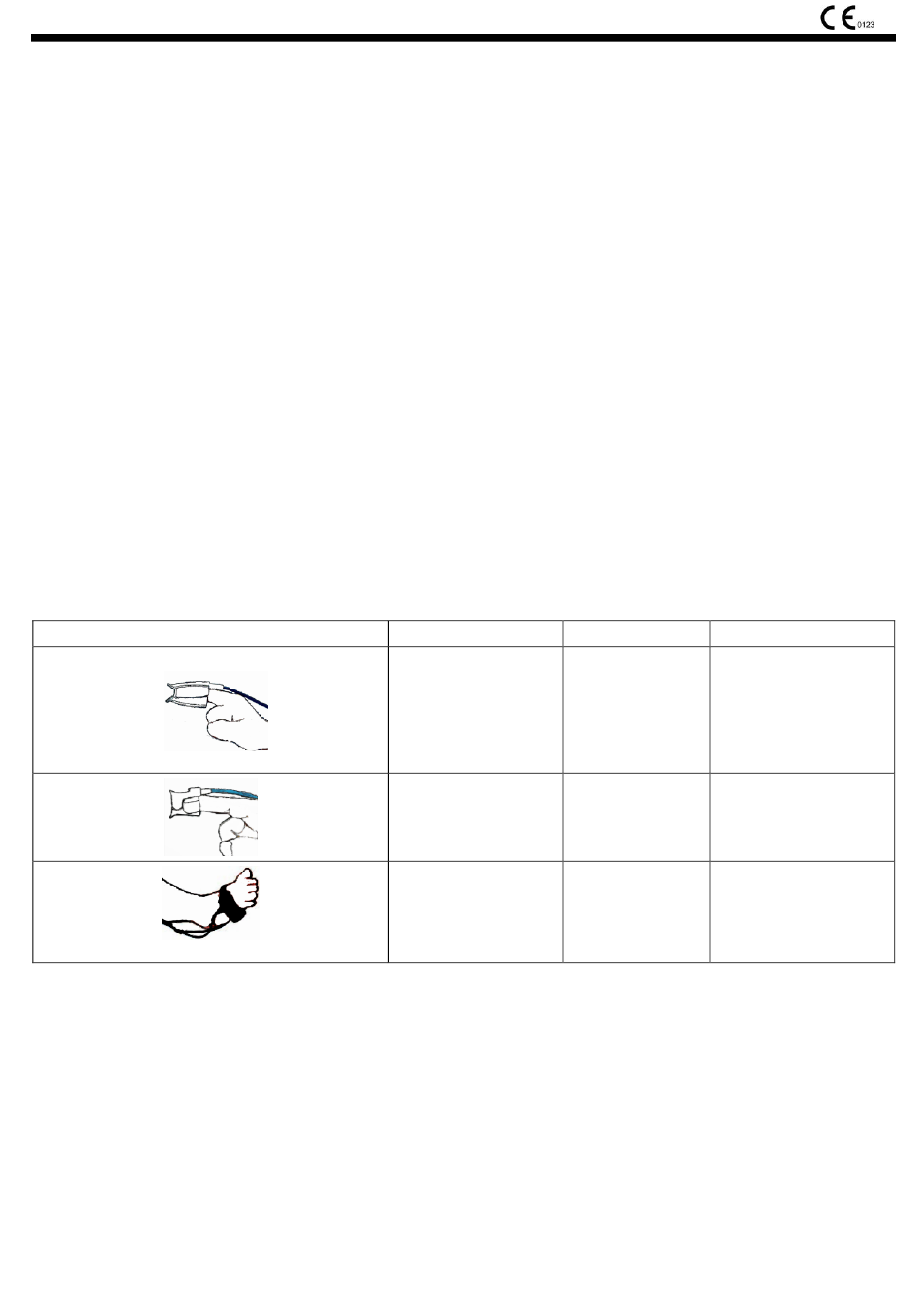

1) As Figure 1, the pulse oximeter probe of different types is applied to different crowds.
2) Select proper probe and put recommendatory placement according to Figure 1.
3) Arrange the cable along the back of hand when place the pulse oximeter probe.
4) Connect Pulse oximeter probe with Pulse oximeter ,Patient Monitor or Electronic sphygmomanometer and check if the operating
procedure accords with the procedure introduced in user manual.
5) Pulse Oximeter probe ESC0029 needs the help of the FST0001 Pulse Oximeter probe extension cable to be connected in to the jack
of the Pulse Oximeter CMS60D,CMS70A or Patient Monitor CMS8000(old model),Pulse Oximeter probe ESC0029 needs the help of the
FST0004 Pulse Oximeter probe extension cable to be connected in to the jack of the Electronic Sphygmomanometer
CONTEC08A,Pulse Oximeter probe ESC0029 needs the help of the FST0002 Pulse Oximeter probe extension cable to be connected in
to the jack of the Patient Monitor PM50. Pulse Oximeter probe ESC0029 needs the help of the FST0014 Pulse Oximeter probe
extension cable to be connected in to the jack of the Patient Monitor CMS8000(new model)
Pulse Oximeter Probe user manual
The special power is supplied by from the equipments of CONTEC Patient Monitor 、Pulse Oximeter
Model explanation
Reusable adult
finger-clip SpO2 probe
(LSA0019,ESA0004,
ESA0005,ESA0014,
ESA0061)
Reusable child finger-clip
SpO2 probe
(ESA0015,ESA0016)
Reusable wrap SpO2
probe(type Y probe)
(ESC0029,ESC0064)
Applied crowds
Weight>40Kg adult
Weight10～40kg
Weight3-10kg
Figure 1
,ESA0061,ESC0064
placement
Recommendatory
placement:forefinger
Recommendatory
child placement:forefinger
Recommendatory
neonate placement:sole of foot
