Delta DRS-24V100W1A Series Technical Data Sheet

TECHNICAL DATASHEET
Sync DIN Rail Power Supply
24V 100W Series / DRS-24V100W1A

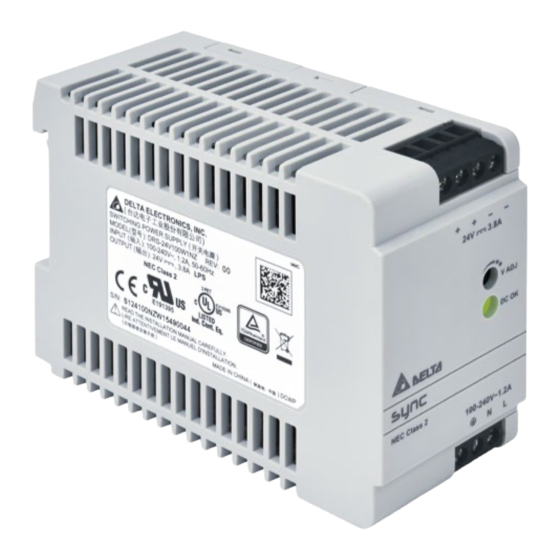

*This picture is for reference to DRS-24V100W series only.
General Description
The ultra-compact and competitively priced Delta Sync DIN Rail DRS-24V100W1 ☐ ☐ power supply is designed for industrial
applications requiring highly reliable power supply that must fit in a small space. The Sync series operates with universal AC input
range and offers full power up to 55°C. The output is adjustable from 24-28 volts for DRS-24V100W1A☐ and 22-24 volts for
DRS-24V100W1N☐, and can support up to 3000 microfarads of load capacitance. A green LED indicates output is present. The
design is certified according to IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 Information Technology Equipment (ITE) and UL 508
Industrial Control Equipment (ICE). The series is also fully compliant with RoHS Directive 2011/65/EU for environmental protection.
NEC Class 2 and Limited Power Source (LPS) approvals are available for DRS-24V100W1N☐.
Model Information
Sync DIN Rail Power Supply
Model Number
DRS-24V100W1A☐
DRS-24V100W1N☐
Model Numbering
DR S –
DIN Rail Product Series
S – Sync Series
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
1
www.DeltaPSU.com (December 2018, Rev. 03)
Input Voltage Range
85-264Vac (120-375Vdc)
24V 100W
Output Voltage 100W series
/ DRS-24V100W1N
□
Highlights & Features
Ultra-compact size and galvanic isolation up to 3.0KVac
•
between input to output and input to ground
Universal AC input voltage and full power from -10°C to
•
+55°C operation
Up to 89.0% efficiency and built-in active PFC
•
• Low earth leakage current < 0.5mA @ 264Vac
Built-in DC OK relay contact option available
•
• Extreme low temperature cold start at -40°C
NEC Class 2 / Limited Power Source (LPS) certified
•
(DRS-24V100W1N☐)
Certified according to IEC/EN/UL 62368-1
•
Safety Standards
CB Certified for worldwide use
Model Number:
Unit Weight:
Dimensions (L x W x D):
Rated Output Voltage
24Vdc
1 N
Single Phase A – Non NEC
Class 2
N – NEC Class 2
□
DRS-24V100W1☐☐
0.325 kg (0.72 lb)
75 x 45 x 100 mm
(2.95 x 1.77 x 3.94 inch)
Rated Output Current
4.0A
3.8A
□
Z – Without DC OK Relay
Contact
R – With DC OK Relay
Contact
