PRE-ASSEMBLY:
•
Please read all instruction before beginning assembly. The illustrations provided allow for easier
assembly when used in conjunction with the assembly instructions.
•
Remove all parts and hardware from box and lay out on a carpeted or scratch-free work surface, as this
will avoid damaging any parts during assembly. The shipping box provides and ideal work surface. Do not
dispose of any contents until assembly is completed to avoid accidentally discarding small parts or
hardware.
•
For your safety and ease, adult assembly by two people is recommended.
•
Save all packing materials until assembly is complete to avoid accidentally discarding smaller parts or
hardware.
•
Use the parts and hardware lists to identify and separate each of the pieces included prior to starting
assembly.
•
Note: DO not fully tighten all bolts until all parts are in place. Failure to follow these instructions may
cause the bolts to misalign during assembly.
•
If using power tools to aid in assembly please use caution. Power tools can damage hardware or split
wood.
PARTS INCLUDED:
A - Headboard (1 pcs) – Box 1
C - Side Rail (2 pcs) – Box 4
HARDWARE ENCLOSED:
F - Wood Screw, 8 x 25 mm (32 pcs) – Box 1
TOOLS REQUIRED:
Phillips Head Screwdriver (Not included)
pottery barn kids

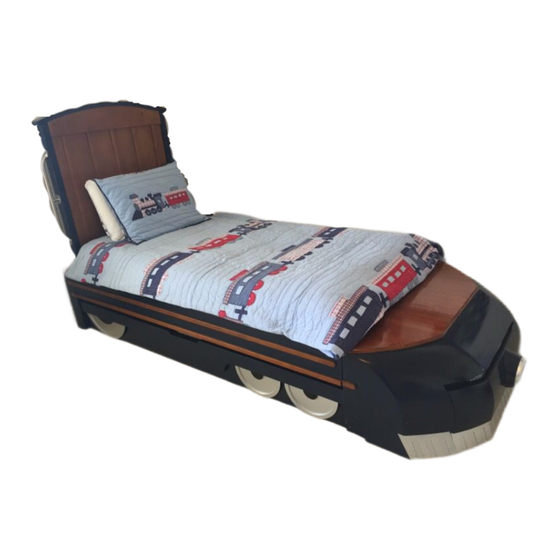

TRAIN ENGINE TWIN BED
B - Footboard (1 pcs) – Box 2
D - Slat Roll (1 pcs) – Box 4
Page 1/3
E - Cart (1 pcs) – Box 3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for pottery barn kids TRAIN ENGINE TWIN BED
Summary of Contents for pottery barn kids TRAIN ENGINE TWIN BED
- Page 1 TRAIN ENGINE TWIN BED PRE-ASSEMBLY: • Please read all instruction before beginning assembly. The illustrations provided allow for easier assembly when used in conjunction with the assembly instructions. • Remove all parts and hardware from box and lay out on a carpeted or scratch-free work surface, as this will avoid damaging any parts during assembly.
- Page 2 ASSEMBLY INSTRUCTIONS: 1. Attach both Side Rails (C) to the Headboard (A) and Footboard (B) by inserting the hooks at two ends of Side Rail (C) into the slots on Headboard (A) and Footboard (B). Press down firmly to secure. Ensure that the decorative molding at one end of side rail is continuous to the decorative molding on the Headboard (A).
- Page 3 3. Unscrew the bolts attaching the wood block at back of the Cart (E), using the Phillips Head Screwdriver. Turn block upside down and reattach to the same holes (Fig. 3). Figure 3 4. Align the Cart (E) with the space under the Footboard (B). Tilt the cart up at front until the wood block (which works as stopper) is lower than the height of the space under Footboard (B).
