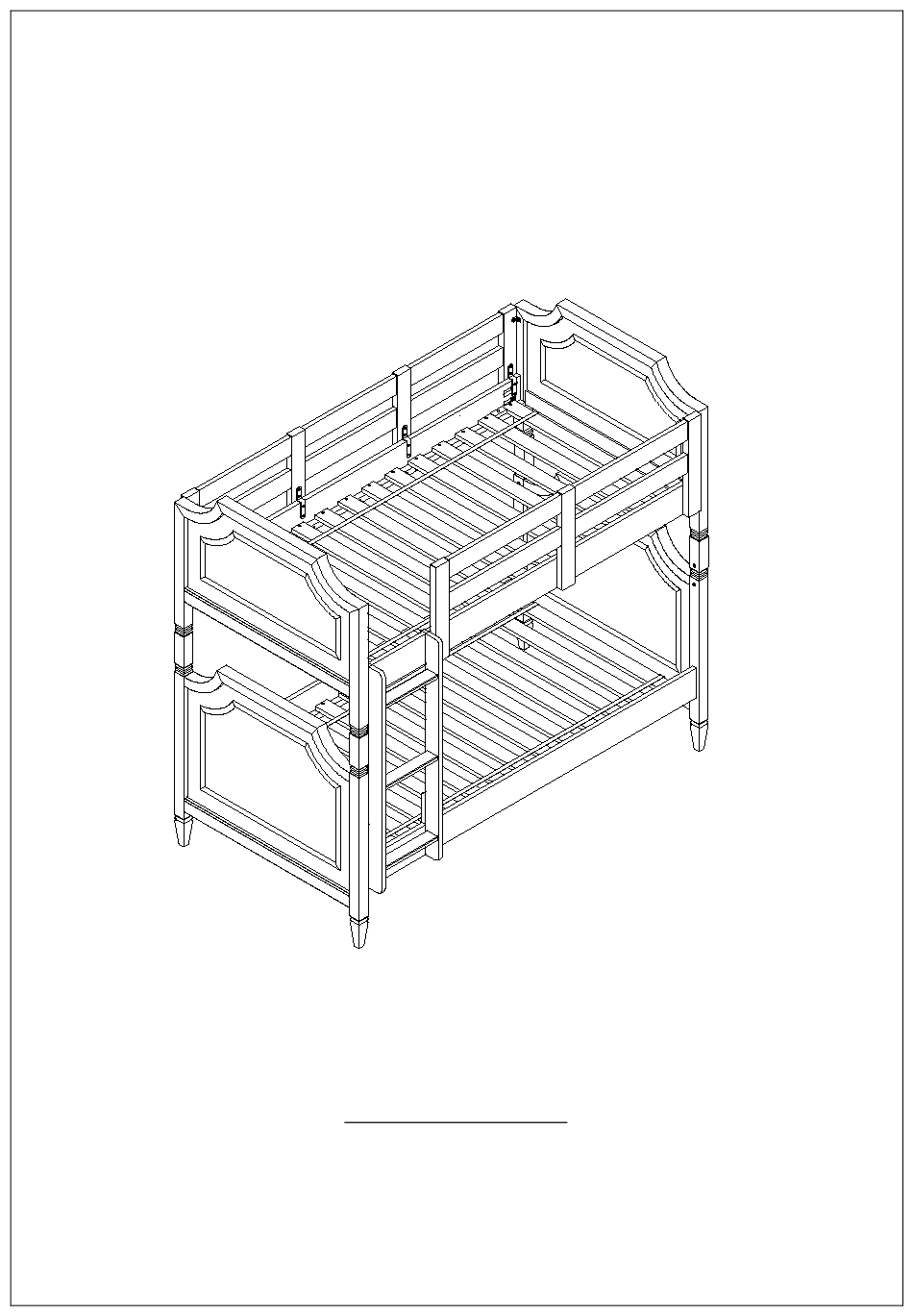

- Page 1 REGENCY BUNK BED TWIN OVER TWIN www.potterybarnkids.com Date: 2014-Mar.-24 Page 1 of 12 Rev: 2014-Mar.-31...
- Page 2 Before each usage or assembly, inspect bunk bed for damaged hardware, loose joints, missing parts or sharp edges. DO NOT use bunk bed if any parts are missing or broken. DO NOT use substitute parts. Contact pottery barn kids for replacement parts and instructional literature if needed.
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS: Please read all instructions carefully before assembling. For your safety, assembly by two or more adults is strongly recommended. Keep instructions for future use. Use only vendor supplied hardware to assemble. Using unauthorized hardware could jeopardize the structural integrity of the item. - Page 4 (M) Flat Washer 5/16”– 16x (K) Bolt 5/16” x 63mm – 16x (L) Spring Washer ( J) Allen Key with Ball Tip - 5/16”– 16x (Q) Flat Head Wood Screw - 25x ( N) Half Moon Washer - 16x (O)Flat Head Wood Screw (P1) Long Connector Bolt 1/4”...
- Page 5 2. Insert (H) onto the cut-outs located on the bottom post of (B) until tighten, as shown below. Must turn the connector pre-drill hole to face up . 3. Attach (C) to (A) by aligning pre-drill holes with wooden dowels as shown below. Tighten the bolts. Date: 2014-Mar.-24 Page 5 of 12 Rev: 2014-Mar.-31...
- Page 6 4. Attach (C) to (B) by aligning pre-drill holes with wooden dowels as shown below. Tighten the bolts. 5. Attach (D) to (C). Make sure the brackets are facing inwards and sit well on top of the side rail, as shown below.
- Page 7 6. Determine the desired location of the ladder opening (use options below). 7. Attach (E) to (C). Make sure the brackets are facing inwards and sit well on top of the side rail and there is no gap in between the guardrail (E) end and the Short End Board (B) as shown below. Date: 2014-Mar.-24 Page 7 of 12 Rev: 2014-Mar.-31...
- Page 8 8. Attach (D) & (E) to (B) as shown below. 9. Extend and place the Slat Roll (F) to bed frames. Secure the slats as shown below. 56 x Date: 2014-Mar.-24 Page 8 of 12 Rev: 2014-Mar.-31...
- Page 9 10. Insert (P1) into pre-drilled holes on the top post of (A). Make sure the groove at the end of connecting Bolts (P1) is facing upwards as seen in the illustration below. 11. With the help of another person, lift the upper bed (with Short End Boards) and place over the bottom bed.
- Page 10 13. Turn (Q) on the bottom of the guardrails in correct locations. Secure guardrails (E &F) and side rails (C) together, as shown below . 14. Attach the Ladder to bunk bed as shown below. Date: 2014-Mar.-24 Page 10 of 12 Rev: 2014-Mar.-31...
- Page 11 15. Assembly now is completed. 16. To convert the bunk bed into two twin beds, use Tall End Boards (A) as head boards and Short End Boards (B) as foot boards. a. Assemble beds following instructions in steps 1 - 4. b.
-
Page 12: Care Instructions
CARE INSTRUCTIONS: • Dust often using a clean, soft, dry, lint-free cloth. • Blot spills immediately, and wipe with a clean, damp cloth. • We do not recommend the use of chemical cleansers, abrasives, or furniture polish on our lacquered finish. •...
