3. DIMENSIONAL DATA

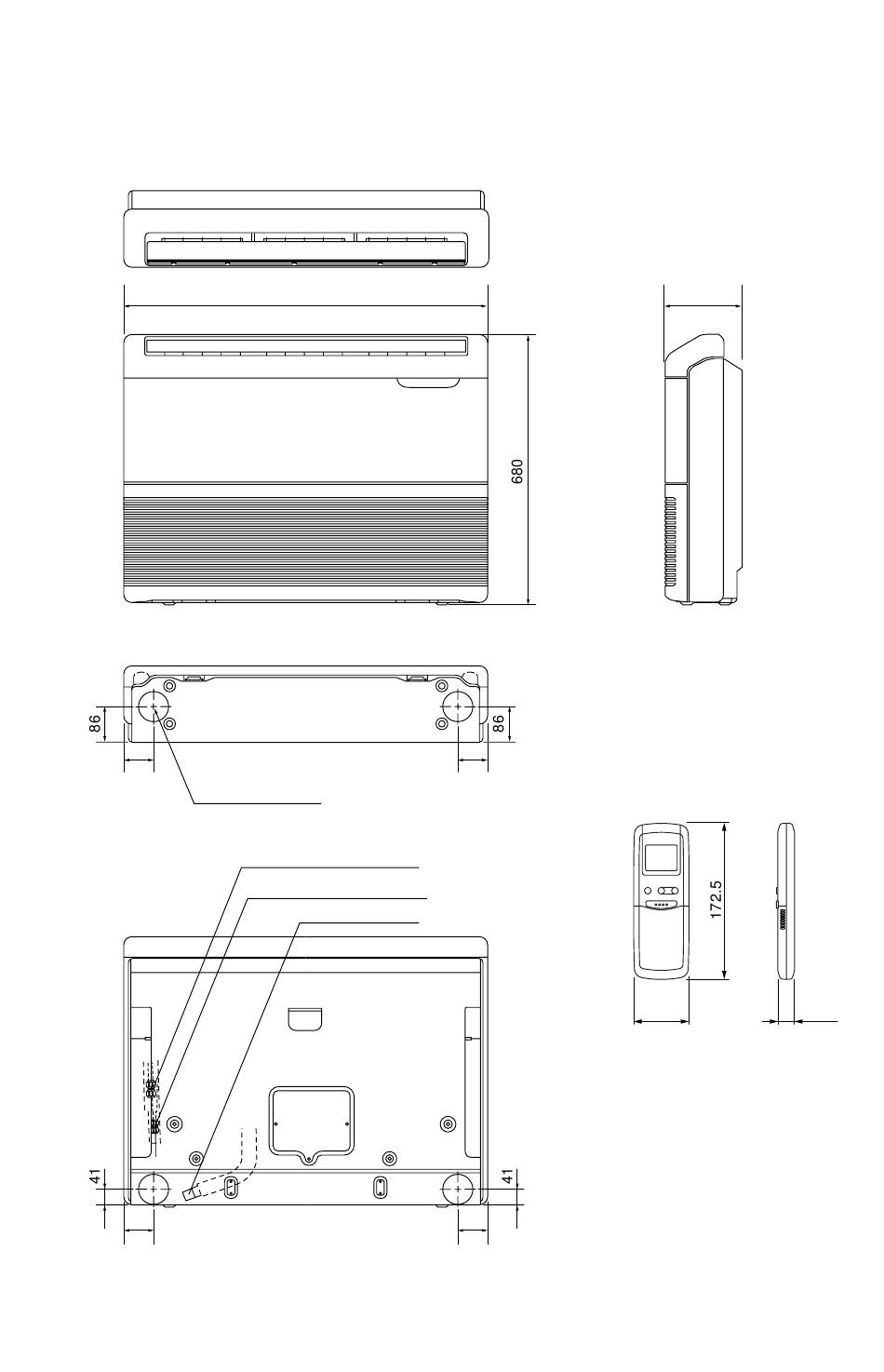

Indoor Unit KPAV128C5TAA
74
74
900
Center of tubing hole
ø75 (4 places)
Wide tube ø12.7 (1/2")
Narrow tube ø6.35 (1/4")
Drain hose ø26
74
74
15
190
Remote control unit
61 18.5
Unit : mm
