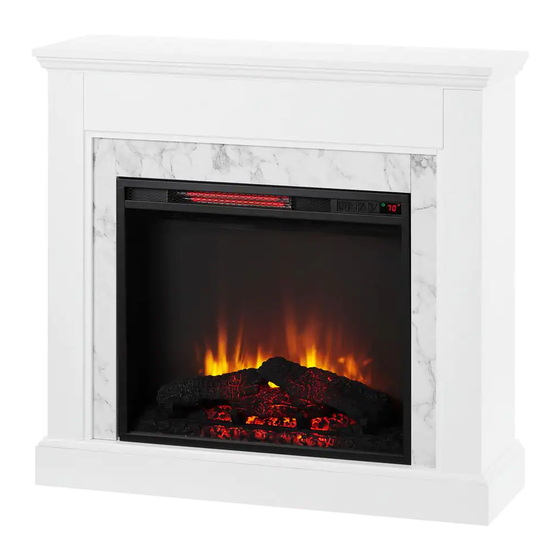

36 in infrared electric fireplace in white oak

Advertisement

Item #1006148231
Model #1418FM-23-251

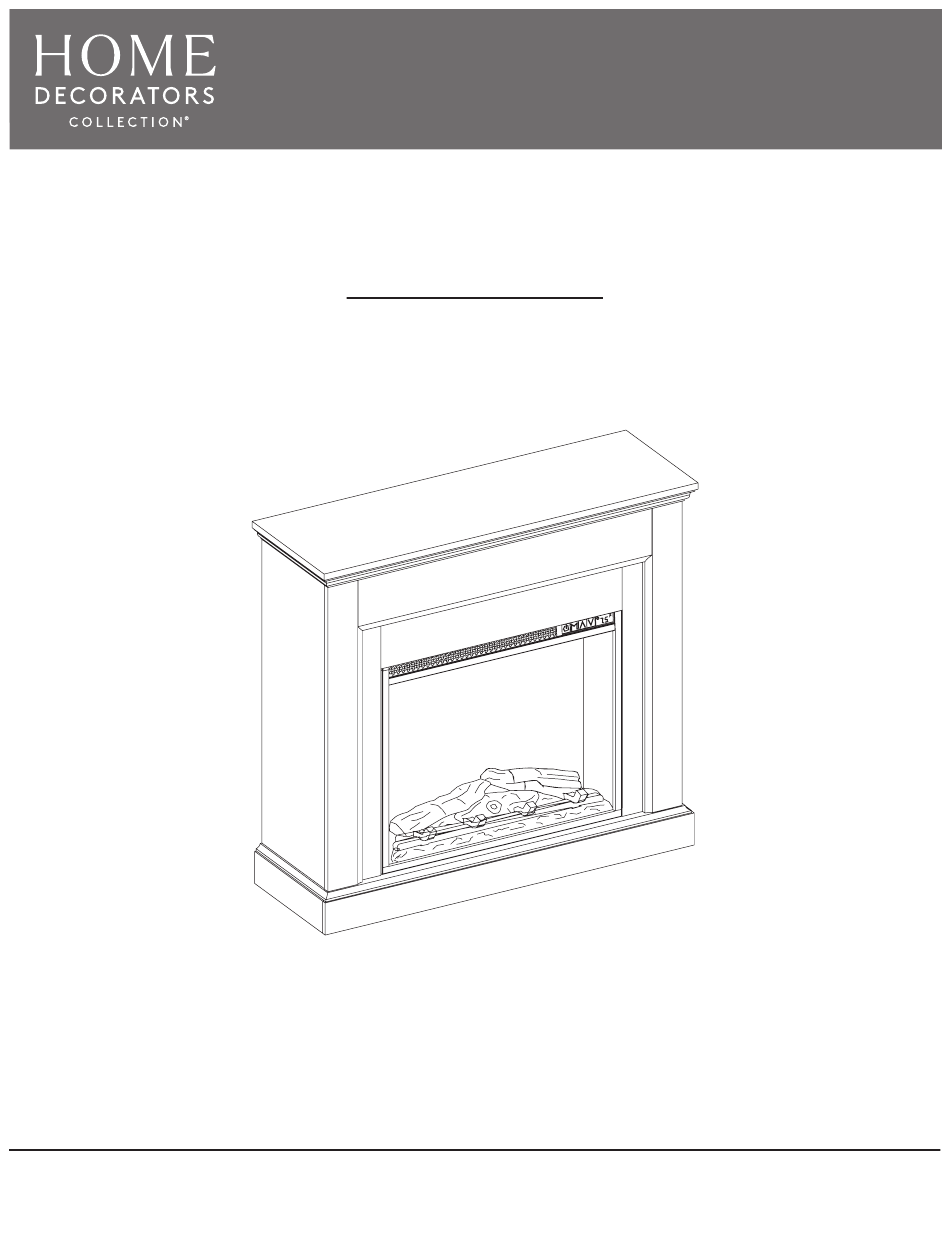

ASSEMBLY INSTRUCTIONS
NORTHGLENN 36 IN INFRARED
ELECTRIC FIREPLACE IN WHITE OAK
Questions, problems, missing parts?
Before returning to the store, call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fireplace console. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NORTHGLENN 1418FM-23-25 and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Decorators Collection NORTHGLENN 1418FM-23-25

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fireplace console. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents ........2 Hardware Included .
  • Page 3 Safety Information (continued) WARNING: □ This appliance is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. Keep combustible material, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet from this appliance and keep them away from the sides and rear. □...
  • Page 4 Safety Information (continued) Electrical Connection □ A 15-Amp, 120-volt, 60 Hz circuit with a properly grounded outlet is required. Preferably, the fireplace will be on a dedicated circuit as other appliances on the same circuit may cause the circuit breaker to trip or the fuse to blow when the heater is in operation. The unit comes standard with 6-ft.
  • Page 5: Warranty

    Warranty This item is warrantied by the manufacturer to be free of material and manufacturing defects for the time period of one year from the purchase date. This is subject to the following limitations and conditions: This mantel must be installed and operated in accordance with the installation instructions that were provided with the product. Unauthorized repairs or alterations, accidents, willful abuse and misuse of the product will nullify this warranty.
  • Page 6: Pre-Installation

    Pre-Installation PLANNING INSTALLATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Assembly Time: 50 minutes. Tools Required for Assembly (not included): Phillips screwdriver.
  • Page 7: Package Contents

    Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Left Side Panel Left Front Panel Center Front Panel Right Front Panel Right Side Panel Base Insert Remote Control HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance.
  • Page 8: Installation

    Installation Install front panel □ Set center front panel (D) down on a non-scratch surface. Insert four wooden dowels (AA) into holes on left and right sides of center front panel (D). Align the holes on center front panel (D) with the corresponding holes on left front panel (C) and right front panel (E), securing with two short screws (BB).
  • Page 9 Installation (continued) Install left and right panel □ Insert four wooden dowels (AA) into the holes on the back of the left front panel (C) and right front panel (E). Attach the left side panel (B) to the left front panel (C), secure with screwing three locknuts (CC) by Phillips screwdriver. Repeat for the right side panel (F).
  • Page 10 Installation (continued) Screw the connecting rod □ Screw seven connecting rods (DD) into designated plastic bushings on the back of the top (A). Fully tighten with a Phillips screwdriver. Install top □ Insert four wooden dowels (AA) into the top outer holes on both side panels (B, F). Attach top (A), securing from underneath with screwing seven locknuts (CC) by Phillips screwdriver.
  • Page 11 Installation (continued) Remove insert brackets □ From behind the assembly, remove the preassembled insert brackets from the middle area. Save brackets and screws for future use. Install insert NOTE: Before proceeding to the next step, with the help of another person, move the mantel close to the final desired location. DO NOT plug insert (H) into power outlet yet.
  • Page 12 Installation (continued) Re-install insert brackets □ Re-attach insert brackets with previously removed screws to secure insert (H). Assembly is now complete. With the help of another person, move the assembly to the final desired location. Once in final position, you may plug the insert (H) into the power outlet. WARNING: You must install the tip restraint hardware to help prevent any accidents or damage to the unit.
  • Page 13: Operating Instructions

    Operating Instructions Control Panel Remote Control To use the remote control, first remove the plastic tab by gently pulling it out of remote control (I). Power Button □ Pressing the power button will turn ON or OFF the unit. □ When the unit is in ON mode, the power icon indicator light will be shown green and turn ON the heating level and flame brightness effect with the last settings.
  • Page 14 Operating Instructions (continued) Temperature Mode □ The temperature mode controls the heater’s thermostat setting. □ Use Up arrow button or Down arrow button to scroll through the pre-set temperature setting. The temperature setting range is 65ºF (18ºC) to 90ºF (32ºC), HI (High) and OF (OFF). □...
  • Page 15: Care And Maintenance

    Care and Maintenance □ □ □ □ Tips for using touch-up pen (FF): For scratches, stroke in direction of scratch. For worn areas, stroke in the direction of wood grain. Rub excess colorant promptly with a soft cloth. □ lubrication. However, periodic cleaning/vacuuming of the fan/heater is recommended. Replacing the Remote Control Battery When the remote control (I) stops operating or its range seems reduced, it is time to replace the battery.
  • Page 16: Troubleshooting

    Troubleshooting Problem Possible cause Solution Error E1 displayed on The overheat sensor has been Unplug unit, wait 5-10 minutes, then the sensor will reset itself. Plug the control panel. engaged. unit back in and turn on the heater. If the problem persists, call customer service.
  • Page 17: Service Parts

    Service Parts MODEL TYPE Wooden Dowel (X 18) Short Screw (X 2) Locknut (X 13) Connecting Rod (X 13) Long Screw (X 6) Touch-up Pen (X 1) Part Description Part # 1418FM-23-251-TOP Left Side Panel 1418FM-23-251-LEFT SIDE PANEL Left Front Panel 1418FM-23-251-LEFT FRONT PANEL Center Panel 1418FM-23-251-CENTER PANEL...
  • Page 18 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
