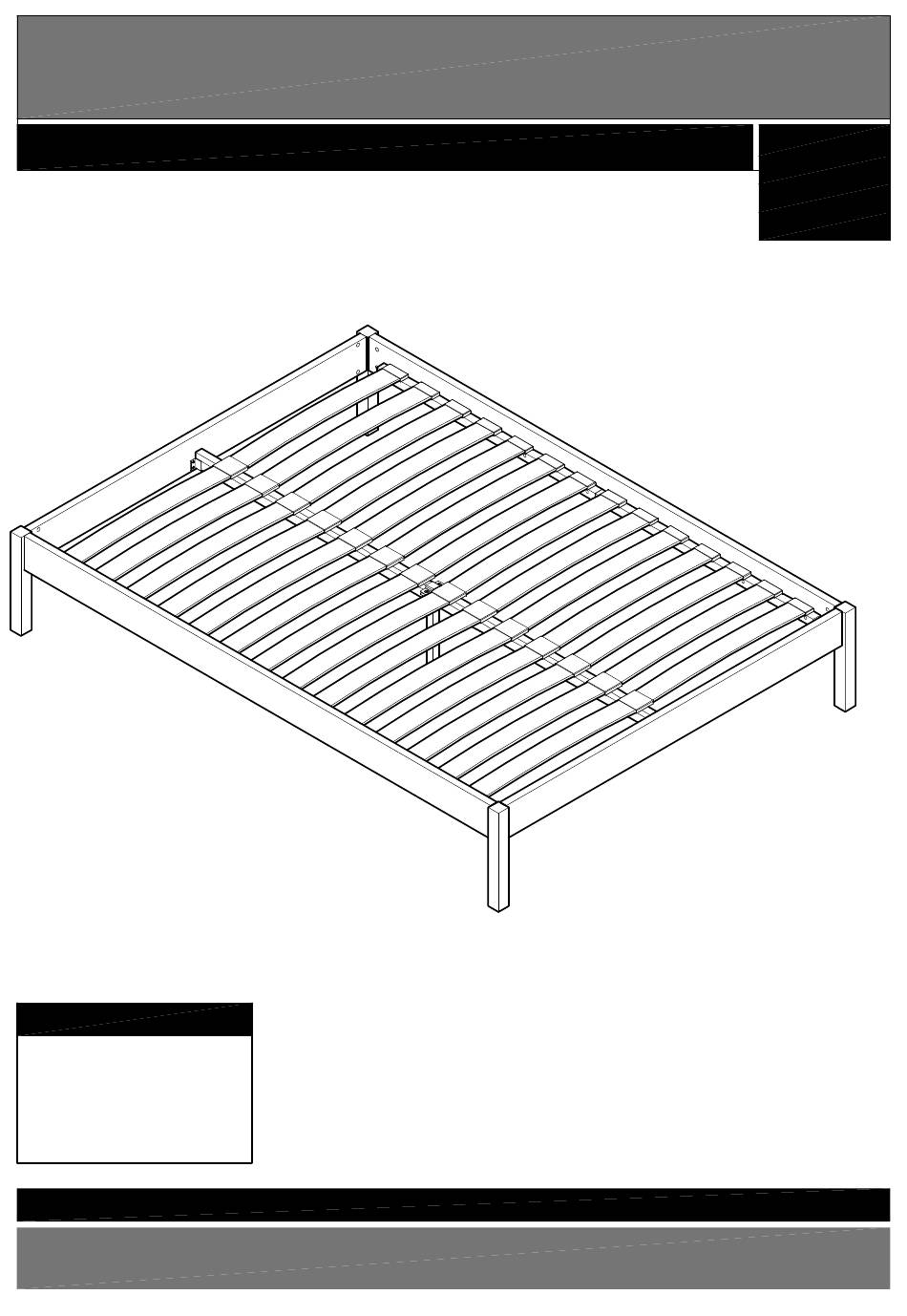

Java - Double/ King Bed Frame
156/5465
Assembly Instructions
- Please keep for future reference
149/2057
156/6763
156/6770
Dimensions
Width - 146.6/160.1cm
Depth - 200.4/209.4cm
Height - 35cm
Important
- Please read these instructions fully before starting assembly.
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
IW-17-3235-575/576/595/596-0
Issue 1 - 30/06/12
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Java 156/5465
Summary of Contents for Argos Java 156/5465
- Page 1 Java - Double/ King Bed Frame 156/5465 Assembly Instructions - Please keep for future reference 149/2057 156/6763 156/6770 Dimensions Width - 146.6/160.1cm Depth - 200.4/209.4cm Height - 35cm Important - Please read these instructions fully before starting assembly. If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 IW-17-3235-575/576/595/596-0 Issue 1 - 30/06/12...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly. • Check you have all the • Do not stand or put weight • We do not on the product, this could recommend the components and tools listed on pages 2 and 3.
- Page 3 If you have damaged or missing Components - Panels components, call the Customer Helpline: 08456 400800 Please check you have all the panels listed below Headend (138.6/152.1 x 12cm) Footend (138.6/152.1 x 12cm) Side rail x 2 (191.8/200.8 x 12cm) Metal center rail (192.5/201.5 x 2.6cm) Sprung slats x 28...
- Page 4 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. Bracket x 2 17mm Flat head screw x 8 Steel dowel x 14 Allen key x 1 Center plastic sleeve x 14...
- Page 5 Assembly Instructions Step 1 Fitting dowels Screw 14 steel dowels into head posts and foot posts Note: Insert steel dowels as far as shown. Ensure the direction of the holes on fittings are facing correctly as per Inset fitting diagram. Use a screwdriver to turn fitting clockwise to fix.
- Page 6 Assembly Instructions Step 3 Attaching headend, footend and legs. Position left & right head posts onto headend Note: Ensure steel dowels are aligned correctly with mating holes to avoid damage. Fix headend head posts using 4 grub screws as shown. Use screwdriver to turn fitting clockwise to fix.
- Page 7 Assembly Instructions Step 4 Attaching side rails. Two people are needed here. Position both side rails onto headend footend Note: Ensure steel dowels are aligned correctly with mating holes to avoid damage and the label "THIS SIDE UP" is facing upwards on both side rails.
- Page 8 Assembly Instructions Step 6 Attaching center rail. Place center rail into brackets headend and footend as shown. Turn base of adjustable center leg to adjust the height of center rail until the center rail rests firmly in the brackets.
- Page 9 Assembly Instructions Step 7 Assemble sprung slats. Fix 28 end plastic sleeves to one end of 28 sprung slats shown. Fix 14 center plastic sleeves to every pair of sprung slats shown. Step 8 Attaching sprung slats. Snap plastic dowels on end plastic sleeves and center plastic sleeves...
