5.2.4.

Antenna Switching Menu

rd
If you have 3 party external antenna switch connected to your amplifier ( i.e. MicroHAM TEN
SWITCH), you need to configure the assignment of each port to a specific band /or antenna.

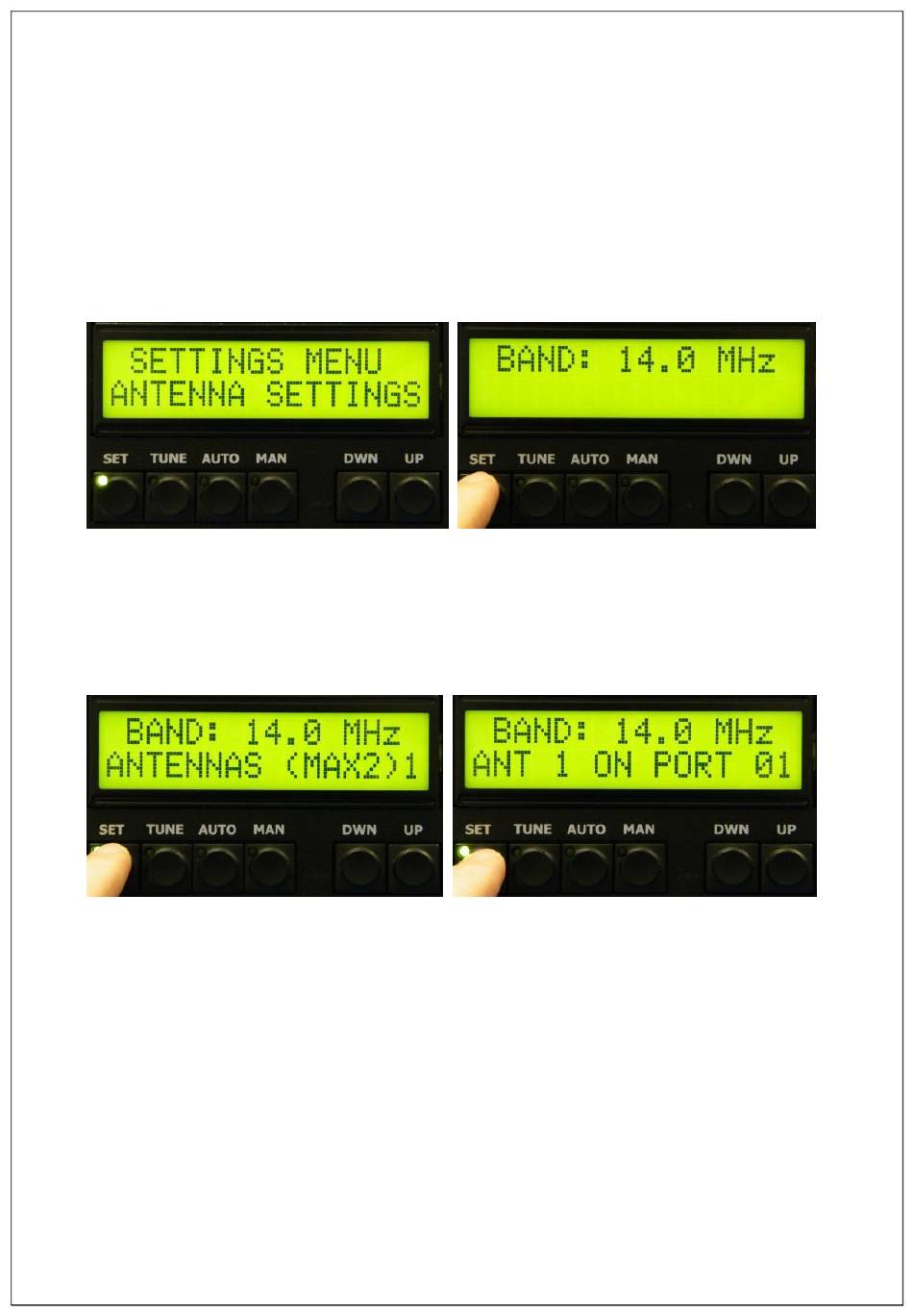

By pressing SET and scrolling to ANTENNA SETTINGS and confirming by SET you get current
band and its antenna selection. By scrolling UP / DWN you can select BAND which you want
to assign to current ANTENNA selected.
Then select how many antennas you want per current band (1 or 2) and always confirm your
selection by pressing SET. The by scrolling UP / DWN you assign which PORT is used on your
external antennas switch for this particular antennas. (ANT 1 ON PORT 01).
Shall you decide to use 2 antennas for this band then after confirming that with SET
configuration continue to the other antenna selection / port selection.
To finish Antennas switch configuration you can either press AUTO or MAN.
5.2.5. Bandpass filter switching
Switching of external band pass filters is automatic and needs to follow pin out of BPF
connector. For more details see Example of connection with antenna switch and BPF
in Appendix.
