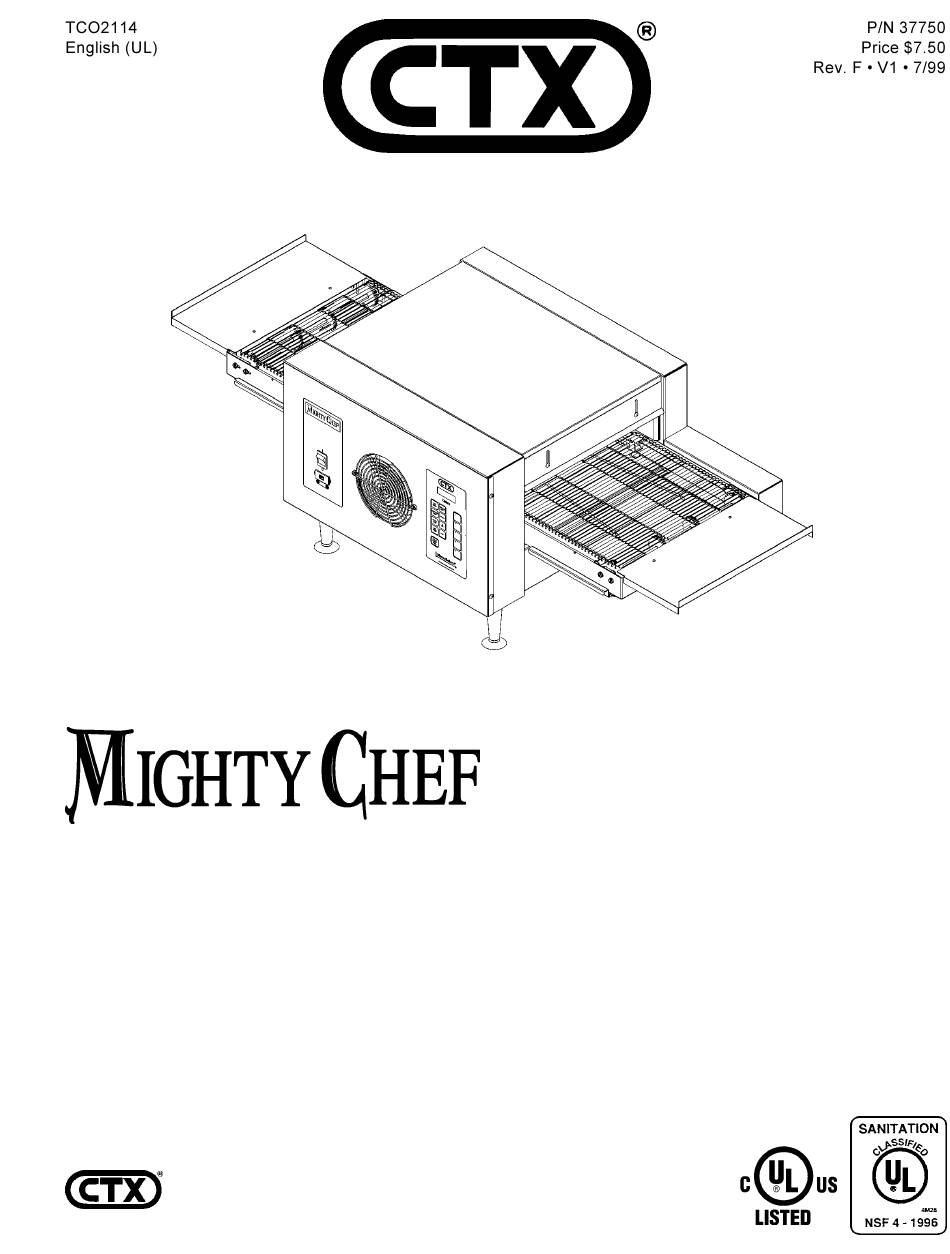

Middleby CTX Mighty Chef TCO2114 Owner's Operating & Installation Manual

Conveyor oven
Hide thumbs Also See for CTX Mighty Chef TCO2114:

Advertisement

Quick Links

TM
Conveyor Oven
Model TCO2114
OWNER'S OPERATING
& INSTALLATION
MANUAL
© 1999 CTX, A Middleby Company
is a registered trademark of CTX, A Middleby Company. All rights reserved.
Middleby Cooking Systems Group • 1400 Toastmaster Drive • Elgin, IL 60120 • (847)741-3300 • FAX (847)741-4406

Advertisement

loading
Need help?

Need help?

Do you have a question about the CTX Mighty Chef TCO2114 and is the answer not in the manual?

Questions and answers

Summary of Contents for Middleby CTX Mighty Chef TCO2114

  • Page 1 OWNER'S OPERATING & INSTALLATION MANUAL © 1999 CTX, A Middleby Company is a registered trademark of CTX, A Middleby Company. All rights reserved. Middleby Cooking Systems Group • 1400 Toastmaster Drive • Elgin, IL 60120 • (847)741-3300 • FAX (847)741-4406...
  • Page 2 BEFORE INSTALLING OR SERVICING THIS EQUIPMENT. SECTION 3 WARNING OPERATION ..........3 CAUTION IMPORTANT IMPORTANT SECTION 4 ELECTRICAL WIRING DIAGRAMS ....9 RETAIN THIS MANUAL FOR FUTURE REFERENCE © 1999 CTX, A Middleby Company Middleby Corp 24-Hour Service Hotline 1-800-238-8444 www.middleby.com...
  • Page 3: Description

    SECTION 1 - DESCRIPTION A. FEATURES B. COMPONENT LOCATION AND FUNCTION Operation Figure 1 - Component location 7. Adjustable draft curtains (2) 6. Conveyor 1. Power On/Off (I/O) switch 2. Conveyor reversing switch 5. Conveyor end trays (2) 8. Fan 3.
  • Page 4: Installation

    SECTION 2 - INSTALLATION IMPORTANT Figure 3 - End Tray Installation Position tray A. INSTALLATION OPTIONS AND KIT AVAILABILITY Stacking more that three ovens is not permitted Fasten in place with screw B. ASSEMBLY Repeat for second tray C. ELECTRICAL CONNECTION Figure 2 - Leg Installation IMPORTANT WARNING...
  • Page 5: Operation

    SECTION 3 - OPERATION A. LOCATION FUNCTION are u CONTROLS Power On/Off (I/O) switch MenuSelect controller ® Conveyor reversing switch CAUTION B. DAILY STARTUP PROCEDURE IMPORTANT Figure 4 - Controls 1. MenuSelect controller ® 2. Power On/Off (I/O) switch 3. Con- veyor reversing switch...
  • Page 6 C. OPERATION Perform the procedure in Section E, , on Page 5. At least one menu selection MUST be programmed before the oven can be operated. Perform the procedure in Section E, , BUT press instead (in Steps 3 and 8). Instead of permanently overwriting the menu selection, the new set temperature and cook time settings are only temporary.
  • Page 7 E. PROGRAMMING PRESET MENU SELECTIONS IMPORTANT Press and hold (or any other preset menu key) until appears in the display. The number in the display (“1” is shown above) will match the menu key that was pressed (1-5). Press . The current top set temperature appears in the display. Press as necessary to change the displayed temperature.
  • Page 8 F. COOKING TIME AND TEMPERATURE G. DRAFT CURTAIN ADJUSTMENT GUIDELINES IMPORTANT SET TEMPERATURE COOK WARNING PRODUCT upper lower TIME Bagel Bites 400°F/204°C 420°F/216°C 5:00 Biscuits 250°F/121°C 335°F/168°C 6:45 CAUTION - HOT Bread Sticks (retherm) 425°F/218°C 475°F/246°C 4:30 Cheese Sticks (frozen) 460°F/238°C 445°F/229°C 6:00...
  • Page 9 H. DAILY CLEANING WARNING IMPORTANT CAUTION IMPORTANT CAUTION - HOT Figure 6 Figure 7 End crumb trays and fan grill Center crumb tray placement Clean fan grill using stiff nylon brush Tray fits BETWEEN Conveyor conveyor belt belt and support tab. Support DO NOT insert tray...
  • Page 10 I. DISPLAY MESSAGES AND ERROR CODES DISPLAY SHOWS PROBLEM ACTION - - - - E-00 E-01 E-02 E-04 CAUTION - HOT E-35 E-36 E-40...
  • Page 11: Electrical Wiring Diagrams

    SECTION 4 - ELECTRICAL WIRING DIAGRAMS Wiring Diagram, Models TCO21140063 (208V) and TCO21140066 (240V), 1-Phase TOP HEATER CC FUSES (2) 5.0A/600V BOTTOM HEATER CONTACTOR TFRMR TFRMR MOTOR PICKUP ASSY 230Vp 230Vp TSTAT 115Vs 12Vs N.C. FUSE 0.25A TSTAT FUSE 0.5A SSR 1 N.O.
  • Page 12 CTX, A Middleby Company. All rights reserved. Middleby Corp 24-Hour Service Hotline 1-800-238-8444 www.middleby.com...
